LNA pre-amplifier and 1090 Mhz ADS-B filter AirNav RadarBox View larger
LNA pre-amplifier and 1090 Mhz ADS-B filter AirNav RadarBox
  • LNA pre-amplifier and 1090 Mhz ADS-B filter AirNav RadarBox
  • LNA pre-amplifier and 1090 Mhz ADS-B filter AirNav RadarBox

RadarBox by AirNav

AIRNAV-ADSB-FILTRE2-1053

New product

USA

LNA pre-amplifier and 1090 Mhz ADS-B filter AirNav RadarBox

rating No review at the moment

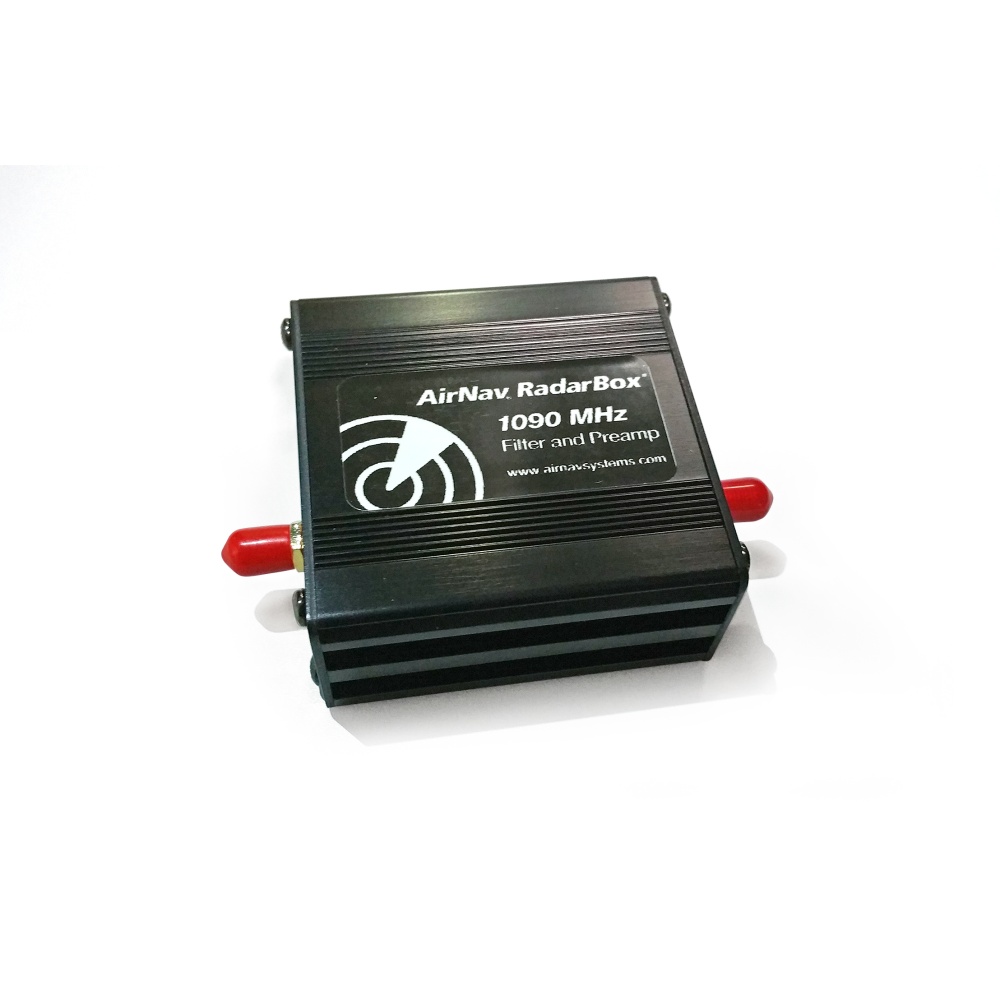

This 1090 Mhz ADS-B LNA pre-amplifier and SAW filter is designed to improve reception performance and increase the number of ADS-B messages received and decoding. It incorporates an LNA and a SAW 1090Mhz bandpass filter. With female SMA connector.

The ADSB booster from AirNav - Radarbox comes with its 220V power supply, power cable and an SMA male / MCX Male pigtail.

It is compatible with any SDR and RTL-SDR receiver.

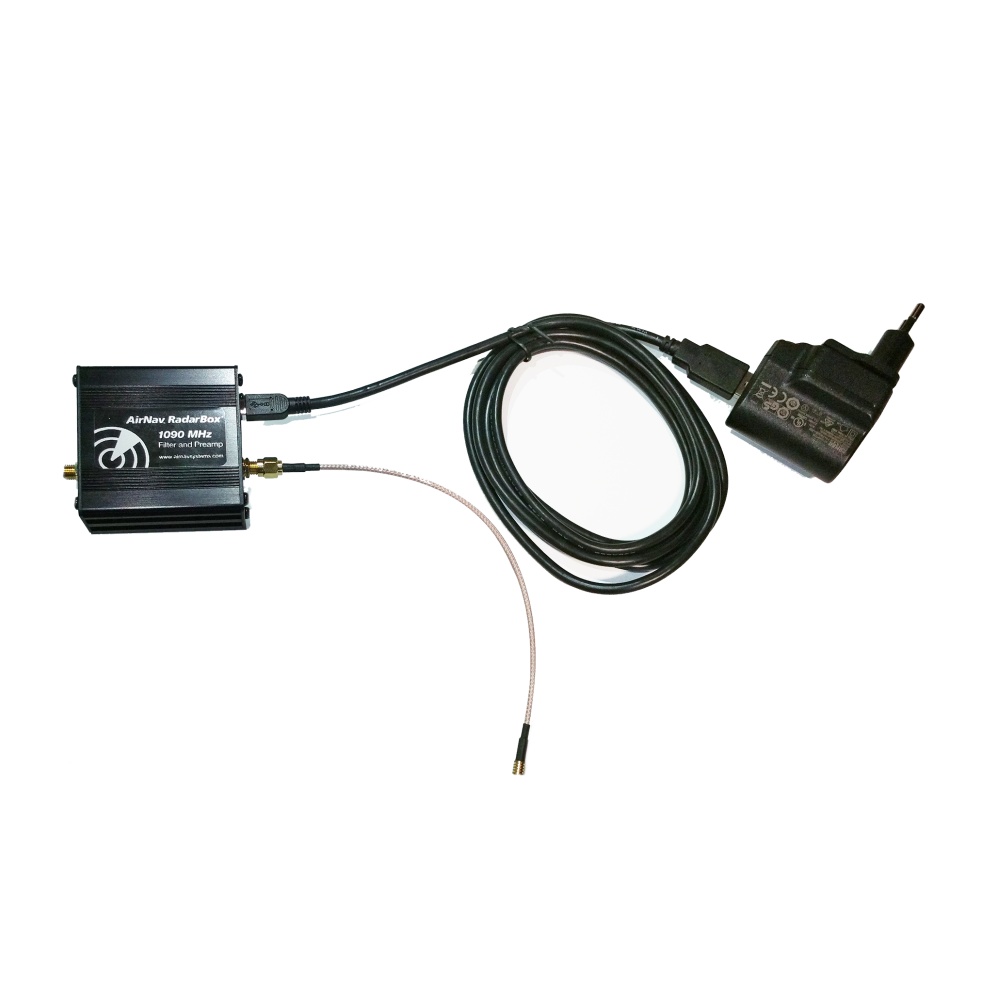

Supplied with: 1 LNA / SAW ADS-B filter box AirNav RadarBox, 1 power cable, 1 220V power supply with EU US & UK plug, and 1 SMA male / MCX Male pigtail cable.

More details

This material is no longer available

Data sheet

ADS-B booster amplifier specifications

Frequency: 1090MHz
Gain: 25 dB at 1090 MHz
Noise figure: ~ 1 dB
Out-of-band attenuation: +60 dB
Power supplied
Housing: Aluminum
CE and FCC certified
2 years warranty
