New XIEGU X6200 Transceiver SDR HF ham radio + 50MHz + FT8 + RX VHF AM View larger

Xiegu

XIEGU-SDR-HF-X6200-2722

New product

China

XIEGU X6200 Transceiver SDR HF ham radio + 50MHz + FT8 + RX VHF AM

rating No review at the moment

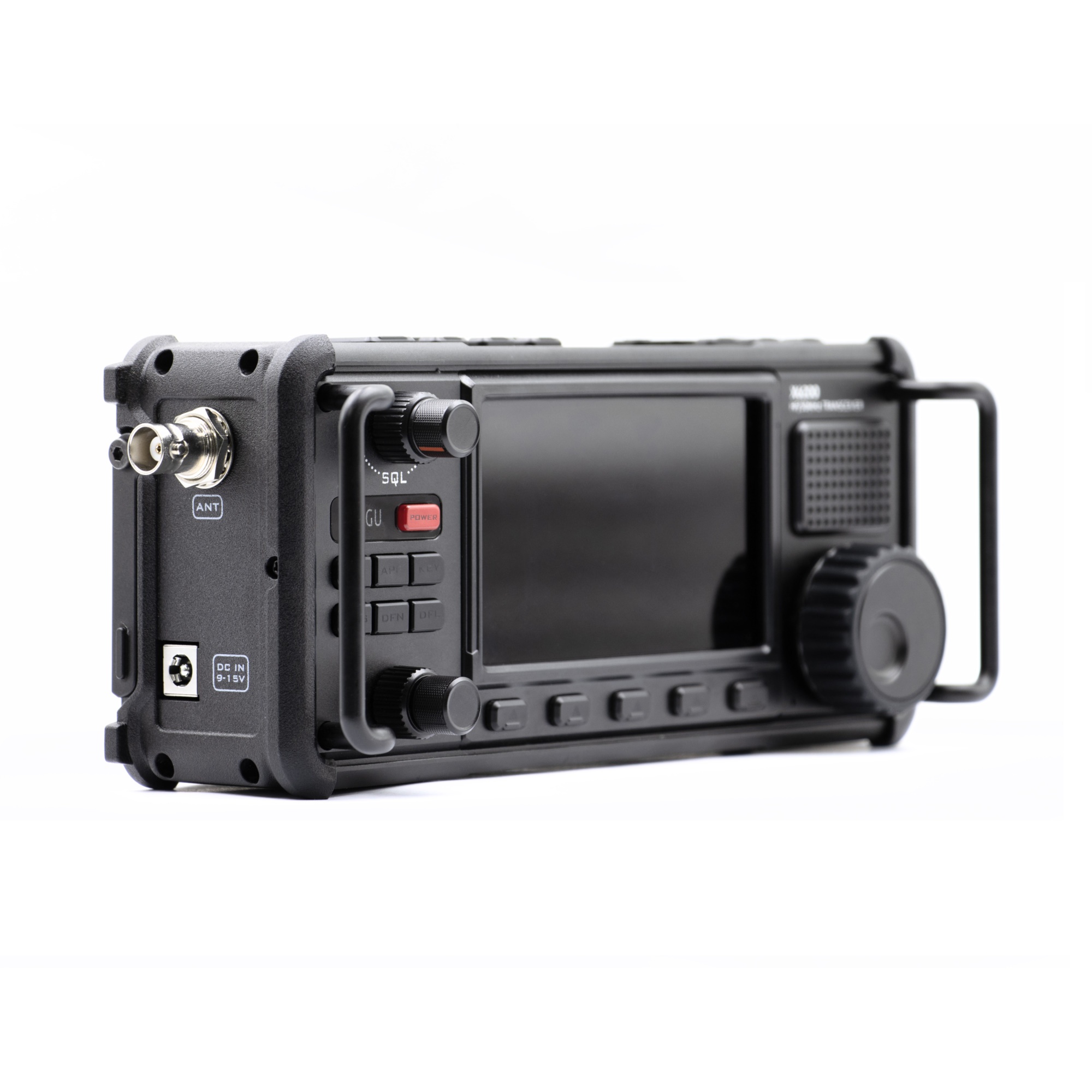

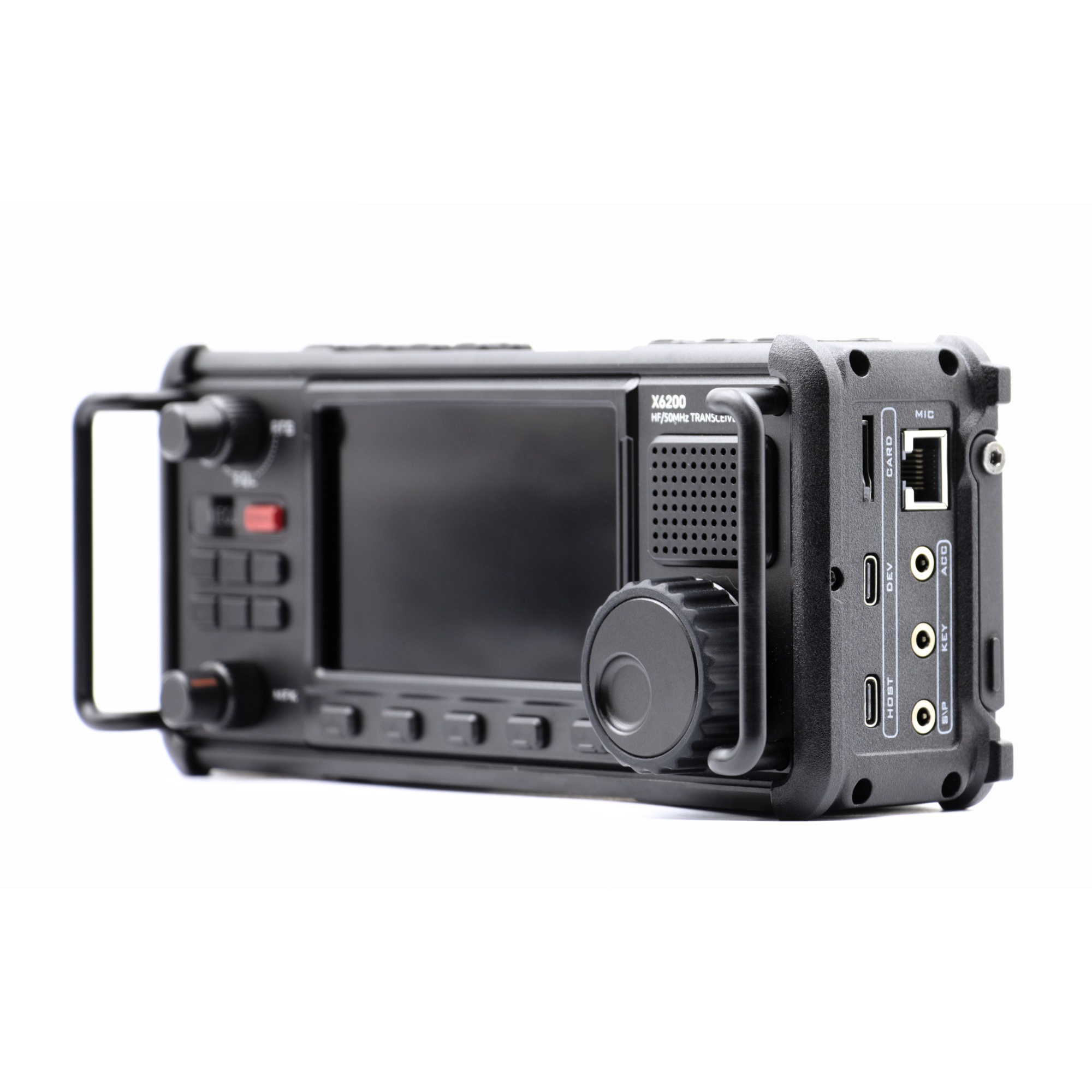

The latest Xiegu X6200 is a portable HF SDR transceiver for transmitting and receiving amateur radio frequencies from 0 to 30MHz as well as the 50 MHz band (6m), in all modes (AM/FM/SSB), with integrated sound card for digital modes, integrated FT8 mode decoding, FT8 transmission in wireless mode, automatic antenna tuner, recorder and call launcher, integrated Bluetooth and WIFI.

It offers a maximum power output of 8W (on 12V power supply) and 5W on battery (included and detachable), as well as the ability to listen to the 108-136MHz aviation band in AM as well as the 88-108MHz FM radio band in wide FM (WFM).

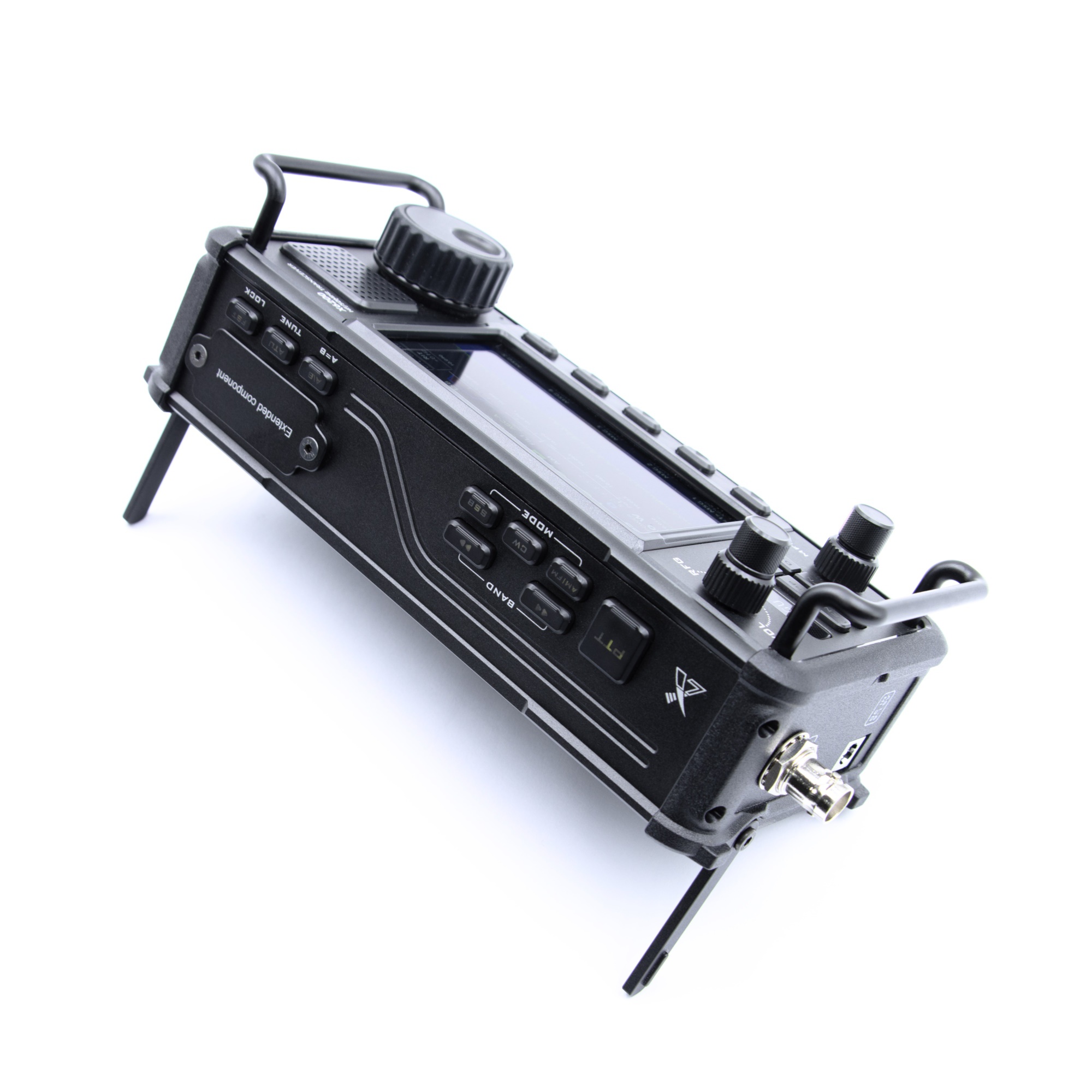

The new design allows modules to be added in the future to extend the X6200's capabilities, as well as adding new features via firmware updates.

Supplied with : Xiegu X6200, 12V power cable, backlit handheld microphone, USB cable, French user manual.

More details

749,17 € tax excl.

Pre-order, available June 2024

Availability date: 2024-06-03

Download

Manual X6200 (FR)

X6200 manual in French. 2.15M

Manual X6200 (EN)

X6200 manual in English. 2.11M

Data sheet

  • TX bands HF/50MHz all modes (AM/FM/SSB)
  • Digital and digital mode compatible (FT8, RTTY decoding)
  • Transmitter power: 8W with external 12V power supply, 5W on internal battery (included and detachable)

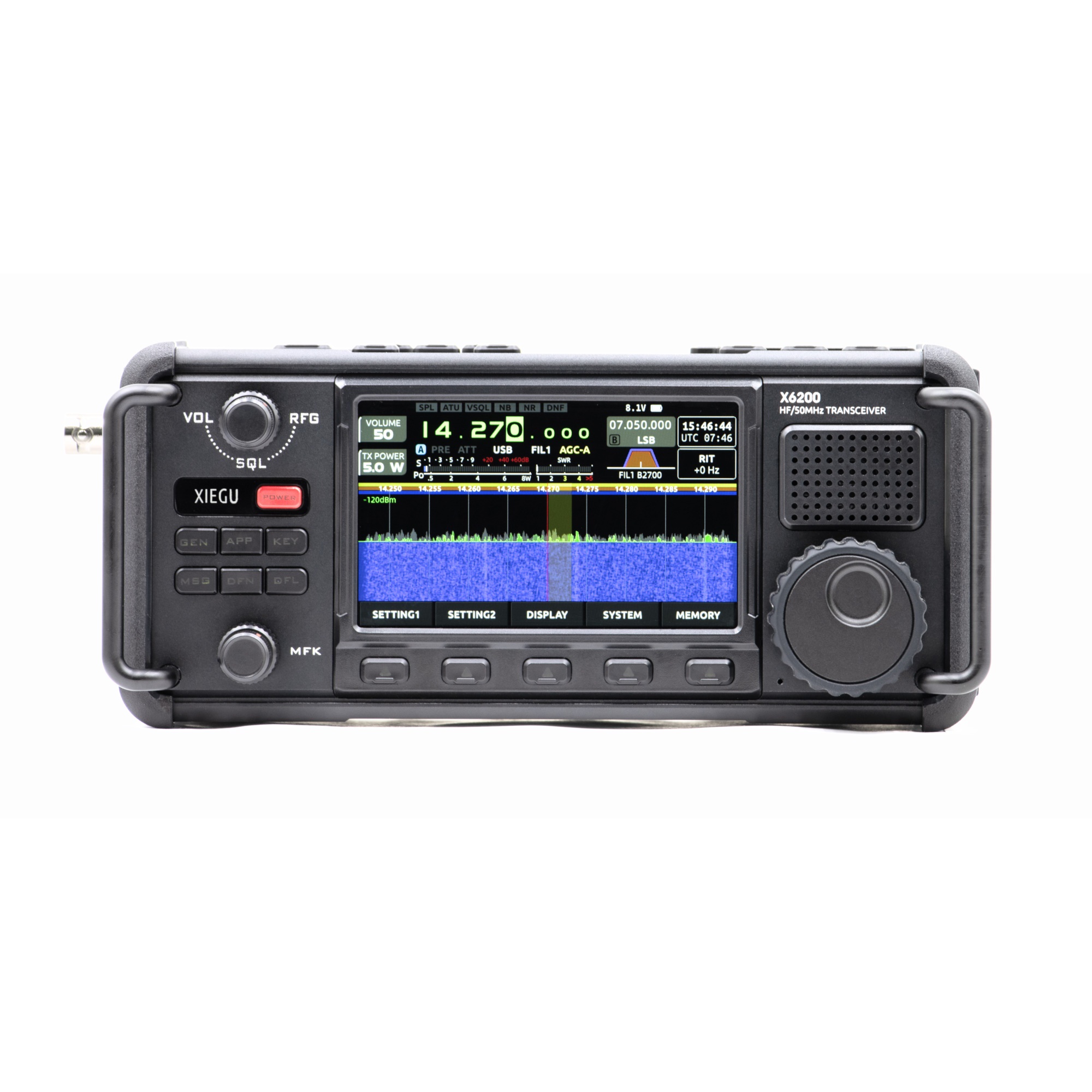

  • High-resolution 4″ colour display, 800*480 pixel resolution
  • Built-in rechargeable lithium battery, 7.4V/3.5 Ah
  • Built-in automatic antenna tuner
  • SWR measurement and scanning
  • Voice memory
  • CW memory
  • Bluetooth and WiFi support (native for audio, wireless keyboard and mouse)
  • Integrated sound card

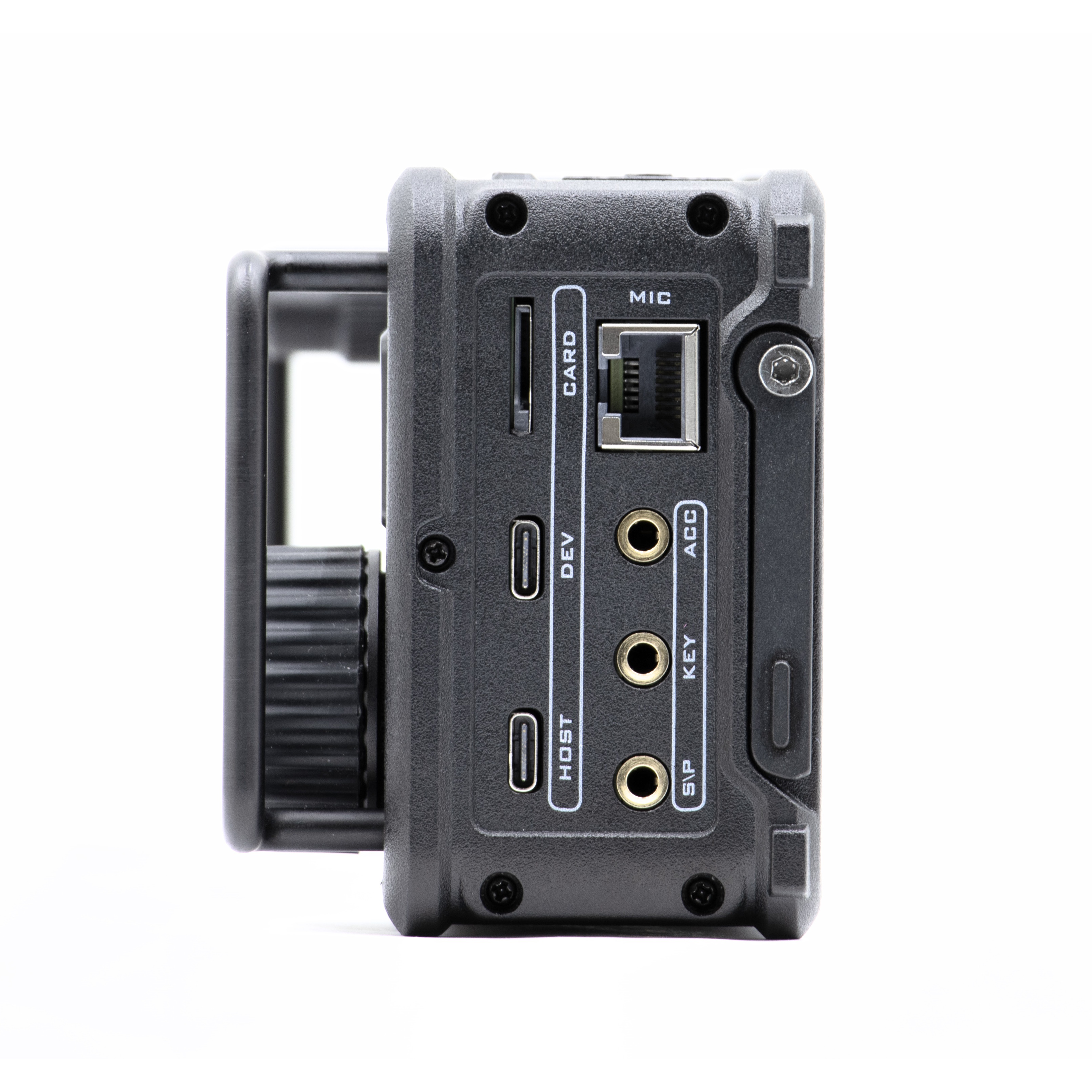

  • Second USB host port for mouse, keyboard and storage devices
  • High-stability TCXO internal clock source
  • Modulation modes: USB/LSB (J3E), CW (A1A), FM (F3E),RTTY (F1B), AM (A3E)
  • Minimum frequency step: 1 Hz
  • External supply voltage: 9-15V (DC)
  • Antenna impedance: 50 Ohms
  • Antenna connector: BNC female
  • Operating temperature: 0°C to +50°C
  • Current consumption : RX: <330mA, TX: <3.5A
  • Dimensions: 200 x 89 x 51 mm
  • Weight: 880 g

Receiver specifications

  • Frequency coverage :
  • 0.5-30MHz
  • 50-54MHz
  • 88-108MHz (FM broadcast)
  • 108-136MHz (AM aviation band)
  • ADC: 24 bit
  • Audio output: 0.4W (4 Ohm ≥10% THD)

Transmitter specifications

  • Transmit frequencies :
  • 1.8~2.0MHz
  • 3.5~3.9MHz
  • 5.3515~5.3665MHz
  • 7.0~7.2MHz
  • 10.1~10.15MHz
  • 14.0~14.35MHz
  • 18.068~18.168MHz
  • 21.0~21.45MHz
  • 24.89~24.99MHz
  • 28.0~29.7MHz
  • 50~54MHz
  • Maximum power : 8W (SSB/CW/FM) @13.8VDC
  • 2.5W (AM carrier) @13.8VDC
  • Output power, internal battery: 5W
  • 1.5W (AM carrier) @ battery

Tuner specifications

  • Antenna tuner tuning impedance range: 20 to 175 ohms
  • Antenna tuner initial tuning time : ≥ 10s
  • Antenna tuner memory recall time ≥ 0.1s
