NanoVNA V2 VNA analyzer 50KHz to 3000MHz N or SMA plug + metal case

rating No review at the moment

The NanoVNA V2 SAA2N is an antenna and vector network (VNA) analyzer that covers the HF, VHF and UHF bands from 50 KHz to 3000 MHz, with N or SMA type connector and a metal case.

It measures the parameters S11 and S21, the standing wave ratio SWR of an antenna, the Smith and phase diagram.

Available in 2 versions:

SAA2N with a 4" (10.1cm) TFT touch screen, N plug connectors and a 3000 mAh battery included.
S-A-A-2 with 2.8" (7.1cm) TFT touch screen, SMA plug connectors and 2000 mAh battery included.

Windows and Linux compatible. Comes with firmware v2.2.

Supplied with: 1 NanoVNA V2 SAA2 (N) or SAA-2 (SMA) in a metal case, 1 battery included, 1 N or SMA plug calibration kit depending on the model (1 dummy load 50Ω, 1 open circuit, 1 short circuit ), 1 Micro-USB power cable, 2 x 50cm N Male RG142 cables, 1 N Male - N female adapter, 1 storage case. English manual to download below.

This material is no longer available and replaced by NanoVNA-F V2.

More details

This material is no longer available

  • 2.8" screen (7.1cm) with SMA
  • 4" screen (10.1cm) with N

Download

Drivers USB SAA2 Win

Drivers USB for SAA2 & SAA2N and Windows 20.65M

Firmware SAA2

Firmwares for S-A-A-2 version with SMA connector 119.7k

Firmware SAA2N

Firmwares for version S-A-A-2N with connector N 126.8k

SAA-2N calibration guide (EN)

How to calibrate the SAA-2N with the included calibration kit. 4.32M

User guide VNA SAA2 (EN)

Nano-VNA V2 SAA2 user's guide and manual in english by NC4BR. 2.59M

NanoVNA guide to start (EN)

Guide v1.6 to configuring and using a NanoVNA, in English by Martin Svaco, 9A2JK. 3.59M

Data sheet

Frequency range: 50KHz to 3000MHz
Measuring and dynamic range: 70dB (50KHz-1500MHz), 60dB (1500-3000MHz)
Frequency accuracy: 0.5ppm
Frequency tolerance: 2ppm
Screen: 2.8" or 4" inch TFT - 320*480
USB interface: Micro-USB
Case: Metal
SWR measurement: <1.1
Input connector: N female on the 4"screen version or SMA female on the 2.8" screen version
Power supply: USB 5V or via the included battery (3000mAh)
Maximum consumption: 300mA in operation and 1A in load
Number of scan points: 201 from nanovna or 1024 via USB
Firmware version installed: v2.2
Software and compatible OS: NanoVNQ-QT and Nanovna-saver for Windows 7, 8, 10 and Linux
English user guide by OwOComm on Github : https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf
2 years warranty

Example of POTY antenna SWR measurement by F4EGG

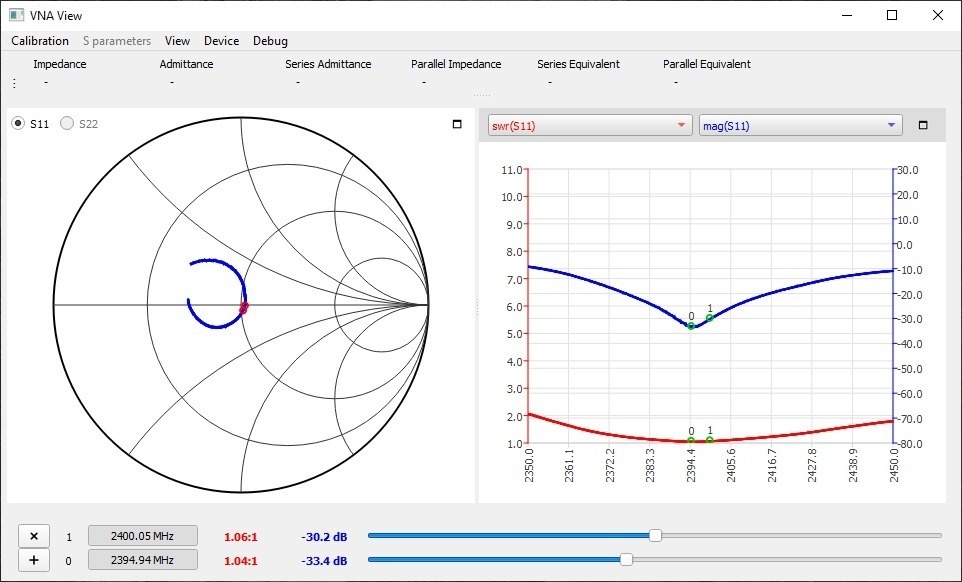

Curve of the SWR of the POTY antenna in 2.4 Ghz, measured with the Nanovna V2 SAA2N, at the QO-100 station of Thierry de F4EGG:

SWR POTY 2.4 Ghz nanovna V2

qo 100 station F4EGG
