Log Periodic Antenna 400-1000MHz 6dBi WA5JVB Kent Electronics SDR Antennas WA5-ANT-LOG-LP400-411 View larger
Kent Electronics

WA5-ANT-LOG-LP400-411

New product

USA

Log Periodic Antenna 400-1000MHz 6dBi WA5JVB

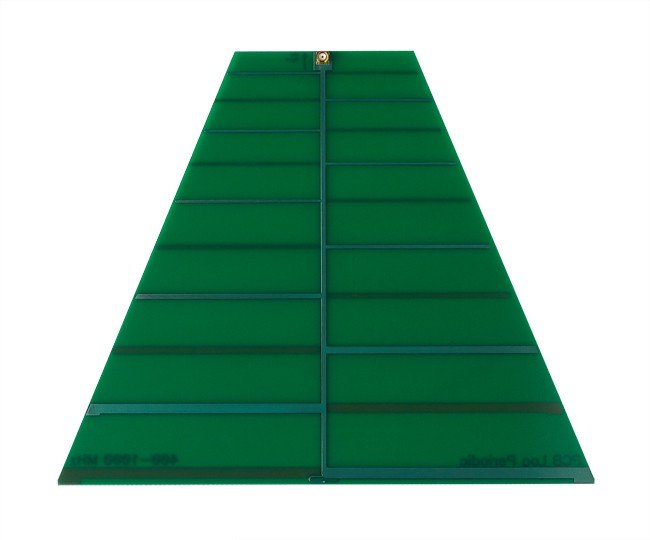

PCB Log periodic antenna, for frequency from 400 to 1000MHz with a gain of 6 dBi.

Supplied without SMA connector (soldering) or via a coaxial cable soldered directly to the PCB.

Frequencies: 400-1000 MHz
Type: Periodic Log
Gain: 6dBi
Impedance: 50 ohms
Amateur radio design: WA5VJB
Dimensions: 28.7cm (base width) x 23.2cm (height) x 10.6cm (top width)
Weight: 160 grams

59,00 € tax incl.

In stock
