RigExpert MATCH Scalable antenna and cable analyser up to 500 MHz

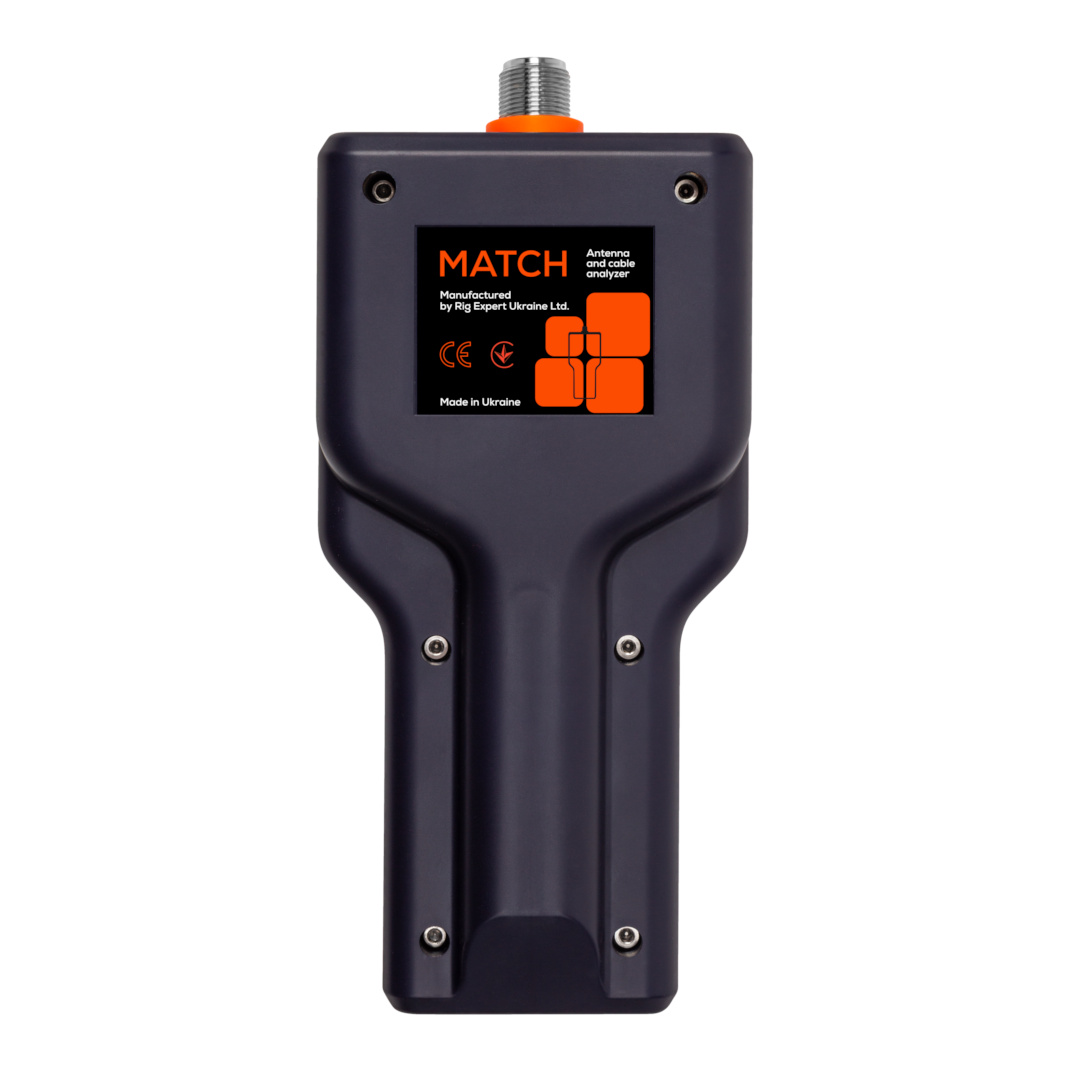

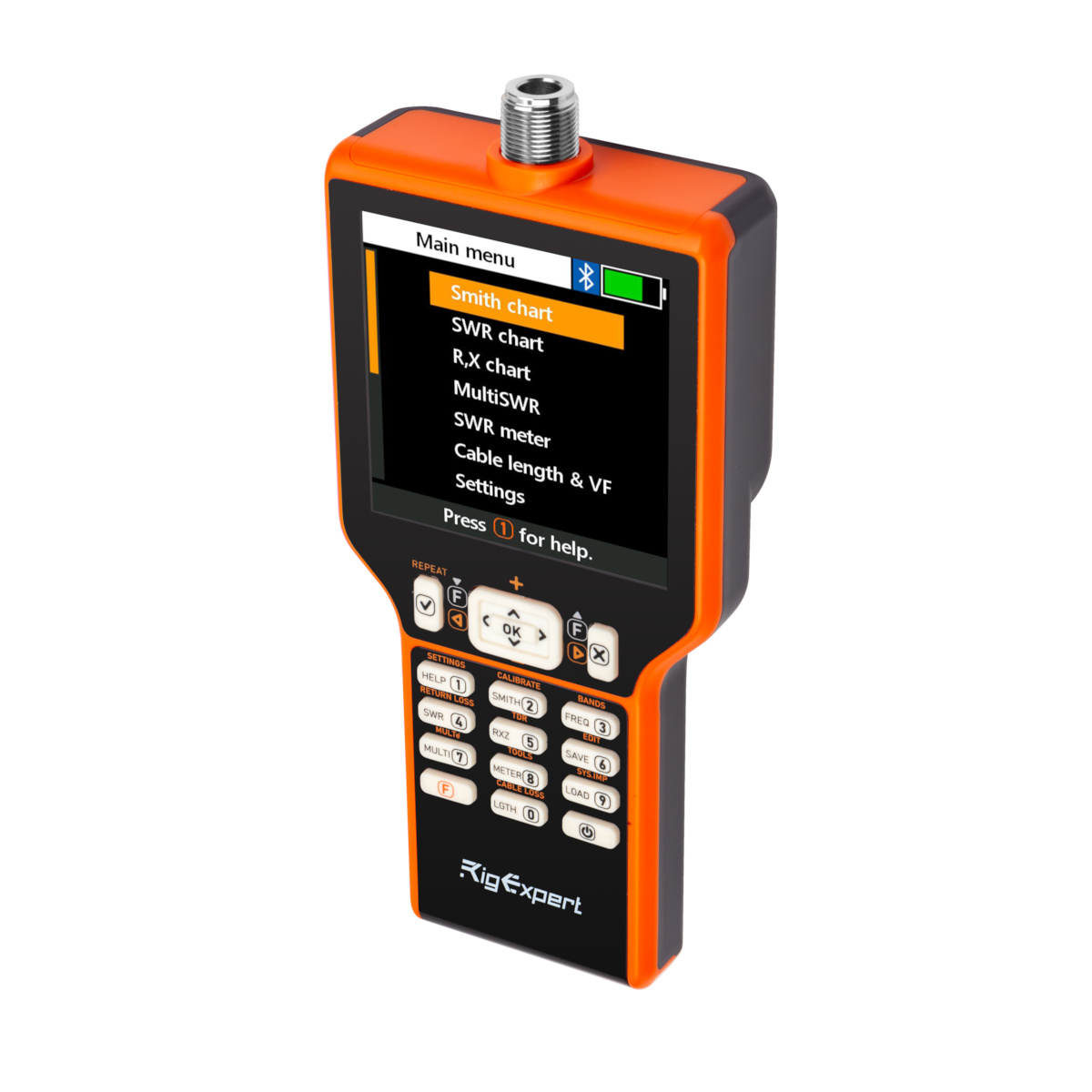

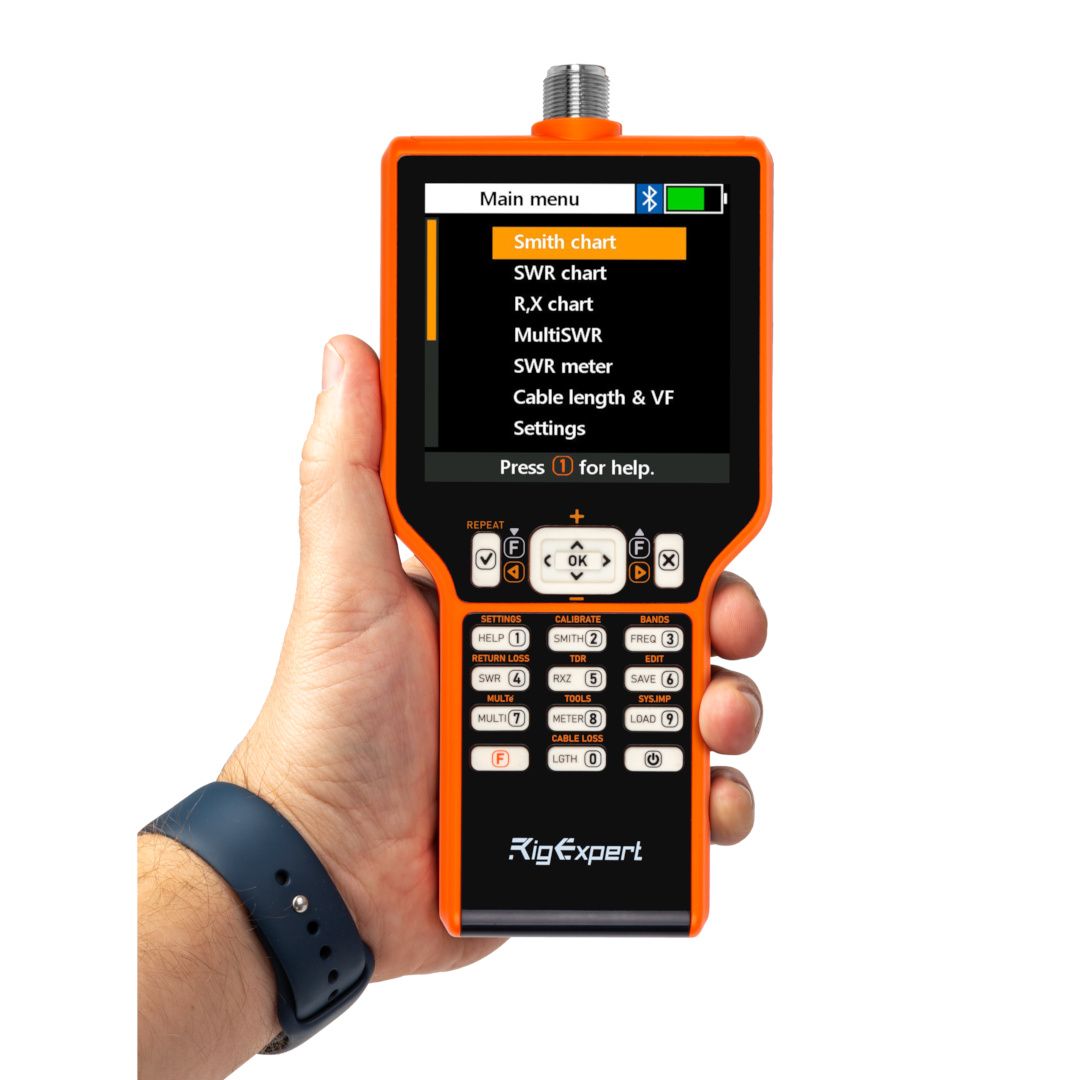

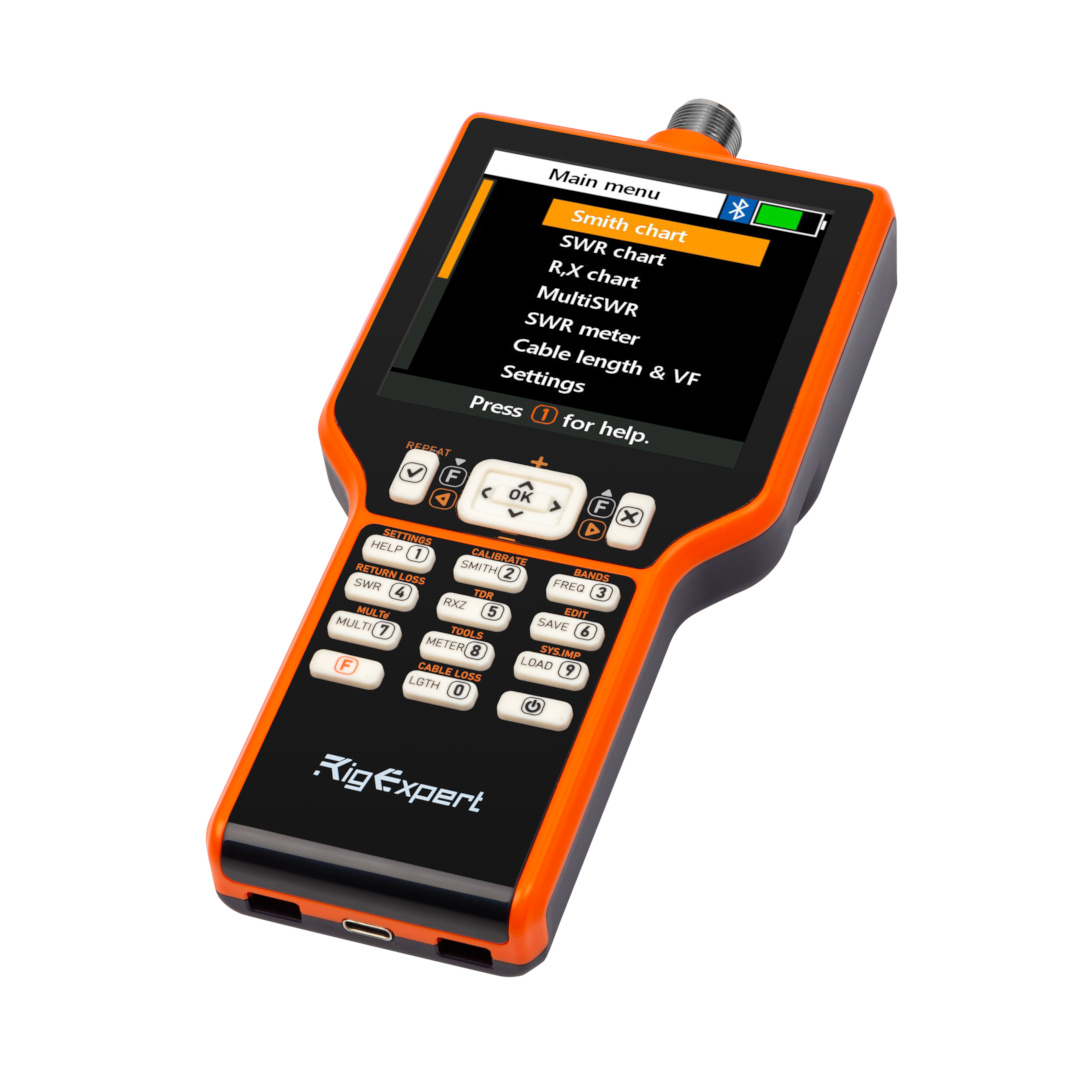

No review at the momentThe RigExpert MATCH is a compact antenna analyser covering 0.1 to 70 MHz, extendable to 230 MHz (Advance licence) or 500 MHz (RF Expert licence). Equipped with a 4" 480×480 colour screen, N connectors, a 2600 mAh Li-Ion battery and advanced tools: TDR, OSL, measurement of cable losses, impedance, length, SWR and complete diagrams (R, X, Smith, RL).
For antenna tuning, RF diagnostics and precision measurements.
- Coverage 0.1 to 70 MHz (up to 230 / 500 MHz depending on licence)
- Professional measurement modes: SWR, return loss, R/X, Z, L, C
- Advanced tools: Bluetooth, TDR, OSL, cable loss, impedance, length (Advanced, RFE)
- High-resolution 4" TFT colour display for clear reading
- Robust N connector for accurate measurements
- Integrated help at the touch of a button
- 2h40 battery life, 2600 mAh Li-Ion battery
- USB-C interface for PC/mobile connection
- Multi-language: English, French, German, Italian, Portuguese, Spanish, Ukrainian

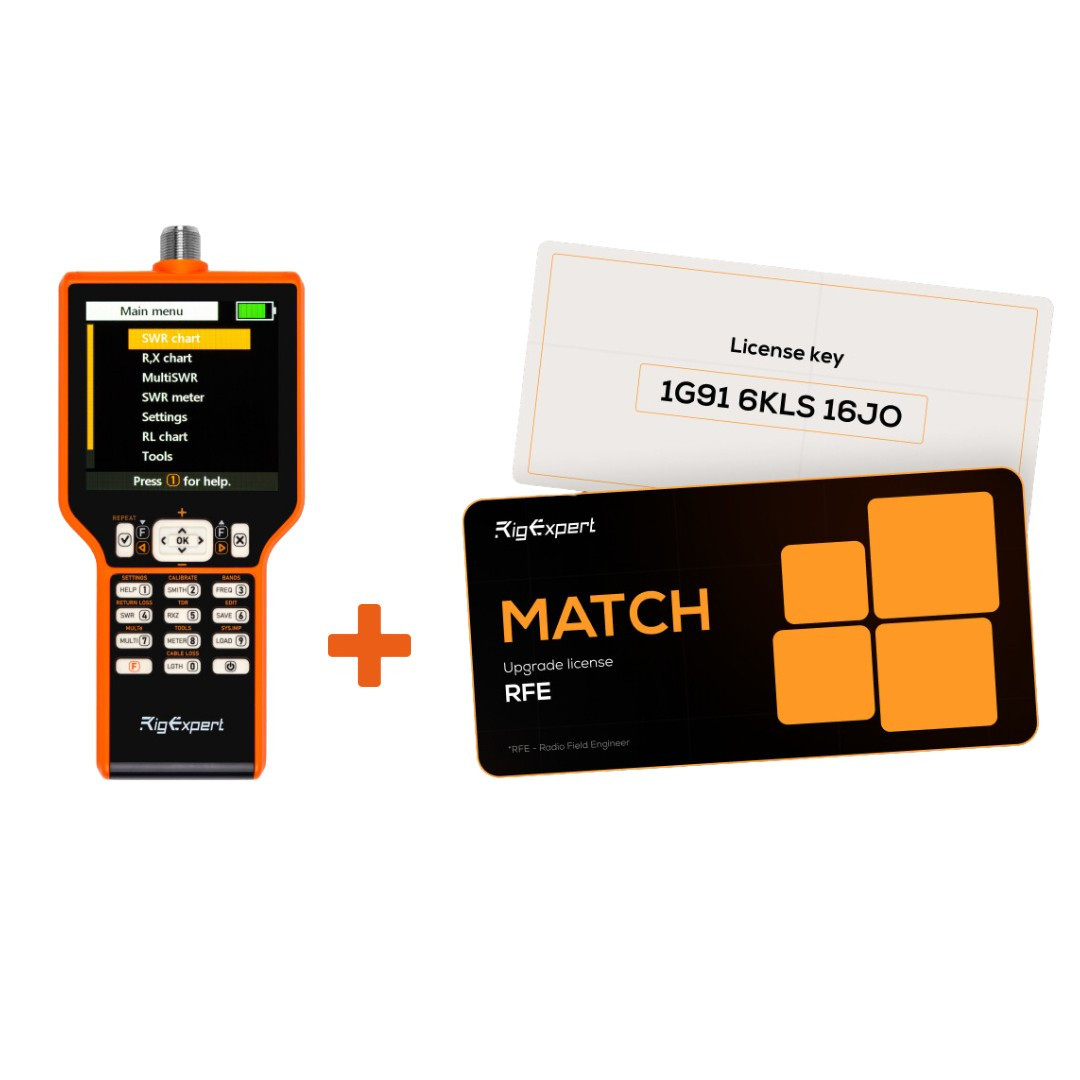

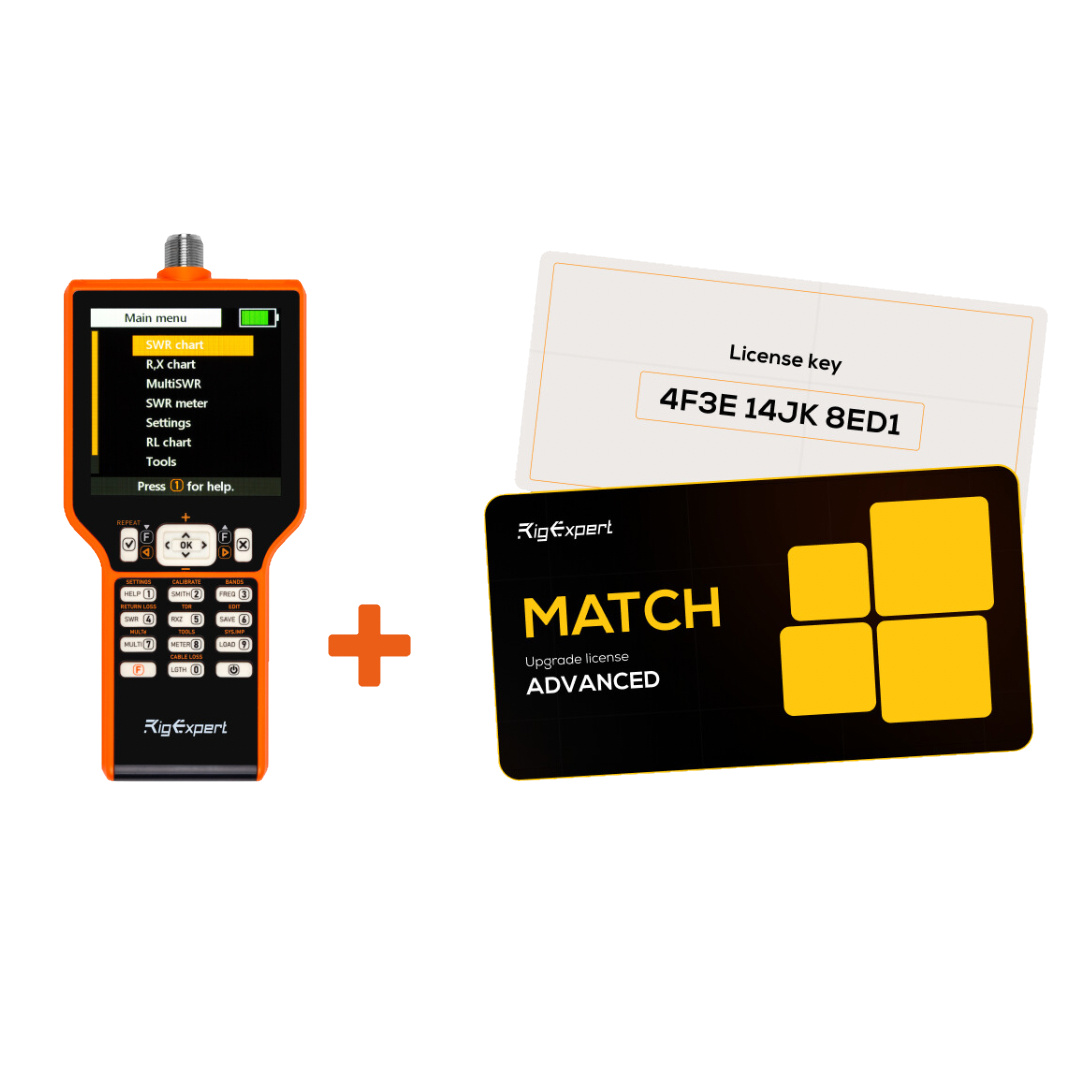

Supplied with: antenna analyser, 18650 Li-Ion battery, USB-C cable, documentation. Licence version to be selected below according to frequency coverage.
Download
Data sheet
Frequency range :
- 0.1 to 70 MHz (standard)
- Up to 230 MHz with Advanced licence
- Up to 500 MHz with RFE (RF Expert) licence
Modes and displays :
- R / X chart
- Return loss chart
- Smith chart (Advanced, RFE)
- SWR (single or multi-frequency)
- SWR chart
- SWR, return loss, R, X, Z, L, C single frequency
- TDR (Time Domain Reflectometry) - RFE licence
Integrated tools :
- Cable loss & characteristic impedance measurement (Advanced, RFE)
- Length & velocity factor (Advanced, RFE)
- OSL calibration (Advanced, RFE)
- Automatic self-test
- Stub tuner (Advanced, RFE)
- User OSL profiles (10 profiles - RFE licence)
- Factory calibration: OSL supplied
- Display: 4.0" 480×480 px TFT colour screen
- Integrated help: available via dedicated button
- Output power: -10 dBm (50 ohm load)
- RF connector: N-type
- Power supply: ICR18650 2600 mAh Li-Ion battery (operating time: 2h40 continuous measurement)
- PC/mobile interface: USB Type-C
- Available languages: English, French, German, Italian, Portuguese, Spanish, Ukrainian
- Operating temperature: -10° to +60°C
- Dimensions: 93×207×37 mm
- Weight: 341g
