PAck Downconverter + Modified LNB for QO100 - DXPatrol DX Patrol Satellite & QO-100 QO100-LNB-CONVERTER-DXPATROL-904 View larger

DX Patrol

QO100-LNB-CONVERTER-DXPATROL-904

New product

Portugal

Kit RX QO100 28/144/432/1296 Mhz Converter + LNB Modified

rating No review at the moment

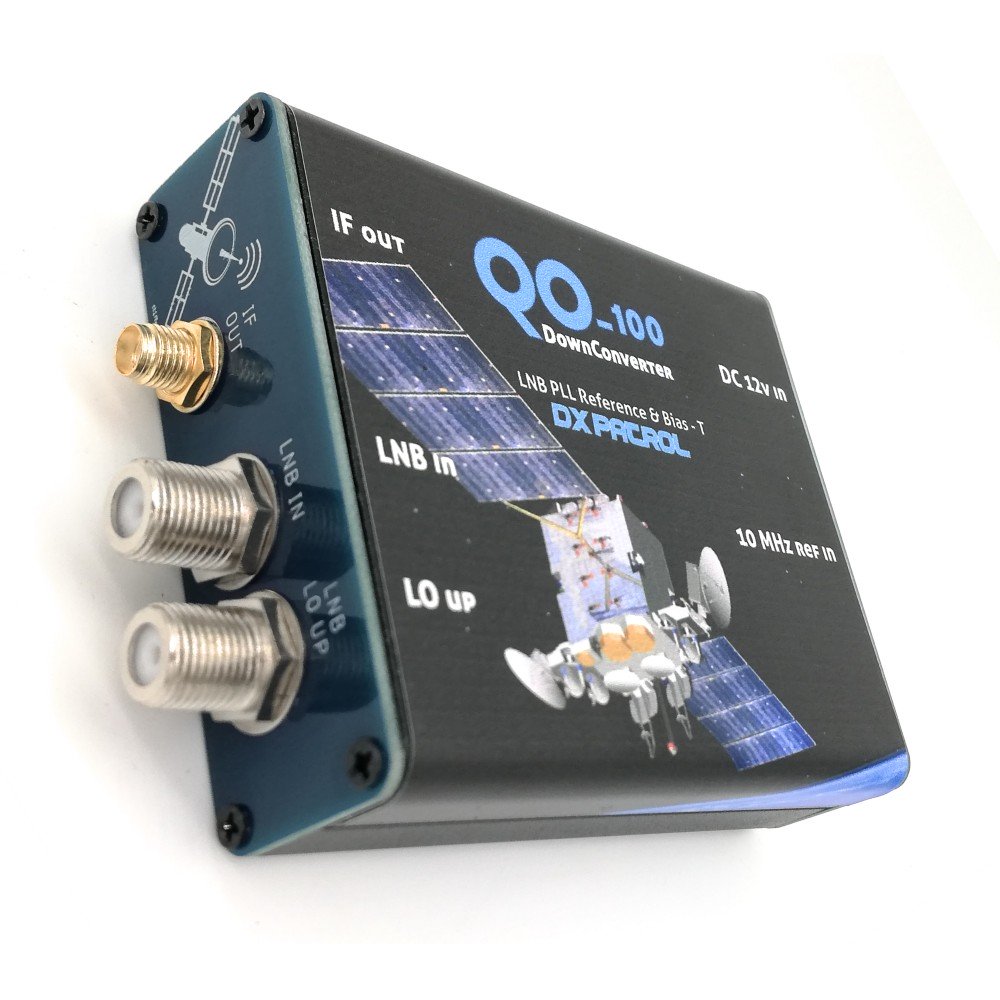

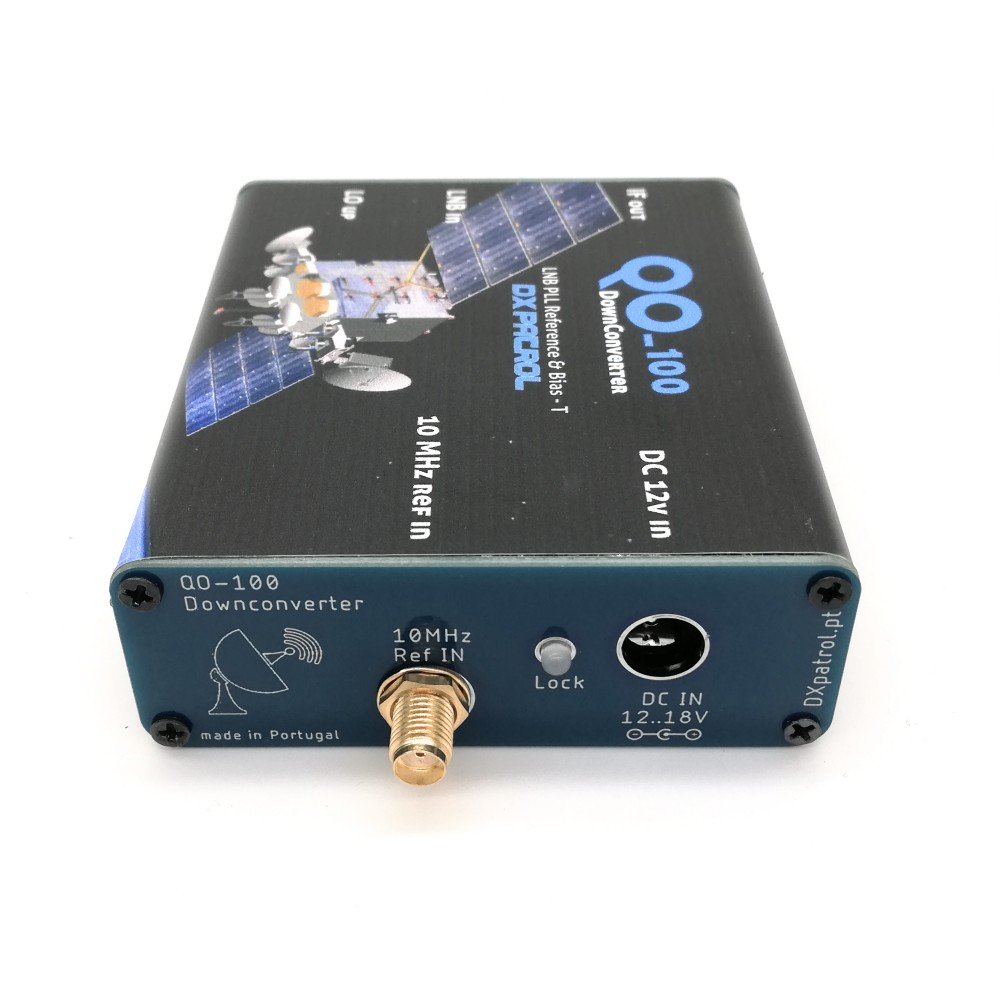

The RX reception pack for the QO100 satellite from DX-Patrol consists of a 739 Mhz down-converter to 28/144/432/1296 Mhz, with PLL locking, an integrated Bias-T to power the modified LNB head included.

Allows you to listen to the 10Ghz channel of the QO-100 satellite (narrow SSB or wide DATV transponder), directly from an analog receiver-transmitter covering the 28 MHz, 144 MHz, 432 MHz or 1296 MHz amateur radio bands.

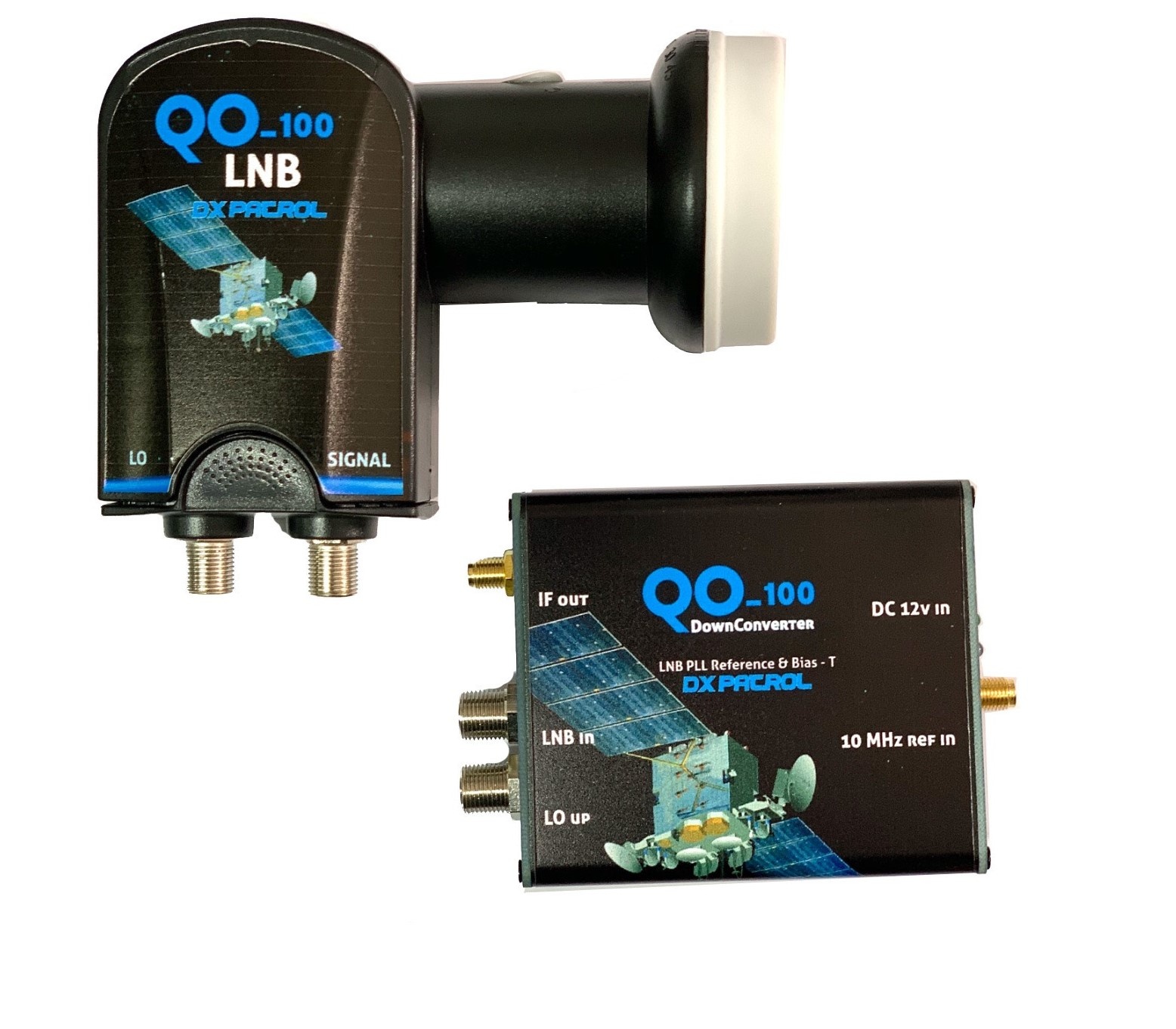

Comes with: 1 QO100 DXPatrol DownConverter Pack (new version, blue panel).

More details

This material is no longer available

Download

Manual Down-Converter MK2

Documentation new version DXPatrol Down converter MK2 for QO-100. 1.11M

Data sheet

Features 10 Ghz downconverter - 28 144 432 1296 Mhz

Supply voltage: 12V to 18V
Integrated 10 MHz reference
TCXO: 0.5PPM
External input for optional GPSDO 10 MHz
PLL lock indicator
LNB modified 25Mhz (included)
Preamplifier gain adjustment
IF output: 28.500Mhz, 144.500Mhz, 432.500Mhz, 1296,500Mhz (lower CW beacon frequency)
Aluminum box
LNB input connector: F female
IF input connector: SMA female

IF frequency and QO-100 beacon frequency correspondence

Depending on weather conditions, temperatures and LNBs, frequencies may vary by a few kHz.

28Mhz
CW-L 28.500 Mhz beacon
PSK 28.750 Mhz beacon
CW-H beacon 29,000 Mhz

144Mhz
CW-L 144.501 Mhz beacon
PSK 144.751 Mhz beacon
CW-H beacon 145.001 Mhz

432Mhz
CW-L 432.501 Mhz beacon
PSK 432.751 Mhz beacon
CW-H 433.001 Mhz beacon

1296Mhz
CW-L beacon 1296.502.650 Mhz
PSK beacon 1296.752.350 Mhz
CW-H beacon 1297.002 Mhz

10 Ghz Oscar 100 beacon frequencies

CW-L beacon (low): 10489.500 Mhz
PSK beacon: 10489.750 Mhz
CW-H beacon (high): 10489.995 Mhz
