Kit QO100 TX Transmission Up-Converter + PA 2.4 Ghz 12W DXpatrol

View larger

Display all pictures

Manufacturer: Passion Radio

Reference: PACK-QO100-TX2-DXPATROL-947

Condition: New product

Country of origin:

France

Kit QO-100 TX 28/144/430/1296Mhz + PA 2.4 Ghz 12W DXpatrol

No review at the moment

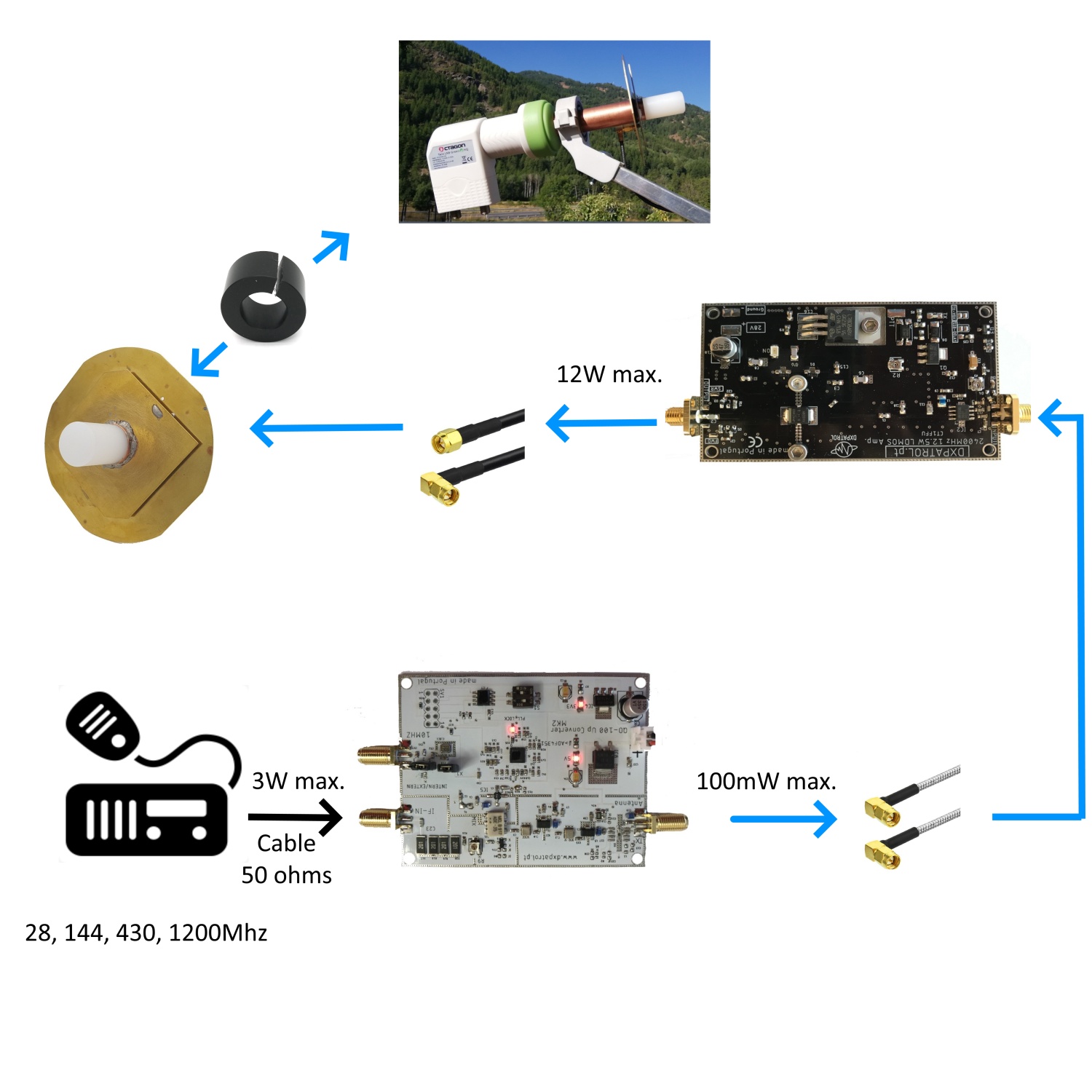

The QO-100 DXPatrol TX pack includes the main elements for transmission from a 28, 144, 430 or 1296Mhz SSB transceiver to the 2.4 Ghz uplink of the Oscar-100 amateur radio satellite, with a maximum power of 12W max. powered by 28V (power supply included).

Compatible cables to connect the elements together are included in the pack.

The DX Patrol up-converter and amplifier board, delivered without a metal box, must be placed in a waterproof box as close as possible to the dish.

To be added to have a fully operational station: 1 satellite dish (60-80cm), 1 LNB PLL (optional) and 1 50 Ohm coaxial cable for the descent from the SMA male upconverter to the VHF-UHF transceiver (in SO-239 or N depending on the station used), of a length to be chosen according to the location.

Supplied with: 1 DXPatrol 2.4 Ghz (80-200mW) MK4 upconverter, 1 DXPatrol 12W 2.4Ghz amplifier with power supply, 1 POTY antenna (assembled), 1 very low loss RG402 rigid coaxial cable of 15cm, 1 KSR195 low loss cable of 80cm with connector SMA male straight and SMA elbow and 1 reduction ring 40mm/22mm to fix the tube of the POTY antenna on the support arm on the dish.

Also available: The downconverter and LNB modified ready kit for QO-100 10 Ghz reception on a 28/144/430 or 1296Mhz receiver.

Pack content

Reference: QO100-TRANS-SEUL-DXPATROL-740
1 x UpConverter 2.4 Ghz DXPatrol MK4 for QO-100 Case-Without case
The CT1FFU DXPatrol upconverter MK4 (v4.0) for QO-100, allows to transmit from a HF, VHF or UHF radio from 28/144/432/1296 Mhz to 2400Mhz (13cm) on the QO-100 satellite uplink and the narrowband
85,00 € tax incl.
Reference: QO100-ANT-POTY-KIT-762
1 x POTY dual band feed antenna 2.4 Ghz & 10 Ghz for QO100 Version-Assembled and tested
The POTY / Patch of the Year is a 2.4/10 Ghz dual-band patch antenna, circular polarized 2400 MHz TX and linear horn antenna 10500 MHz RX with dielectric lens (new cylindrical version for offset dish
85,00 € tax incl.
Online only
9,00 € tax incl.
Reference: CABLE-COAXIAL-SMA-COUDE-1M-932
1 x Coaxial cable extension low loss SMA Male angled & SMA straight KSR195 Length-80cm
KSR195 low loss 50 ohm coaxial cable for use from 0 to 6Ghz, with angled SMA connector and straight SMA connector.Available lengths: 50cm, 1 or 2 metersConnector 1: SMA Male angledConnector 2: SMA
9,00 € tax incl.
Reference: QO100-AMP-BOITIER-DXPATROL-959_1
1 x 2400Mhz 12W amplifier V2 for DXpatrol transverter
The DXpatrol 2400Mhz V2 amplifier is intended to be used with the DXPatrol transverter for QO-100, from version MK2.It allows to output 12W maximum from an input between 50mW and 100mW maximum.
7,00 € tax incl.
Reference: CABLE-RG402-SMA-COUDE2-991
1 x Coaxial cable RG-402 with SMA Male angled x2
Very low loss RG-402 coaxial cable with angled SMA Male on both side, 50 ohms and with a length of 10cm. Note: This rigid cable can be bent but once installed in its position of use, the cable must
7,00 € tax incl.
4,95 € tax incl.
Reference: QO100-BAGUE3-207217-22MM-1029
1 x Reduction ring 40/22mm for POTY antenna
This ring allows a diameter of 40mm to be reduced to a diameter of 22mm. It is particularly suitable for mounting the POTY antenna on an LNB head support. Outside diameter: 40 mmInner diameter: 22
4,95 € tax incl.
Online only
