Upconverter 2.4 GHz 10W QO-100 input 28/50/144/432 MHz VOX TCXO

View larger

Display all pictures

Reference: QO100-UPCONV- H10003-2704

Condition: New product

Upconverter Localino 2.4 GHz 5W QO-100 input 28/50/144/432 MHz VOX TCXO

No review at the moment

The new Upconverter-H from Localino and for QO-100 makes it quick and easy to get up and running on the QO100 satellite using an SSB transceiver in 28/50/144 or 432 MHz, with a maximum power of 5W on the 13cm band at 2.4 GHz.

It is possible to have up to 10W at 13cm with a +17dBm low-power input and a 28V VCC power supply.

With integrated TCXO, input power from 10mW to 5W maximum, input IF adjustable by jumper, VOX PTT, no PTT switching required. It draws power from 10 to 24V and a typical voltage of 13.8V to 20V.

Can also be used as a stand-alone 13cm 2.4GHz amplifier, with SDR hardware such as the ADALM PLUTO. A solder joint is then required on the PCB.

Supplied with : Upconverter-H 2.4GHz Localino, delivered assembled and tested.

More details

Download

Datasheet Upconverter-H (FR)

1.36M

Datasheet Upconverter-H (EN)

1.35M

Data sheet

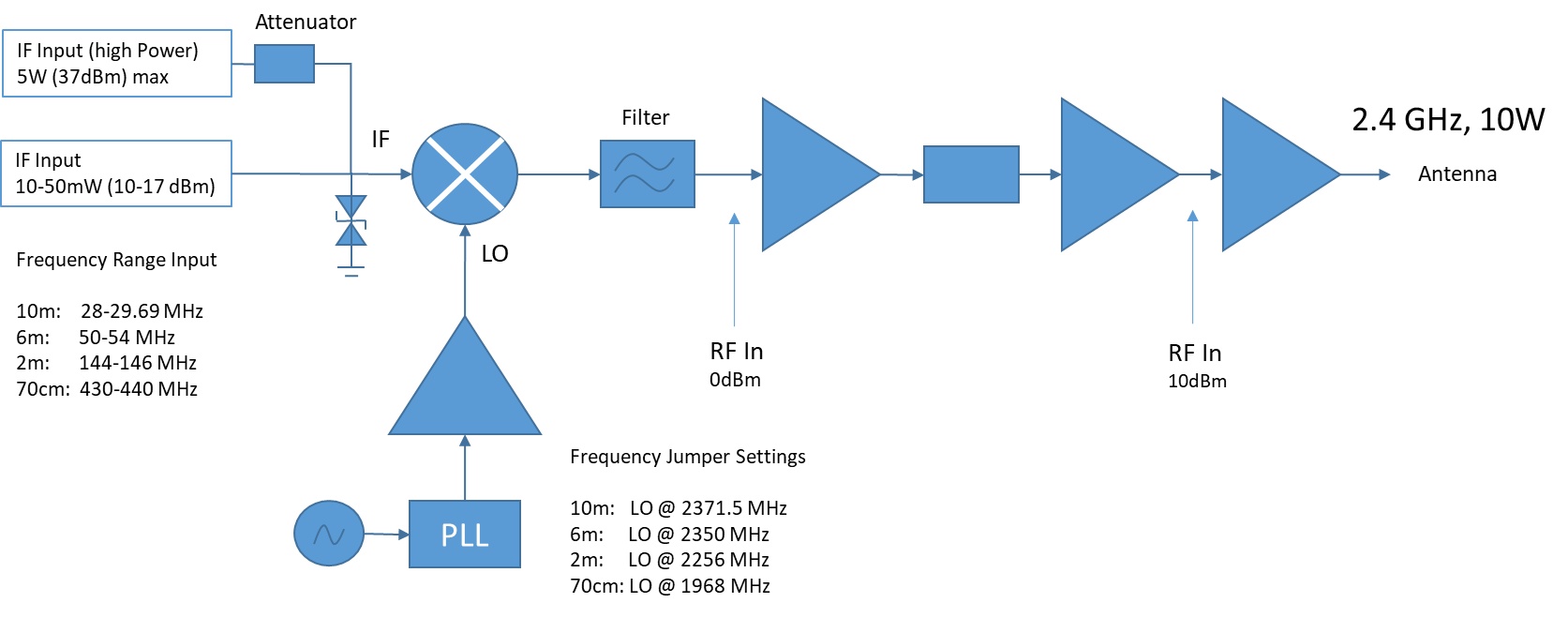

TX output frequency: 2400 MHz (13cm)
TX input frequency (IF): 28/50/144/434 MHz
TX input power: 10mW to 5W max.
Low Power Input: 10-17dBm (10mW to 50mW)
High Power Input: 30-37dBm (1W to 5W)
TX output power: 5W maximum (adjustable by reducing the supply voltage) with an HF/VHF/UHF set
10W can be achieved with a +17dBm input at the low-power input and a 28V VCC power supply
Controlled by internal TCXO or external socket for 10MHz reference
With built-in 2.4 GHz bandpass filter
LED indication (voltage, PLL lock, power transmission)
Power supply: 10-24V DC
Power consumption: 60mA (standby) to 900mA (TX 5/10W @ 20V)
Protection circuit against undesirable power peaks over a short period of time
Connectors: SMA female
External 10 MHz reference socket
Dimensions: 100 x 80 mm
Design by : DO5DSH
1 year warranty except PA*

With a 13.8V supply, the output power will be (depending on the input band) :

430.000 1,6W
144.000 1,8W
50.000 2W
28.000 2W

With a 60-80cm dish, and if the upconverter is mounted close to the dish with as little cable length as possible, a power of around 2W will be sufficient for QO-100.

In the case of a long coaxial cable length between the up-converter and the antenna, more power may be required to compensate for the loss in the cable.

Reminder: This equipment requires an amateur radio licence to be used. There will be no return or refund for upconverting with a burnt-out PA.

* The warranty does not cover the PA and the loss of power, which may result from an assembly error, incorrect antenna adjustment (VSWR), maximum input power not respected, a short-circuit in the power supply or a problem with the coaxial line.
