> Satellite & QO-100>Kit QO100 UPconverter 144/432Mhz - 2.4Ghz 100mW F1OPA
Kit QO100 UPconverter 144/432Mhz - 2.4Ghz 100mW F1OPA OPA Design Satellite & QO-100 PACK-QO100-TX4-F1OPA-949 View larger
OPA Design

PACK-QO100-TX4-F1OPA-949

New product

France

Kit QO100 UPconverter 144/432Mhz - 2.4Ghz 100mW F1OPA

rating No review at the moment

The QO100 F1OPA package includes a 144 / 432Mhz upconverter> 2.4Ghz, a 100mW (real) driver amplifier, a 2.4Ghz bandwidth SAW filter (included in converter and amplifier), for the satellite traffic on the 2400Mhz uplink of the QO-100 amateur radio satellite. Optional 2.4Ghz antennas below.

The cables and adapters needed to connect the elements together are included in the pack.

Note: The function OL (local oscillator) is not included and necessary to add by the user.

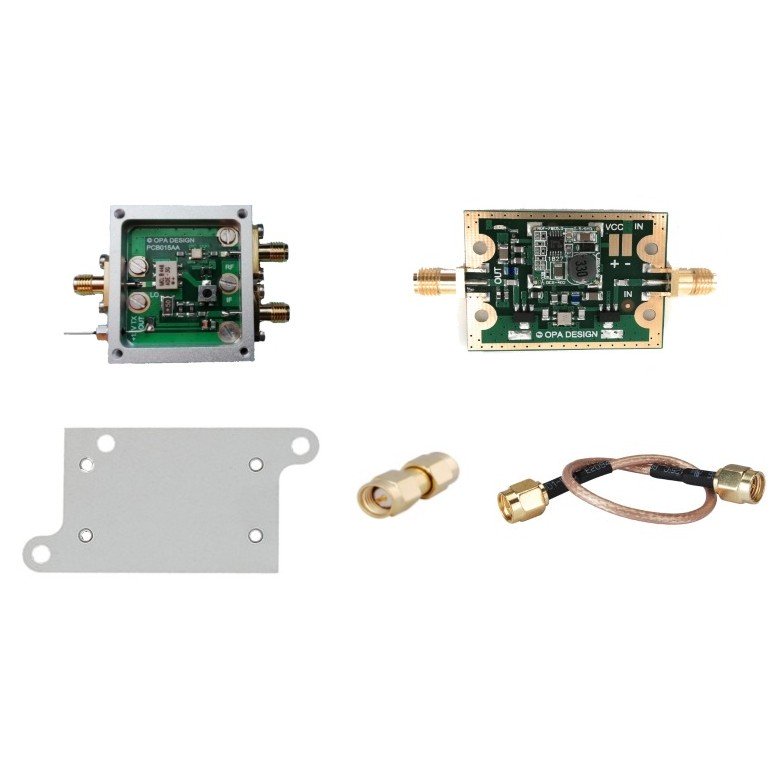

Delivered with: 1 UPconverter + case, 1 driver amplifier (100mW), 1 metal case protection from F1OPA OPA Design, 1 RF SMA cable and 1 adapter SMA.

This material is no longer available

Pack content

  • Pigtail SMA Male - SMA Male 15/50/100cm Passion Radio SMA PIGTAIL-SMA-M-SMA-M-81
    5,00 € tax incl.

    Reference: PIGTAIL-SMA-M-SMA-M-81

    1 x Pigtail SMA Male - SMA Male 15/30/50/100cm RG316 Length-15cm

    Pigtail RF adapter SMA Male to SMA Male to connect for example a converter Ham it up to a HackRF One, or SDRPlay, and any device with a SMA female connector. Coaxial cable RG 316 50 ohms. Available in

    5,00 € tax incl.
  • Adapter SMA male SMA male Passion Radio SMA ADAPT-SMA-M-SMA-M-291
    4,50 € tax incl.

    Reference: ADAPT-SMA-M-SMA-M-291

    1 x Adapter SMA male SMA male

    This RF adapter allows is equipped with an SMA Male connector on both sides.It allows to connect for example 2 cables or connectors in SMA female.

    4,50 € tax incl.
  • UpConverter 144 / 432Mhz to 2.4Ghz for QO-100 F1OPA OPA Design SAT Accessory QO100-F1OPA-UPCONVERTER-803

    Reference: QO100-F1OPA-UPCONVERTER-803

    1 x Mixer up-converter 144/432Mhz to 2.4Ghz for QO-100 F1OPA

    This 144/432Mhz mixer to the 2.4GHz band is intended to be used as a dedicated up-converter to traffic on the uplink of the QO-100 satellite. The included SAW filter allows system size reduction as

  • RF Amplifier 2400 MHz 100mW for QO-100 and Upconverter F1OPA OPA Design SAT Accessory QO100-F1OPA-AMPLI2400-938
    50,00 € tax incl.

    Reference: QO100-F1OPA-AMPLI2400-938

    1 x RF Amplifier 2400 MHz 100mW for QO-100 and Upconverter F1OPA

    This power amplifier equipment with a gain of 30dB is intended to operate primarily with F1OPA's upconverter 144 / 432Mhz - 2400 MHz to traffic on the QO-100 satellite uplink with 100mW output (20dBm)

    50,00 € tax incl.
    Online only
  • Aluminum case for PCB OPA Design OPA Design SDR accessory OPA-BOITIER-941
    19,90 € tax incl.

    Reference: OPA-BOITIER-941

    1 x Half aluminium case for PCB OPA Design

    This milled half aluminum box is specially designed for the RF protection of PCB's from F1OPA Design: LNA VHF-UHF, Bias-T, 2.4Ghz amplifier, SAW 868Mhz filters, ADS-B, QO-100 2.4Ghz and HF LNA.Case

    19,90 € tax incl.
    Online only
