Kit QO-100 Transverter DXpatrol 2400 Mhz

No review at the moment

The QO-100 transverter kit includes the main elements for stable 432Mhz reception of the 10Ghz downstream channel and for 28, 144, 430 or 1296Mhz transmission to the 2400Mhz upstream channel of the Oscar-100 amateur radio satellite.

Pack intended for users wishing to be QRV on the satellite from their traditional VHF-UHF radio equipment, without the need for a computer for reception and broadcast on QO-100.

The cables and adapters needed to connect the elements together are included in the pack. The transverter and amp are to be placed in a waterproof case closer to the dish.

It remains only to add 1 dish antenna (60-80cm), 1 coaxial cable 75ohms to feed the LNB head and 1 coaxial cable 50ohms down to the transceiver VHF-UHF.

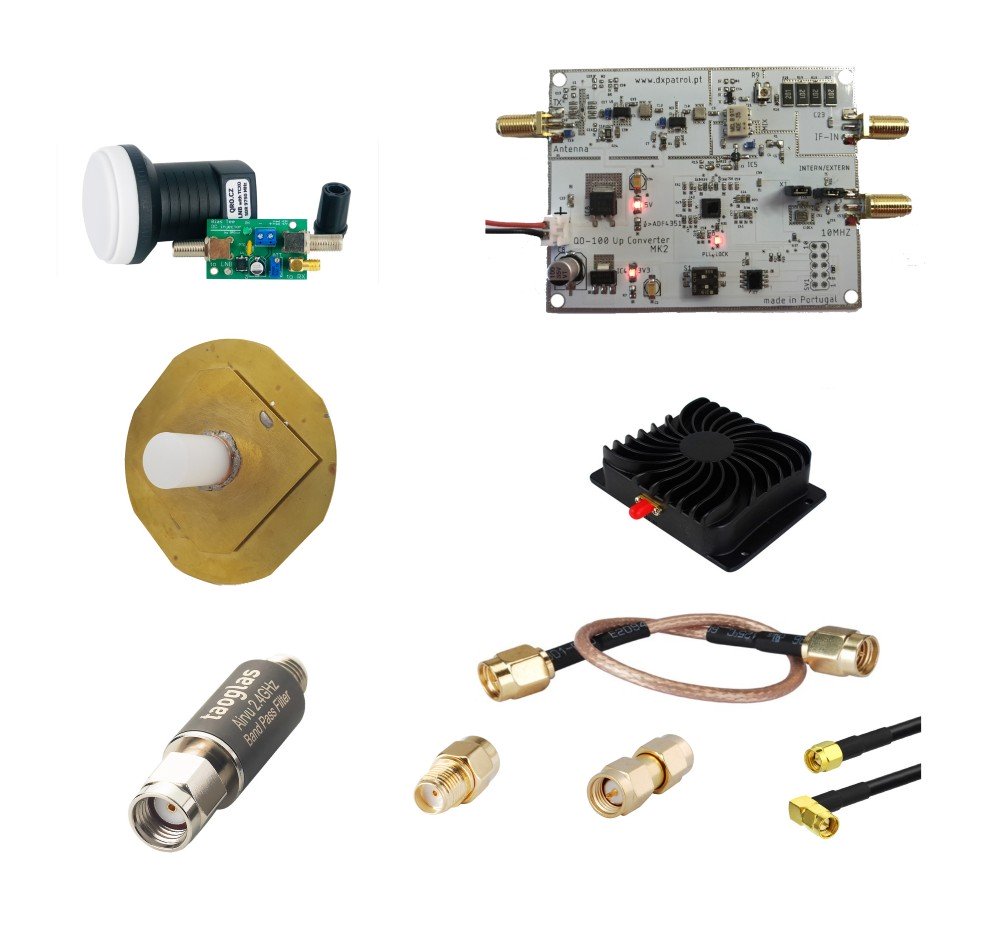

Delivered with: 1 DXPatrol 2400 Mhz transverter (80-100mW), 1 EDUP amp (8W), 1 POTY antenna (to be assembled), 1 Taoglas bandpass filter, 1 modified LNB PLL head, 1 bias-Tee, cables and adapters RF.

This equipment is no longer available and has been replaced by the QO100 transmitter kit.

Pack content

4,17 €
Reference: PIGTAIL-SMA-M-SMA-M-81
1 x Pigtail SMA Male - SMA Male 15/30/50/100cm RG316 Length-15cm
SMA Male to SMA Male pigtail adapter, for connecting a card, for example converter Ham it upconverter card to the SDR transceiver HackRF One SDR transceiver, or the SDRPlay broadband receiverwideband
4,17 €
2,92 €
Reference: ADAPT-RP-SMA-M-SMA-F-290
1 x RP-SMA Male to SMA Female adapter (WIFI and Helium hotspot compatible)
This RF adapter converts an RP-SMA Male connector to an SMA Female connector. Please note that this adapter is a Reverse SMA, mainly used for WIFI equipment. Also compatible with hotspot equipment for
2,92 €
3,75 €
Reference: ADAPT-SMA-M-SMA-M-291
1 x Adapter SMA Male
This RF adapter is fitted with a male SMA connector on both sides. It can be used to connect 2 SMA female cables or connectors, for example.
3,75 €
104,17 €
Reference: QO100-TRANS-SEUL-DXPATROL-740
1 x UpConverter 2.4 Ghz DXPatrol MK4 for QO-100 Case-Without case
The CT1FFU DXPatrol upconverter MK4 (v4.0) for QO-100, allows to transmit from a HF, VHF or UHF radio from 28/144/432/1296 Mhz to 2400Mhz (13cm) on the QO-100 satellite uplink and the narrowband
104,17 €
57,50 €
Reference: QO100-ANT-POTY-SMA-762
1 x POTY dual band feed antenna 2.4 Ghz & 10 Ghz for QO100 SMA or N connector Connector-SMA Female
The POTY (Patch Of The Year) antenna is a dual-band 2.4 GHz /10 GHz antenna, with left-hand circular polarization LHCP for 2400 MHz transmission and a linear horn antenna for 10500 MHz reception with
57,50 €
Reference: QO100-EDUP-AB003-8W-797
1 x RF Amplifier EDUP EP-AB003 2400 MHz (8W) for QO100
EDUP EP-AB003 amplifier for the amateur radio band 2400Mhz (13cm), this 2.4Ghz amp of 8W theoretical, is able to deliver an effective power of 3-4W max. with an input of 100mW maximum.This equipment
55,78 € 57,50 € tax excl. -3%tax excl. In stock
-3%
Reference: QO100-REMOTEQTH-LNB-432-936
1 x Pack LNB PLL TCXO + BIAS-T for QO100 reception in 432MHz or SDR 739MHz Version-432Mhz
The RemoteQTH Pack includes a LNB PLL head modified with TCXO and 25Mhz quartz, as well as a bias-T power supply with adjustable attenuation and available in 2 versions: With a SDR stick on 739Mhz and
55,78 €
57,50 €
Reduced price!
12,04 € 24,08 € tax excl. -50%tax excl. In stock
-50%
Reference: QO100-FILTRE-TAOGLAS-BPF.24-942
1 x TAOGLAS RF Filter Bandpass 2.4Ghz 10W WiFi and QO-100 - BPF.24.01
The Taoglas Airvu 2.4Ghz bandpass filter is a 100Mhz broadband filter, for use in frequency from 2400 to 2500Mhz and a maximum power of 10W.Connector 1: RP-SMA MaleConnector 2: RP-SMA Female Note: The
12,04 €
24,08 €
Reduced price!
