Log Periodic Antenna 850 MHz to 6.5 GHz Ettus Research SDR Antennas ETTUS-LP0965-359 View larger
Ettus Research

ETTUS-LP0965-359

New product

USA

Log Periodic Antenna 850 MHz to 6.5 GHz

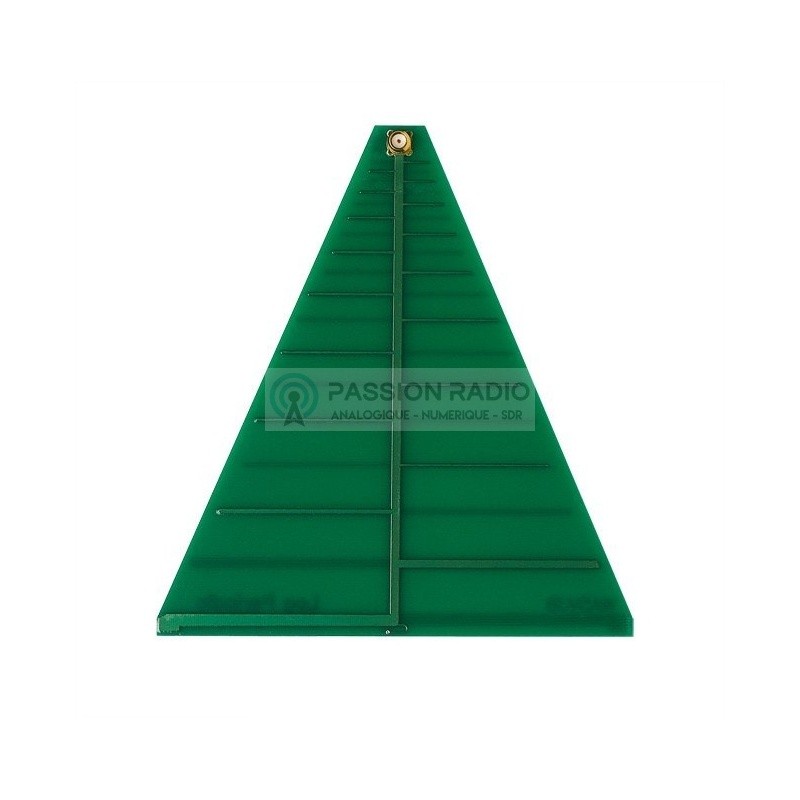

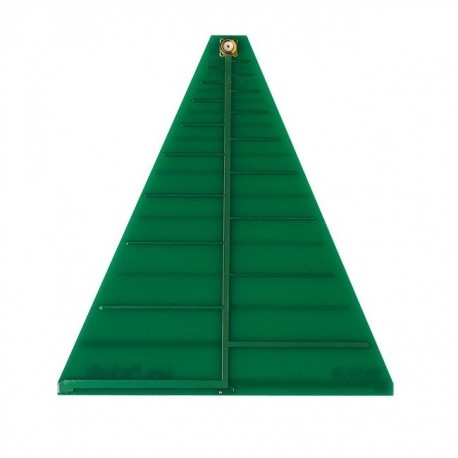

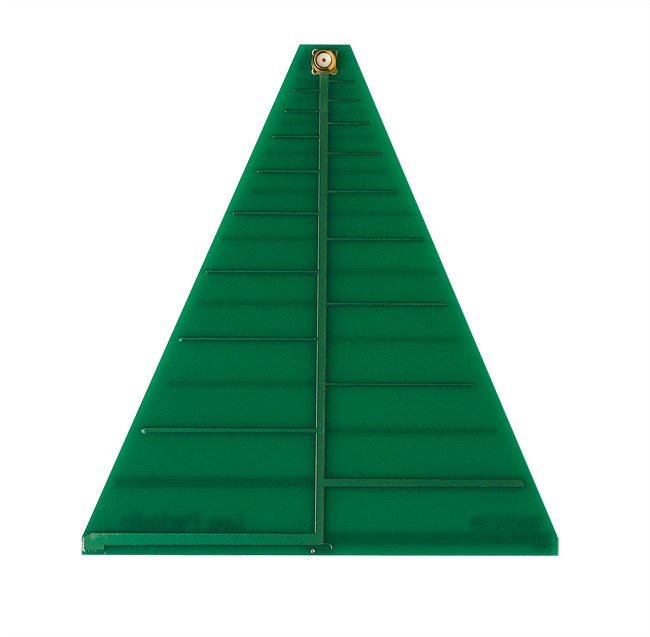

This directional Log Periodic antenna is designed in PCB and operates from 850MHz to 6,5GHz with 5-6 dBi gain.

Works with Ettus USRP B200mini and all equipment operating in this frequency range. The antenna connector is SMA female and comes with the antenna (you just will have to make the solder to the PCB antenna card).

Optional: Cable and adapter SMA Male <> SMA Male to connect the antenna to the SDR device SDR

Package includes: Antenna ETTUS LP0965 and SMA socket.

149,00 € tax incl.

124,17 € tax excl.

This material is no longer available and we don't know if and when we will have it again.

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.
