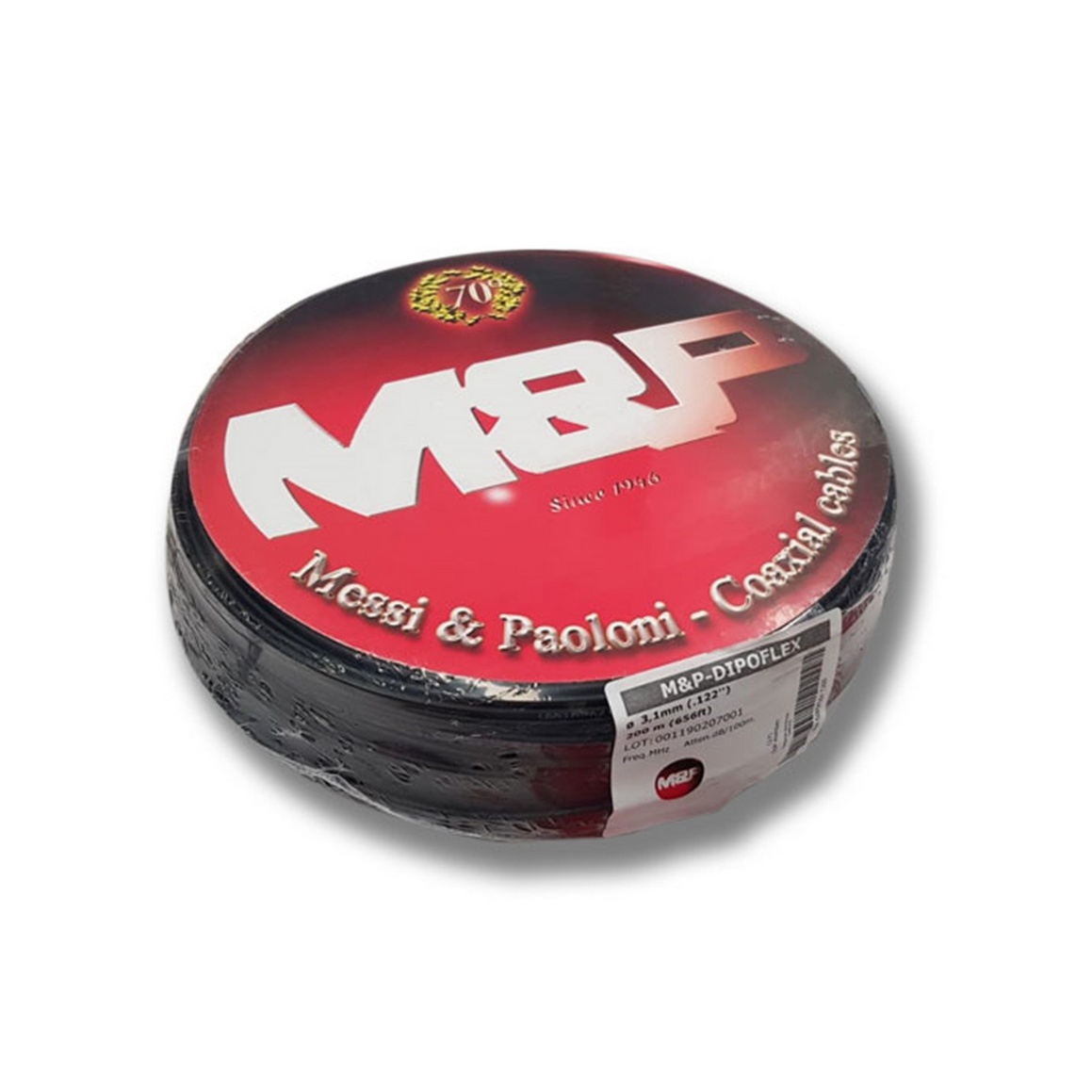

Cable for dipole antenna construction and grounding M&P DIPOFLEX

Read the review

Average rating: 5/5 Number of reviews: 1

DIPOFLEX is a high quality, high performance cable for the construction of dipole antennas.

The 1.25 mm conductor cross-section ensures excellent conductivity at all frequencies, in contrast to conventional electrical wires, which have poor conductivity at high frequencies due to the skin effect.

The mechanical tightness is guaranteed by the strong and flexible cord made of 19 copper wires. The polyethylene sheath with anti-UV additives in the compound ensures a long service life even under extreme conditions.

Available in different sizes (16m, 100m and 200m to choose from below)

More details

Download

Fiche technique dipoflex (EN)

166.19k

Data sheet

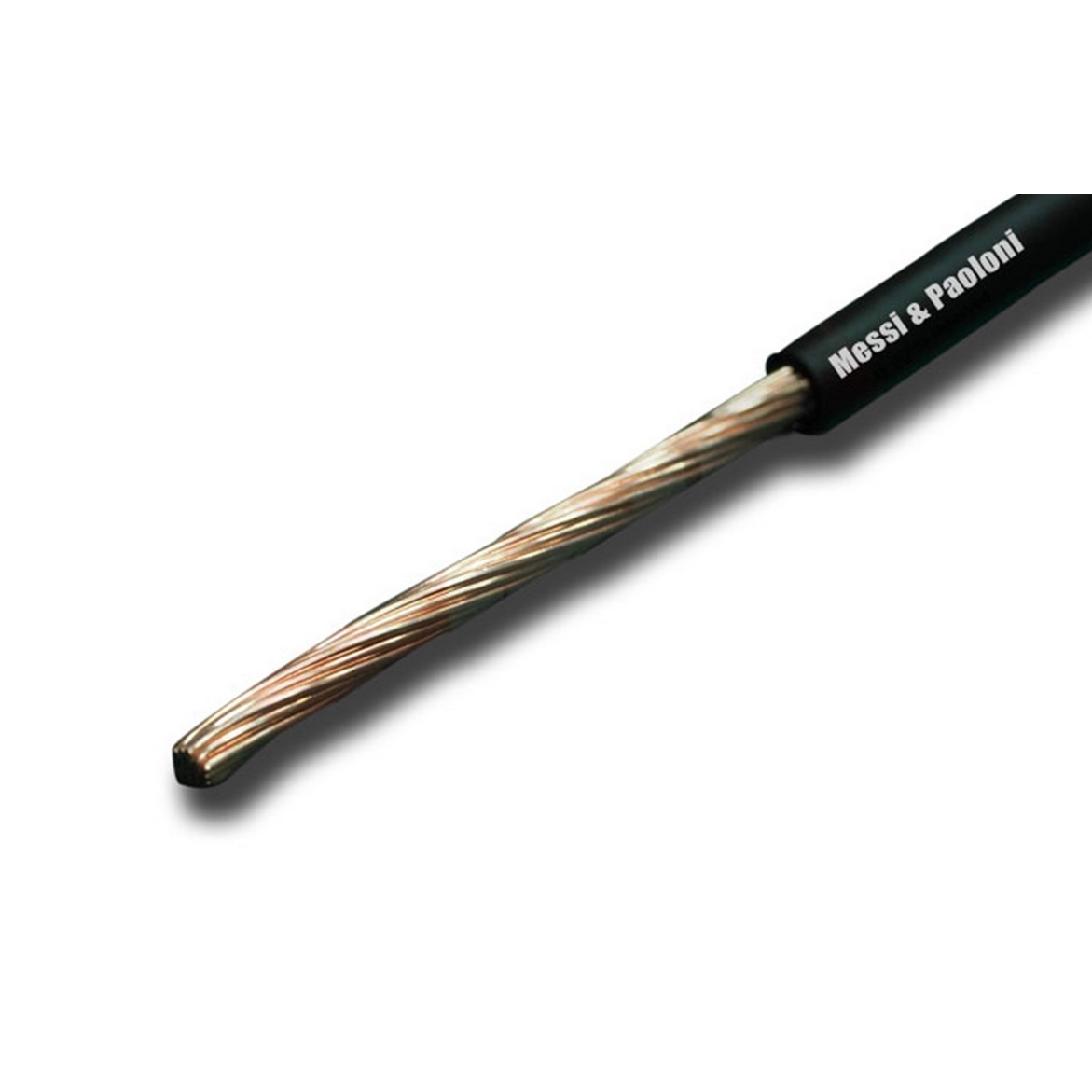

Dipole antenna wire, made of pure copper, geometrically twisted.
Conductor: Copper 19 X 0.29mm (19 X 0.011 in)
Diameter: 1.45 mm (0.057 in)
Section: 1.25 mm² (0.0019 in2)
Electrical resistance: 15 Ohm/Km (4.6 Ohm/1000ft)
Maximum applicable power: 4000W
Sheath: Black PE with UV filter
Diameter: 3.1 mm (0.122 in)
Tear strength: 45 Kg (99.2 lb)
Velocity factor: VF = 1 (299.792 Km/S)
