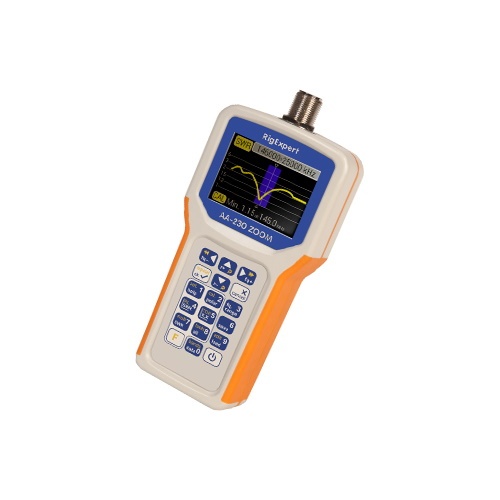

RigExpert AA-230 ZOOM Bluetooth Analyzer 100 kHz to 230 MHz

No review at the moment

The RigExpert AA-230 ZOOM antenna analyzer with Bluetooth 4.0, allows measurement of SWR, return loss, cable loss, in the frequency range 100 kHz to 230 MHz . The integrated ZOOM function makes graphical measurements more efficient.

Verification of an antenna, tuning an antenna, comparison of the characteristics of an antenna before and after a specific event (rain, hurricane, etc.), realization of RF filters and measurement of their parameters, test of coaxial cable and localization of faults , measurement of cable loss, characteristic impedance, and measurement of capacitance or inductance of reactive loads.

Compatible with use via Android OS smartphone (version 6.0 and above) via Bluetooth and via USB on PC.

Supplied with: 1 Rig Expert AA230 ZOOM Bluetooth, 1 N male SO-239 female adapter, 1 USB cable, 1 soft case, 1 user manual, 1 set of alkaline batteries.

More details

Download

AntScope2 Windows software

44.61M

Flashtool RigExpert Software

20.88M

User manual AA-230 ZOOM BLE (FR)

4.12M

Manual AA-230 ZOOM BLE (ENG)

4.01M

Data sheet

Frequency range: 0.1 to 230 MHz
Frequency input: 1 kHz resolution
Measurement for 25, 50, 75 and 100 Ohm systems

SWR measurement range: 1 to 100 in digital mode, 1 to 10 in graphics mode

SWR display: digital or analog indicator
R and X range: 0 ... 10000, -10000 ... 10000 in digital mode, 0 ... 1000, -1000 ... 1000 in graphic mode

Display modes:
- TOS at one or more frequencies
- SWR, return loss, R, X, Z, L, C at a single frequency
- TOS graph, 20 to 500 points
- Abacus R, X, 20 to 500 points
- Smith's chart, 20 to 500 points
- Return loss diagram, 20 to 500 points
- TDR graph (Time Domain Reflectometer)
- Cable tools (loss and characteristic impedance)

Non-volatile memory:
- 100 locations to save measurement results

RF output:
- Connector type: N male
- Output signal shape: square
- Output power: -10 dBm (at a load of 50 Ohm)

Food :
- 4 alkaline batteries of 1.5 V, type AAA
- 4 Ni-MH batteries of 1.2 V, type AAA *
- Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used.
- When the analyzer is connected to a PC or to a DC adapter with USB socket, it is powered by the following sources

Interface:
- 290 × 220 color TFT screen
- 6 × 3 keys on the waterproof keyboard
- Multilingual menus and help screens
- USB connection to a personal computer

Bluetooth specification v.4.0 (BLE). Compatible with Android OS ver. 6.0 and above.

Dimensions: 82 x 182 x 32 mm (3.2 x 7.2 x 1.3 in)

Operating temperature: 0 to 40 ° C

Weight: 236g
2 years warranty

The RigExpert AA-230 ZOOM Bluetooth is made in Ukraine.

Structure diagram

The structure diagram of the Rig Expert AA230 ZOOM Bluetooth:
