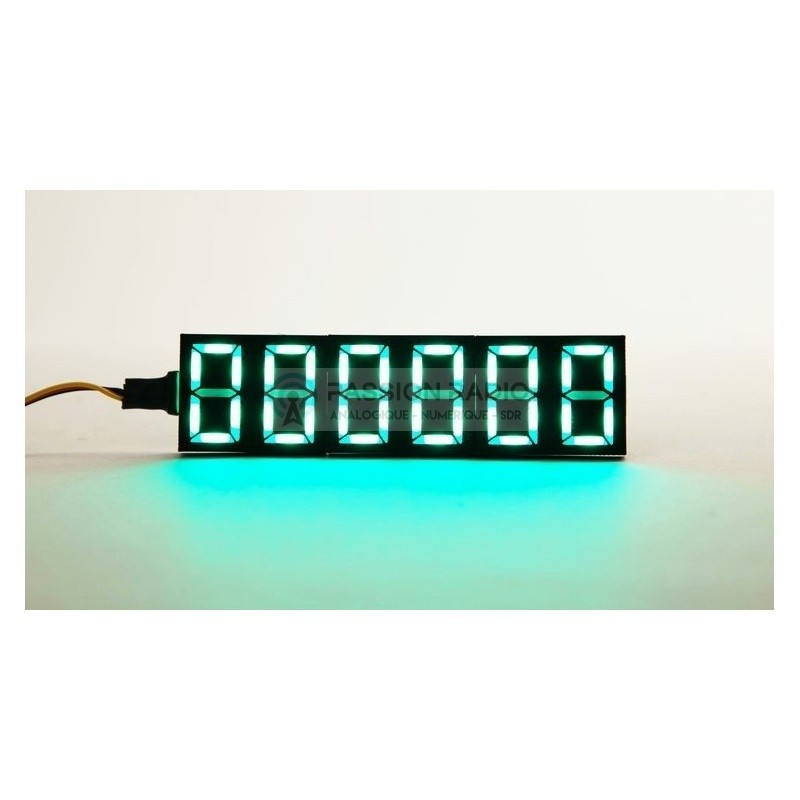

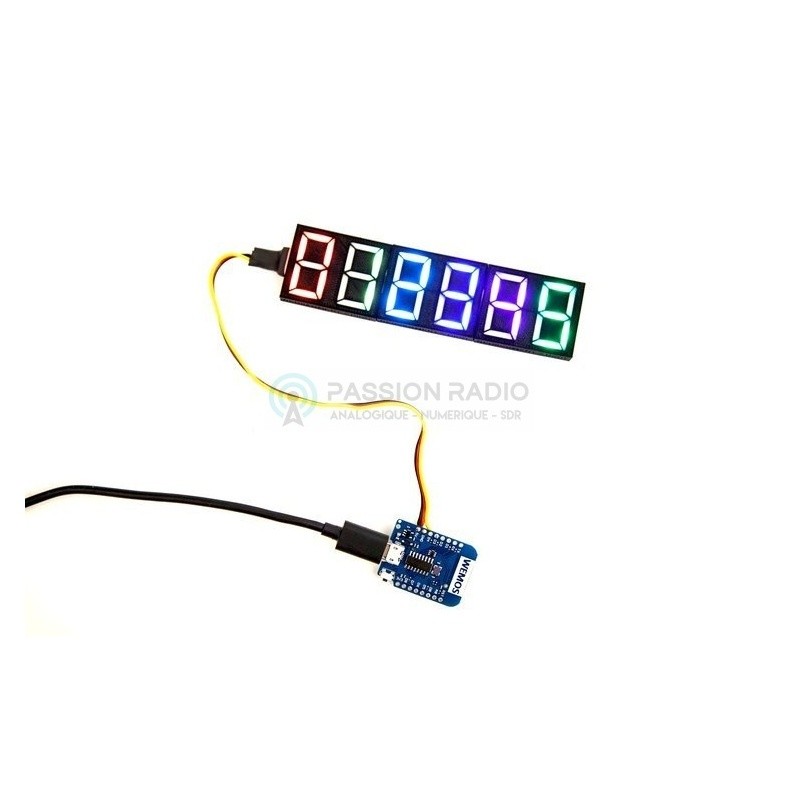

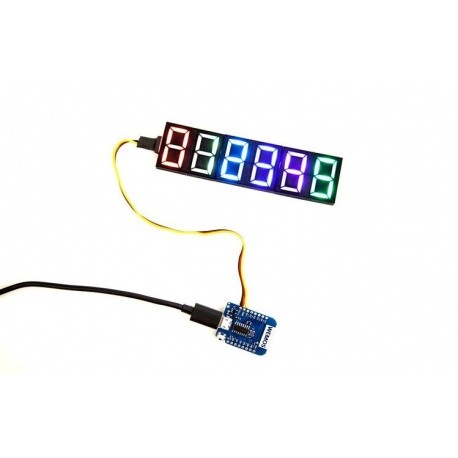

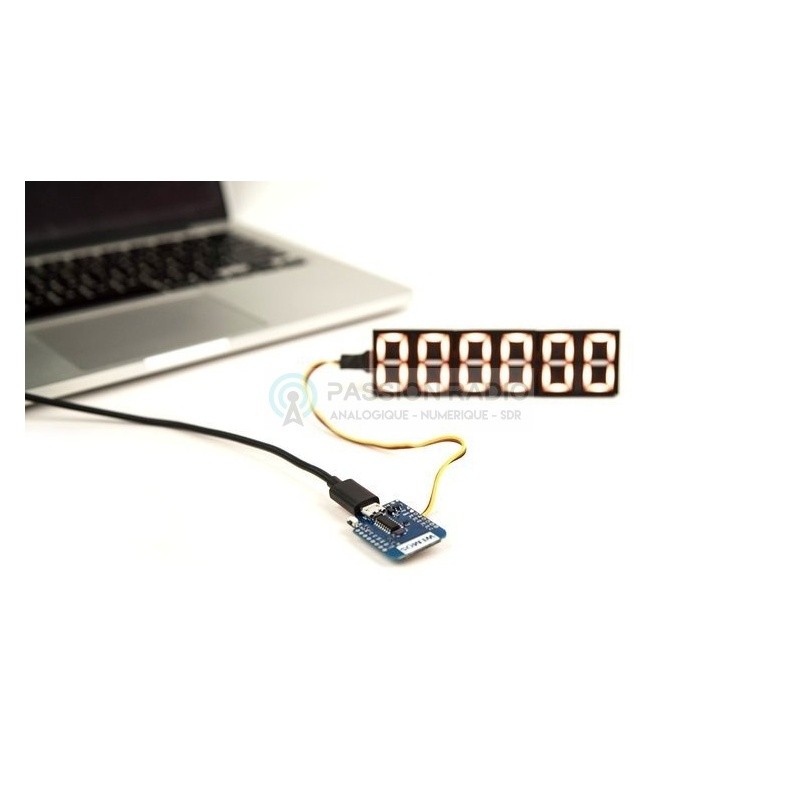

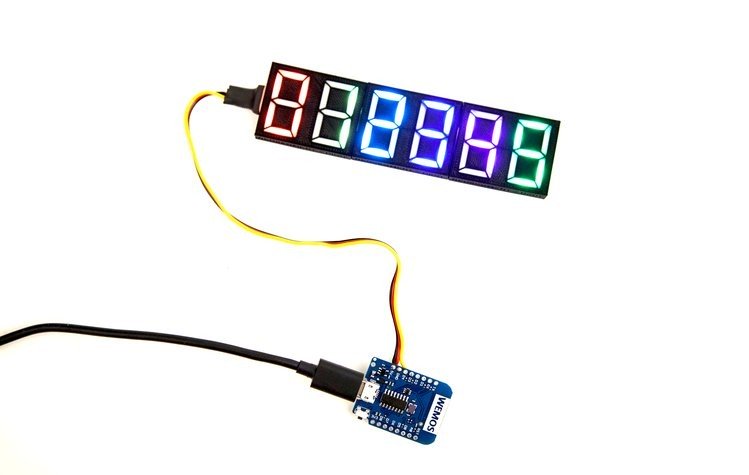

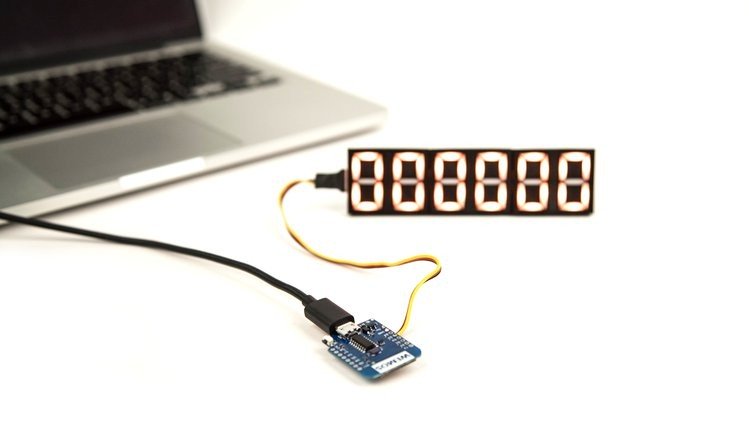

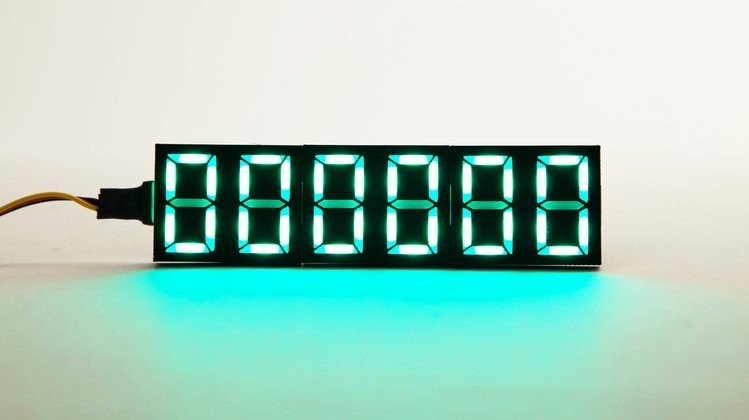

Neosegment Digit is a modular, OPEN-SOURCE seven-segment RGB display. It can display all numbers and symbols in any color, without additional circuit, which differentiates it from other displays market segments.
Neosegment is compatible with architectures Arduino, Raspberry Pi, ESP8266, ESP32, ...
Several Neosegment can be used together (without number limitation).
Delivered with: 1 Neosegment display with 2 segments. No power cable included.
Compatibility Arduino, Raspberry Pi, ESP8266, ESP32 or any chipset that supports WS2812B LEDs
Dimensions 30x40x5mm
Materials 3D printed plastic parts with diffusing sheet
Colors RGB LEDs
LEDs inside WS2812B (aka "Neopixels") in 5050 SMD packaging
Power Consumption 60ma per segment max.
Connectivity 3 pin connector
