LNA for ADS-B & SAW filter for 1090 Mhz RTL-SDR.com

rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4

This LNA and SAW filter for the 1090Mhz improves ADS-B reception performance and increases the number of messages and data received from aircraft.

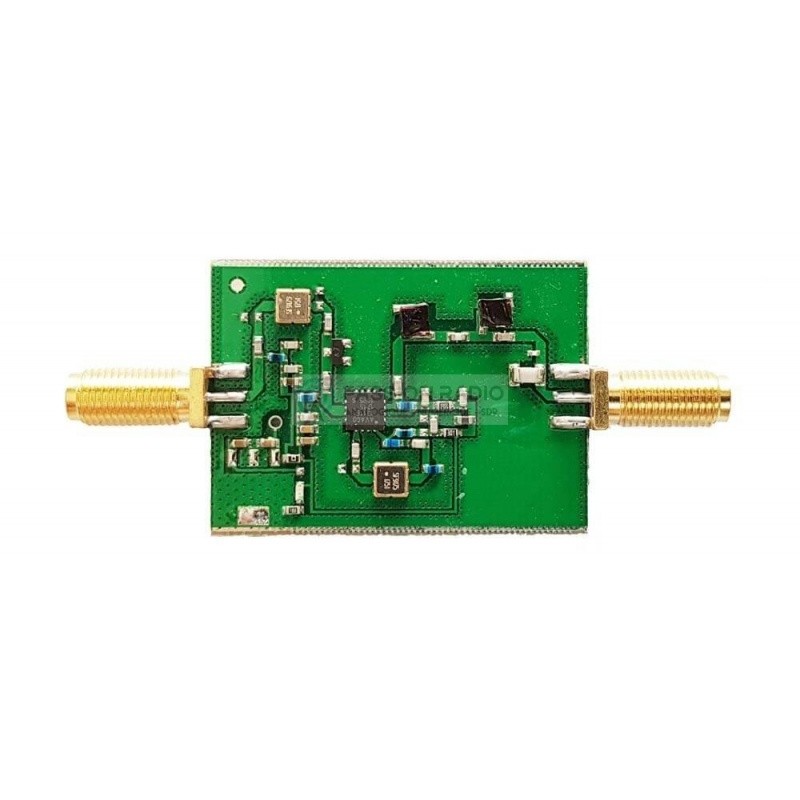

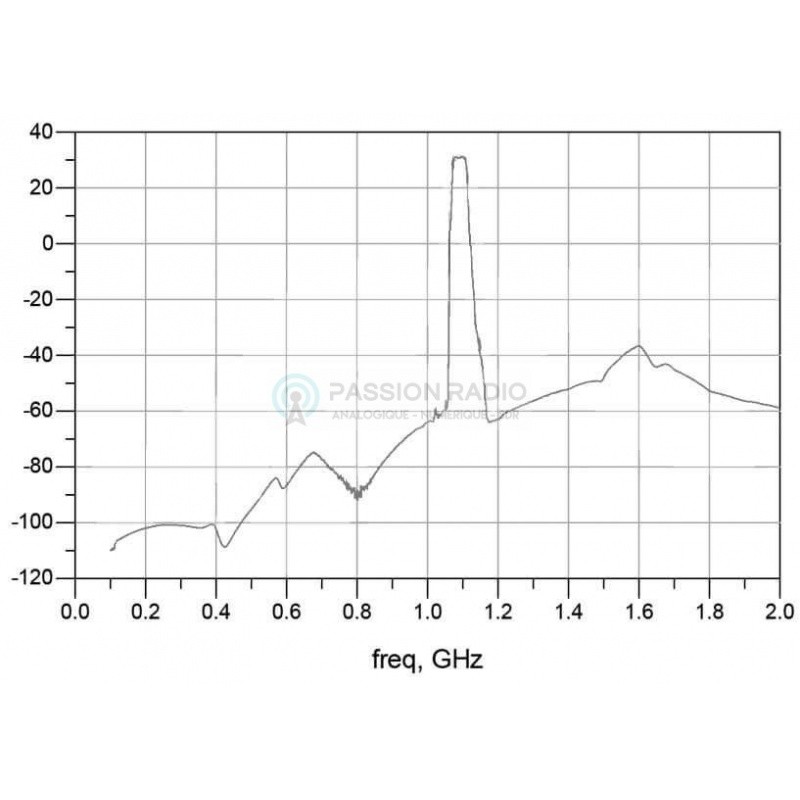

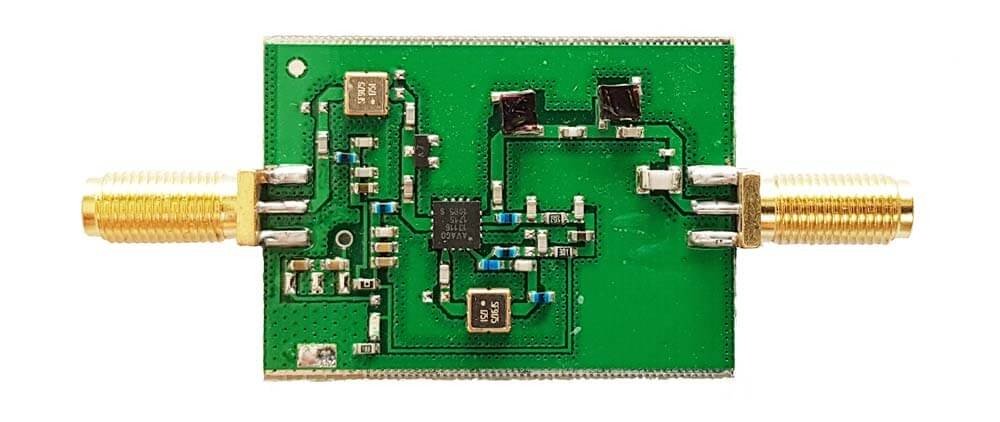

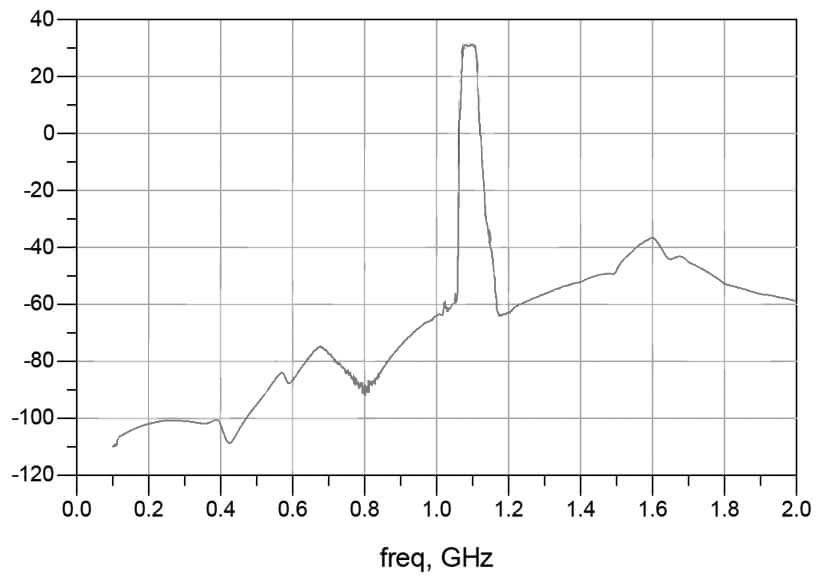

This equipment combines 2 SAW filters and a LNA with a gain of 27 dB, with a noise factor of about 1 dB and an attenuation greater than 60 dB outside the 1090 MHz band.

It is designed to be powered by BIAS-T with for example the RTL-SDR V3 dongle. Requires a 3 to 5V power supply in bias-T. The RTL-SDR V3 dongle provides 4.5V and is ideally suited.

The LNA filter is electrostatic discharge (ESD) protected and should be placed as close as possible to the antenna, but the antenna should also be properly grounded to avoid ESD damage.

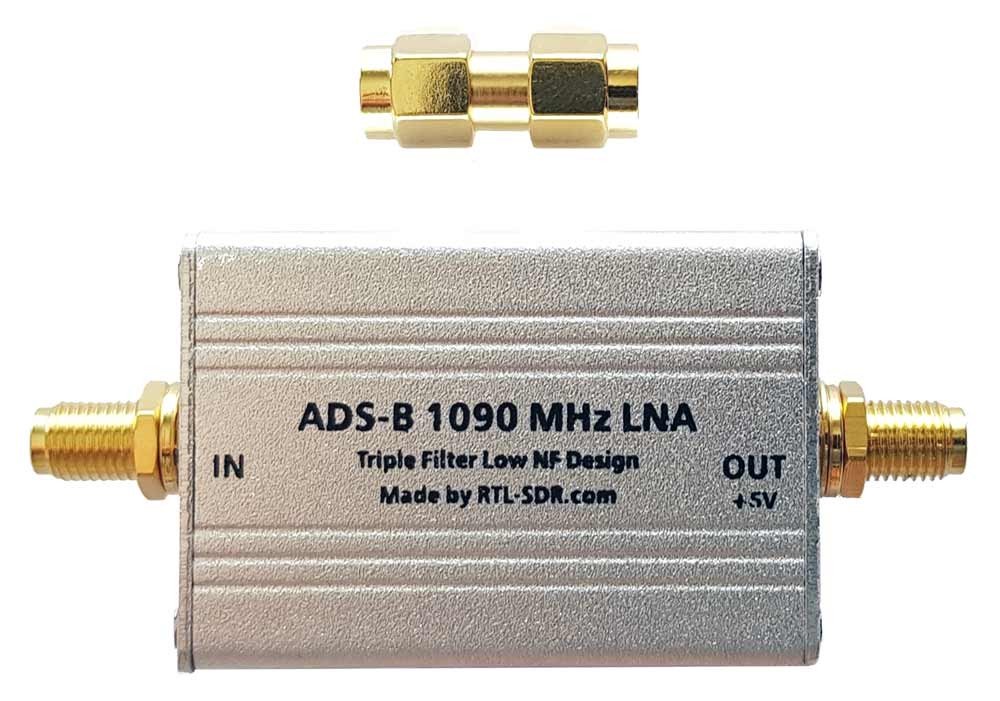

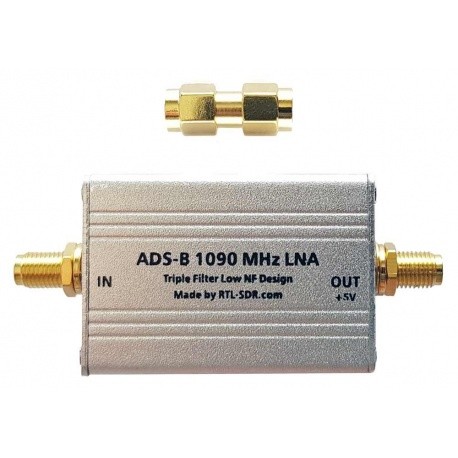

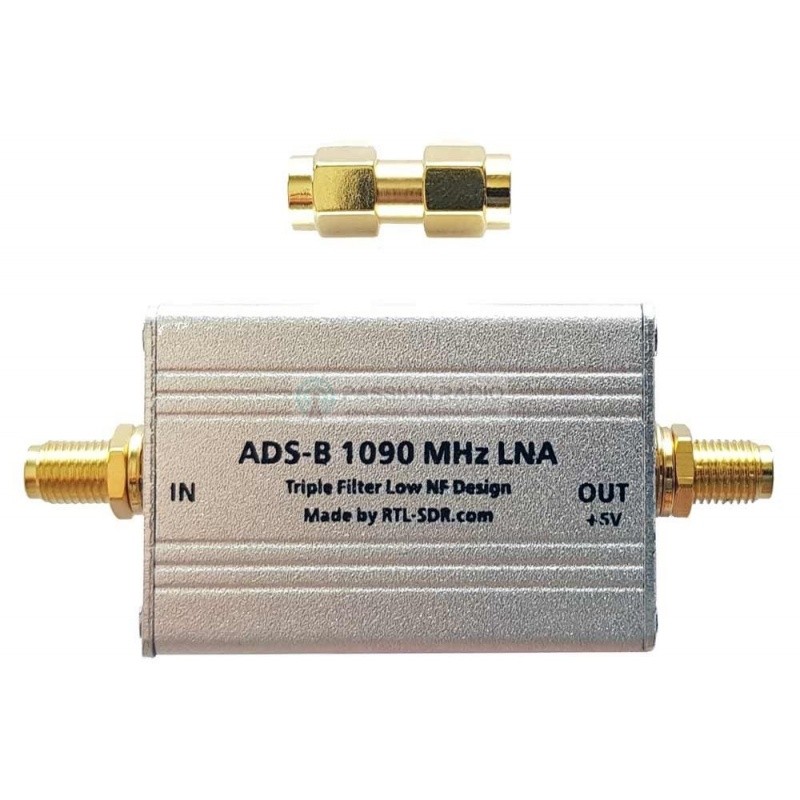

Delivered with: 1 RTL-SDR ADS-B LNA filter, 1 SMA male - SMA male adapter, 1 aluminum housing.

Other equivalent equipment : SAW filter ADSB 1090 Mhz.

37,80 € tax excl.

This material is no longer available

Download

Manual LNA ADS-B

In english 6.02M

  • Customers also bought

    No products available

  • We also recommend

    • SMA Male UHF Female Adapter (SO-239) Passion Radio RF Cables & Adapters ADAPT-SMA-M-UHF-F-67
      5,00 €

      Reference: ADAPT-SMA-M-UHF-F-67

      SMA Male UHF Female Adapter (SO-239)

      SMA Male to UHF Female Adapter (SO-239).

      5,00 €
    • Pigtail SMA Male - SMA Male 15/50/100cm Passion Radio SMA PIGTAIL-SMA-M-81
      5,00 €

      Reference: PIGTAIL-SMA-M-SMA-M-81

      Pigtail SMA Male - SMA Male 15/30/50/100cm RG316

      SMA Male to SMA Male pigtail adapter, for connecting a card, for example converter Ham it upconverter card to the SDR transceiver HackRF One SDR transceiver, or the SDRPlay broadband receiverwideband

      5,00 €
    • Adapter SMA Male Passion Radio SMA ADAPT-SMA-M-291
      4,50 €

      Reference: ADAPT-SMA-M-SMA-M-291

      Adapter SMA Male

      This RF adapter is fitted with a male SMA connector on both sides. It can be used to connect 2 SMA female cables or connectors, for example.

      4,50 €
    • Adapter SMA Female Passion Radio SMA ADAPT-SMA-F-292
      4,00 €

      Reference: ADAPT-SMA-F-SMA-F-292

      SMA Female SMA Female Adapter

      This RF adapter has a female SMA connector on both sides.It can be used to connect 2 SMA male cables or connectors, for example.

      4,00 €

Reviews

Click here to leave a review

rating 5
Very good product

I am using this LNA for receiving ADS-B data and this amplifier has increased my receiving-range with app. 50 nm.

rating 5
Parfait
Fait très bien son travail
rating 5
Trés bon produit
Très content de mon achat. Placé directement en entrée de ma clé sdr, je suis passé d'une couverture de 250km (avant) à 400km avec environ 10m de câble coaxial rg214. La prochaine étape sera de placer ce filtre/pré-ampli au plus prêt de l'antenne .
rating 5
attention à la consommation !
fonctionne parfaitement mais est gourmand en énergie, pour ma part nécessite l'utilisation du BIAS-T pour QO-100 ou LNA 30MHz à 4GHz F1OPA avec alimentation externe 5v 1A minimum
