Pack QO100 TX SDR Adalm Pluto 100mW - 3W Passion Radio Satellite & QO-100 PACK-QO100-TX3-ADALM-948 View larger
Passion Radio

PACK-QO100-TX3-ADALM-948

New product

France

QO-100 TX Broadcast Pack in SDR with Adalm PlutoSDR + 100mW amp + filter

The QO100 Adalm PlutoSDR pack includes the main elements for SDR transmission from a computer to the 2400 Mhz uplink channel of the QO-100 amateur radio satellite.

The cables and adapters most commonly used with this equipment are included in the package. However, it is necessary to ensure the correct length and compatibility with your installation.

We recommend to place the whole equipment in a waterproof box, on the mast, as close as possible to the dish, and with a PoE down feed via an ethernet cable (not included).

This pack includes the Analog driver amp allowing to output 100mW, to then feed another amp more QRO, depending on the mode used, 5-10W for narrow band transponder phoning, with a 60-80cm dish, or 50-100W for DATV with a 100-120cm dish.

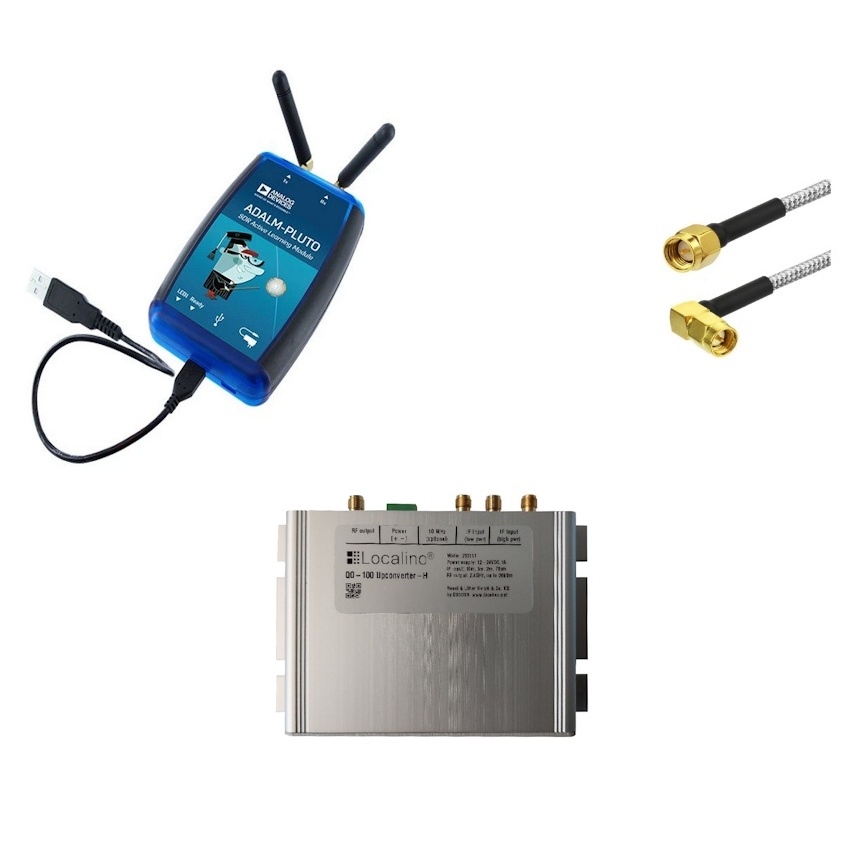

Supplied with: 1 Adalm-Pluto SDR, 1 Analog Devices 2.4GHz driver amp (100mW), 1 F1OPA 2400MHz bandpass filter, cables and RF adapters. Without antenna.

More details

419,00 € tax incl.

349,17 € tax excl.

Instead of 425,40 €

In stock

Order it before 10:00 of aujourd'hui and receive it between on Wednesday 28th September and Thursday 29th September with DHL Express 12

To know the shipping costs and available carriers, add this material to the cart and indicate your country & zip code on the cart page.

Pack content

  • RF Amplifier 2400 MHz 20dB Analog Devices CN0417 Analog Devices Satellite & QO-100 QO100-ANALOG-CN0417-777
    55,00 € tax incl.

    Reference: QO100-ANALOG-CN0417-777

    1 x RF Amplifier 2400 MHz 20dB Analog Devices CN0417

    The Analog Devices CN0417 is a small RF power amplifier, powered by micro-USB, optimized to operate on 2400 MHz with 100mW max, gain of 20-21dB max., with a integrated bandpass filter 2400 to

    55,00 € tax incl.
  • PlutoSDR RX & TX 325 MHz - 3.8 GHz Full-Duplex Analog Devices SDR transceivers ANALOG-ADALM-PLUTO-788
    329,00 € tax incl.

    Reference: ANALOG-ADALM-PLUTO-788

    1 x PlutoSDR RX & TX 325 MHz - 3.8 GHz Full-Duplex - SDR QO-100 REV C

    The PlutoSDR (Adalm-Pluto) REV C is an open-source SDR receiver and transmitter covering frequencies from 325MHz to 3.8GHz in half and full-duplex with a bandwidth of 20Mhz in 12bits.Adalm-Pluto was

    329,00 € tax incl.
  • 2.4 Ghz SAW Bandpass filter for QO100 OPA Design SAT Accessory FILTRE-SAW-QO100-F1OPA-824
    25,90 € tax incl.

    Reference: FILTRE-SAW-QO100-F1OPA-824

    1 x 2.4 Ghz SAW Bandpass filter for QO100

    This bandpass filter for the 2.4 Ghz (13cm) allows to reject the local oscillator and harmonics frequencies of the Up-Converter for QO-100 to get a clean signal on the satellite, with a max. input

    25,90 € tax incl.
    Online only
  • Coaxial cable low loss SMA Male angled & SMA straight Passion Radio SAT Accessory CABLE-COAXIAL-SMA-M-COUDE-1M-932
    9,00 € tax incl.

    Reference: CABLE-COAXIAL-SMA-COUDE-1M-932

    1 x Coaxial cable extension low loss SMA Male angled & SMA straight KSR195 Length-80cm

    KSR195 low loss 50 ohm coaxial cable for use from 0 to 6Ghz, with angled SMA connector and straight SMA connector.Available lengths: 50cm, 1 or 2 metersConnector 1: SMA Male angledConnector 2: SMA

    9,00 € tax incl.
  • RG402 rigid coaxial with straight SMA Male and angled SMA Male Passion Radio SMA CABLE-RG402-SMA-COUDE1-990
    6,50 € tax incl.

    Reference: CABLE-RG402-SMA-COUDE1-990

    1 x RG402 rigid coaxial with straight SMA Male and angled SMA Male

    Very low loss RG402 coaxial cable with  straight SMA Male and angled SMA Male, for example to connect a 2400 Mhz amplifier to a converter OQ-100, or any use requiring a very low loss cable. Coaxial

    6,50 € tax incl.

Data sheet

Emetteur-récepteur : Basé sur le circuit intégré AD9363 d’Analog Devices
FPGA : Zynq Z-7010 Xilinx®
Fréquence Rx et TX : 325 MHz à 3,8 GHz
Puissance émission maximum: 7dBm (5mW)
20 MHz de bande passante
12 bits ADC
Interface USB : 2.0
Boîtier plastique
TCXO : +/- 25PPM (pas de TCXO)
2 connecteurs RF : SMA femelle (1 pour le Rx et 1 pour le TX)
Version : REVISION REV C avec 1 connecteur Clock In et 1 Clock Out en U.FL sur la carte PCB

Modifications Pluto SDR pour QO-100

Pour une utilisation et configuration en émission et réception avec le satellite QO100 nous vous recommandons ces différentes lectures sur les modifications (mods) recommandées et à réaliser sur l'Adalm avec l'ajout d'un TCXO pour améliorer la stabilité et la bonne mise à la masse de la carte :

https://www.f1te.org/index.php/satellite-qo-100/station-sdr-pour-qo-100
https://www.f5uii.net/transmit-datv-over-qo100-with-sdr-adalm-pluto-f5oeo-plutodvb/2/
http://www.hb9afo.ch/articles/pluto/default.htm
https://hf5l.pl/en/adalm-pluto-kit-for-eshail-2-and-more/
