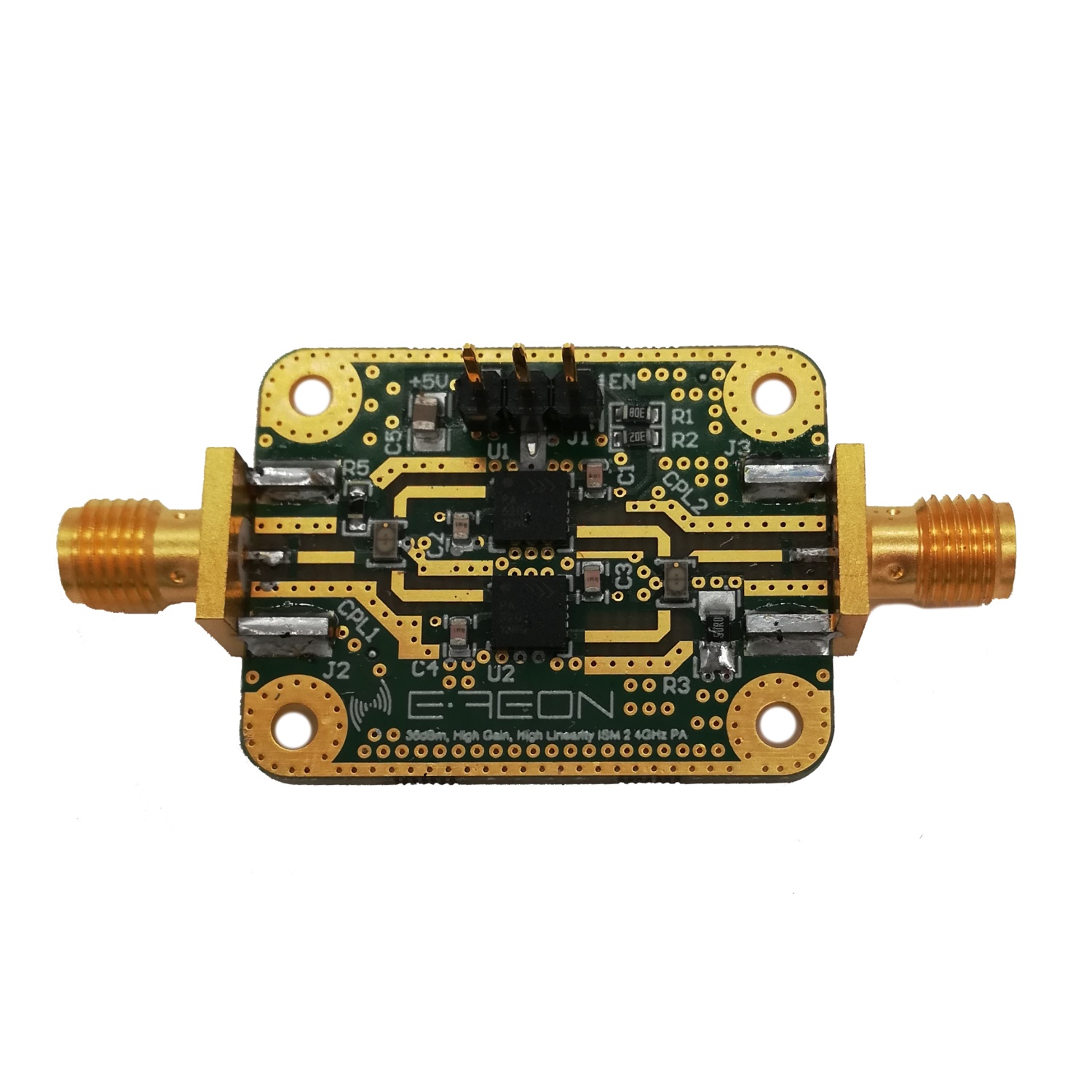

E-REON 2.4 Ghz 2W amplifier for QO-100

rating No review at the moment

2.4 Ghz linear amplifier with a power of 2W (33dBm), compatible with amateur radio activities on the QO-100 satellite (by using an optional bandpass filter).

Works with a 5V power supply and an input power of -8dBm to -2dBm max., for a gain of +36dB.

Supplied with: 1 2.4Ghz 2W E-REON amplifier, assembled and tested.

This material is intended only for amateur radio or laboratory use on the 2.4 to 2.45 Ghz band.

More details

This material is no longer available

Data sheet

Frequency range: 2400 à 2500 MHz
Bandwidth: 100 Mhz
Minimum input power: -8 dBm
Maximum input power: -2 dBm
Max RF output power : 33dBm, 2 watts @ 5V
Impedance: 50 Ohms
Connector: SMA Female
Emission gain: +36dB
Power supply: 5V DC
Consumption: 1.4A @ 2W and 380mA (idle)

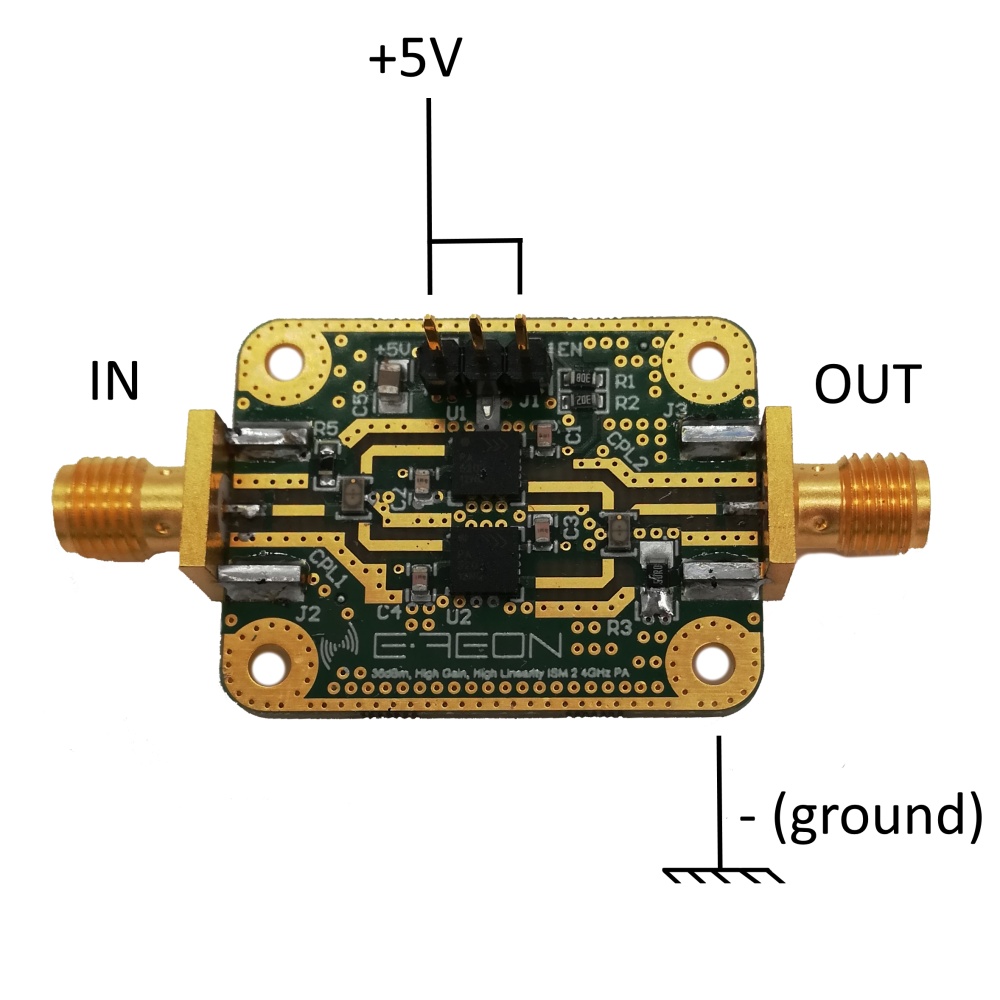

The (EN) pin activates the amplifier: + 5V to switch it on and 0V to deactivate it
Weight: 47g
Dimensions: 25 x 32 mm (25 x 52 mm with SMA connectors)
2 years warranty*

* The warranty does not cover the PA and damage that may result from an assembly error, an incorrect adjustment of the antenna (ROS), a maximum input power not respected, a short circuit power supply or coaxial line and damage from electrostatic discharge.

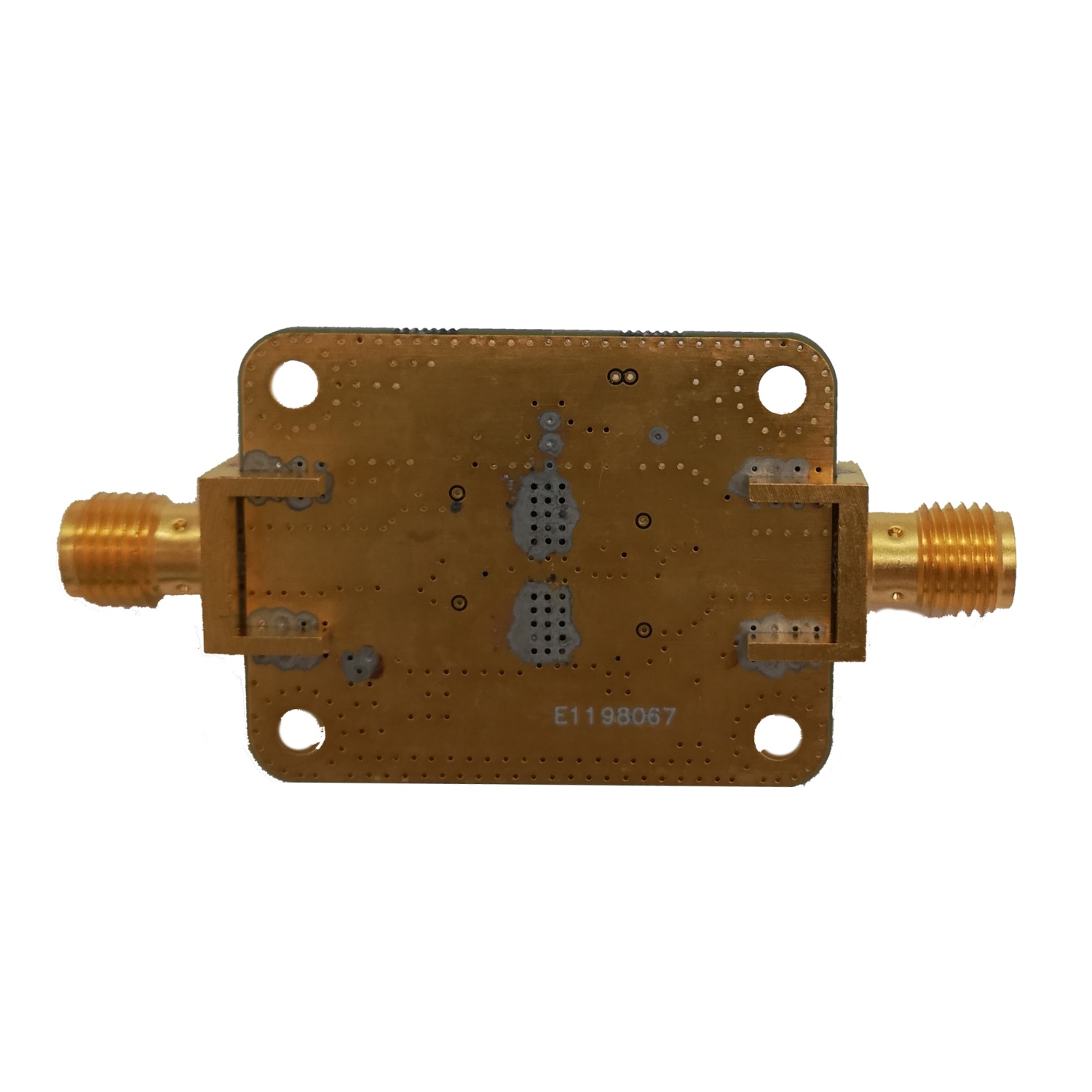

In operation, this amplifier heats up enormously, it is strongly recommended to use a heat sink under the PCB, in order to preserve the longevity of the amplifier.

This material is intended for amateur radio or laboratory use only on the frequency band 2.4 to 2.45 Ghz (13cm).
