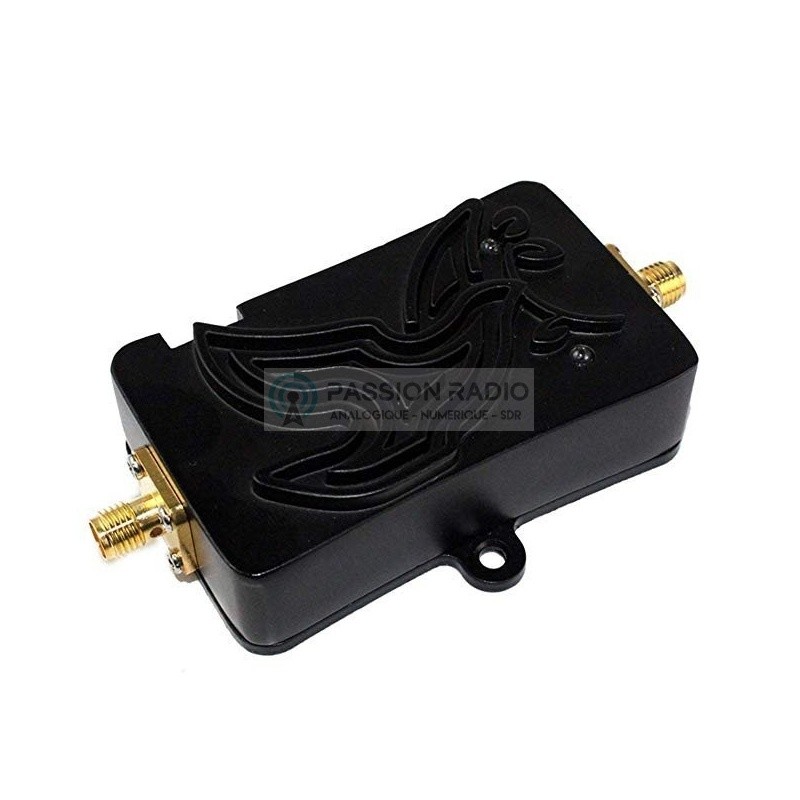

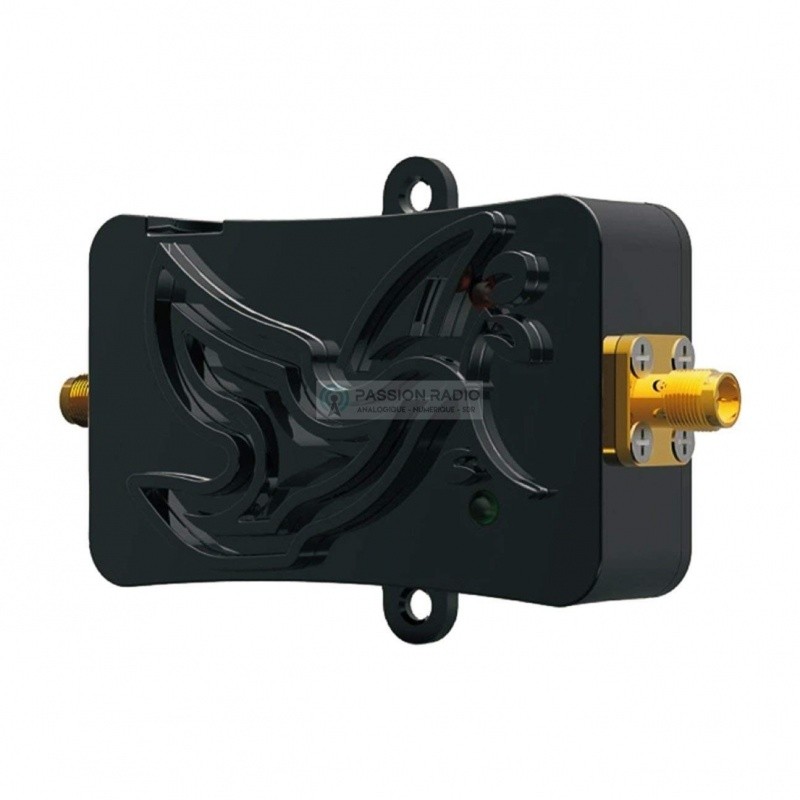

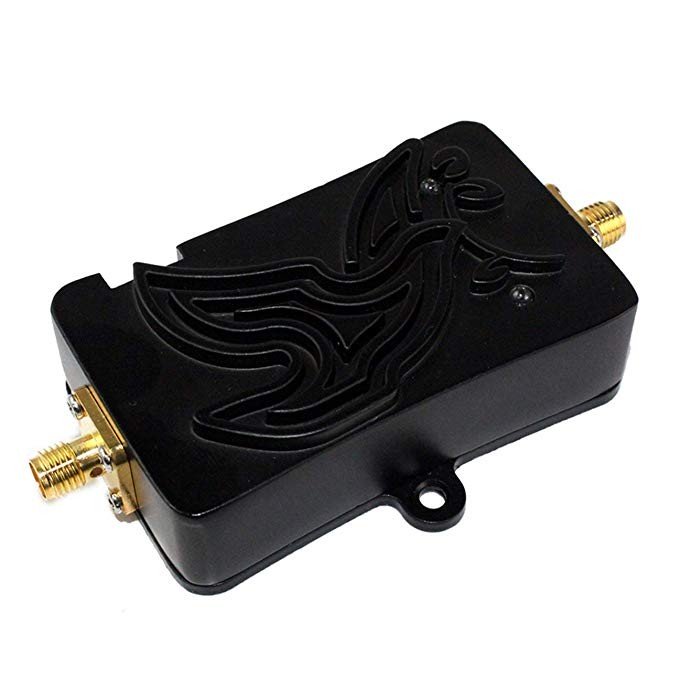

RF Amplifier 2400 MHz (4W) EDUP EP-AB007 for QO100 EDUP Satellite & QO-100 QO100-EDUP-AB007-4W-796 View larger

EDUP

QO100-EDUP-AB007-4W-796

New product

China

RF Amplifier 2400 MHz (4W) EDUP EP-AB007 for QO100

rating No review at the moment

EDUP EP-AB007 amplifier for the amateur radio band 2400Mhz (13cm), this 2.4Ghz amp of 4W theoretical, is capable of delivering an effective power of 2W with a power input of 100mW max.

This RF amplifier can be used with following SDR hardware: LimeSDR mini, HackRF One, Adalm-Pluto.

It is compatible for use in 2.4Ghz transmission on the QO-100 amateur radio satellite.

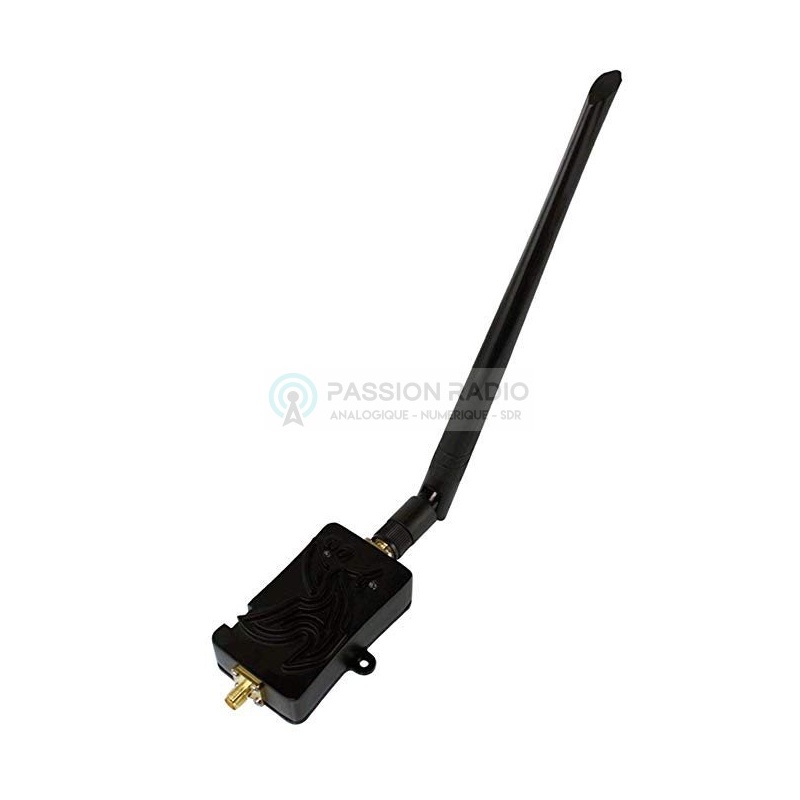

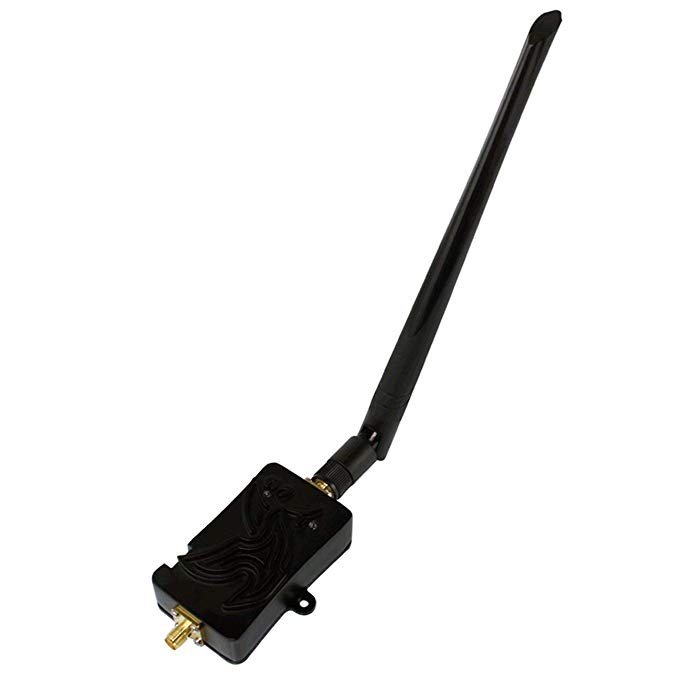

Comes with: 1 EDUP EP-AB007 2.4Ghz RF Amplifier, 1 power charger 220V, 1 cable RP-SMA Male (reverse SMA) - SMA Male, 1 WIFI antenna 6dBi in RP-SMA.

This material is reserved for amateur radio use only and on amateur satellite band from 2400 to 2450Mhz.

More details

This material is no longer available

Data sheet

Specifications EDUP EP-AB007 2400 Mhz amplifier

Frequency range: 2400 - 2500 MHz
Max. Input power : 100mW
Max. Output power : Theoretical 4W - 2W maximum according to use
Impedance: 50 Ohms
Connector: SMA Female (TX side) and RP-SMA female (RX side antenna)
Operating mode: bidirectional, half duplex, automatic switching via carrier detection
Frequency response: ± 1 dB
Input power: 5 to 20 dBm
Optimum input power: 9 to 15 dBm
Gain transmission: 17 dBm nominal
Gain reception: 11dBm
Operating temperature: -40 to 70 degrees
Operating humidity: Relative humidity up to 95%
Aluminum case
Weight: 450g
2 years warranty*

This material is intended only for amateur radio use on the 13cm band, 2400-2450Mhz.

* The warranty does not cover PA and loss of power, which may result from assembly errors, incorrect antenna adjustment (ROS), maximum input power not respected, short -circuit of the power supply or on the coaxial line.
