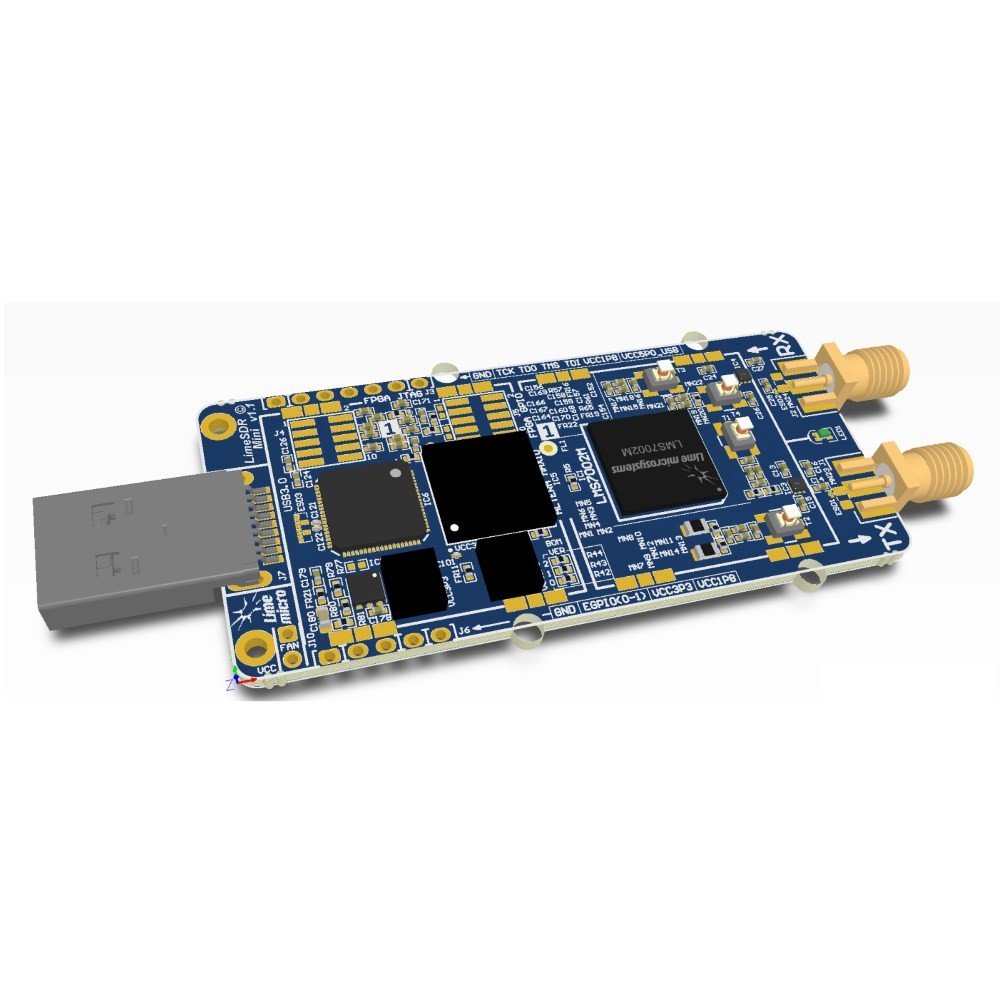

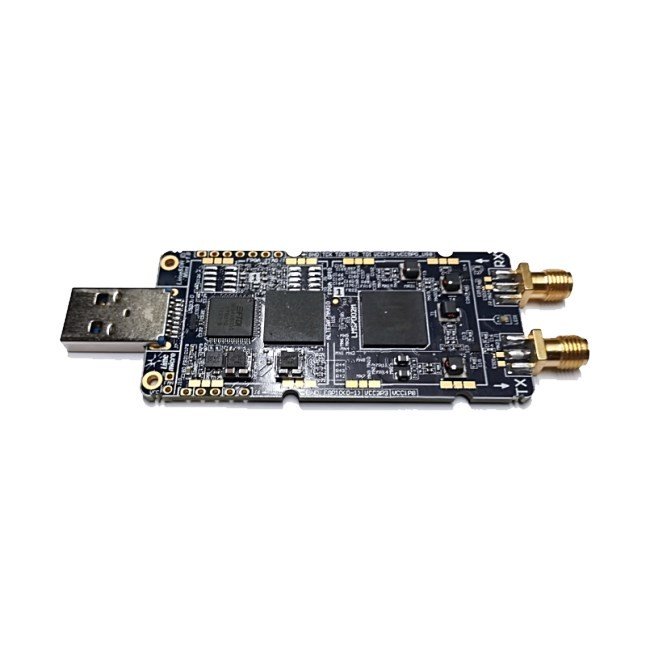

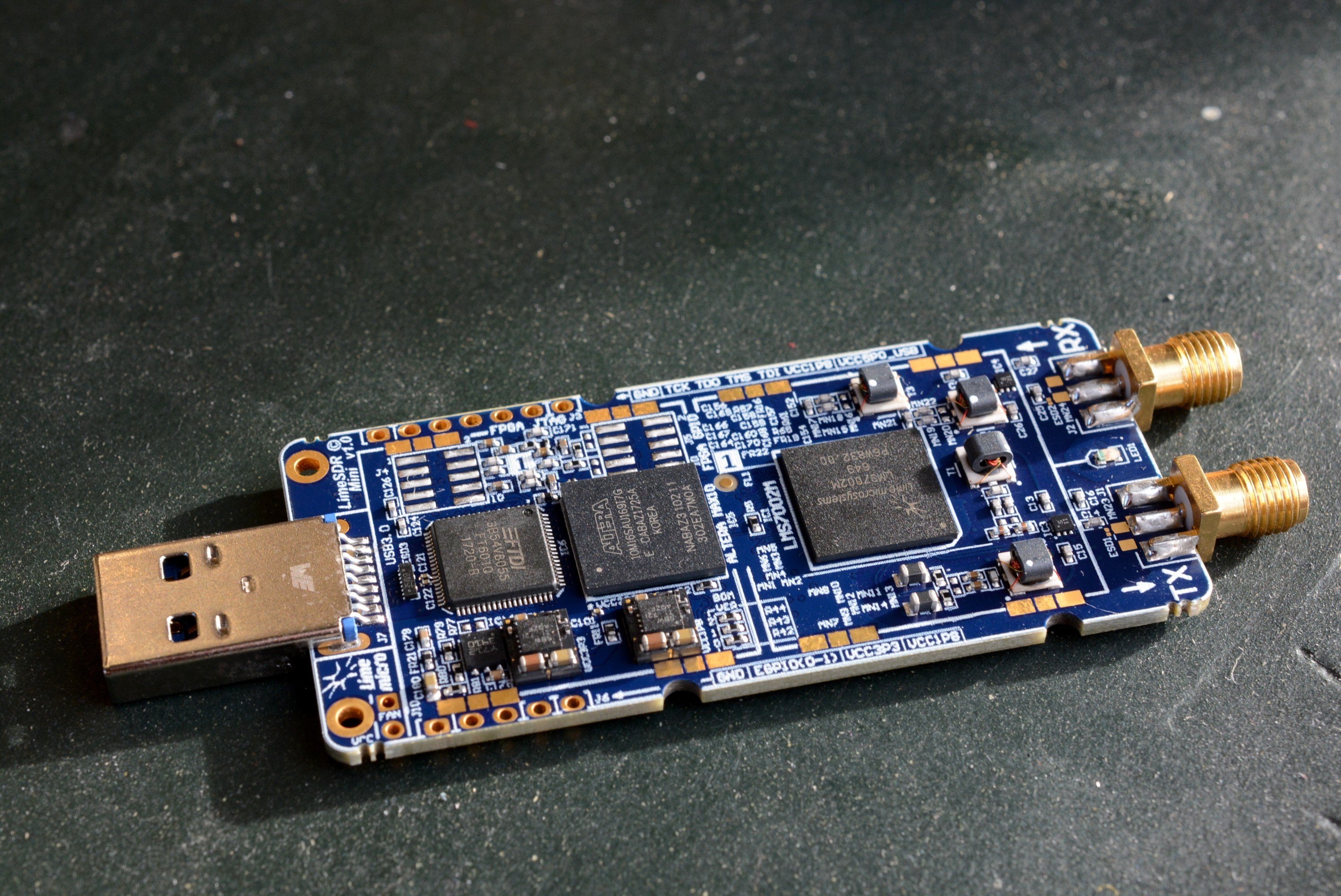

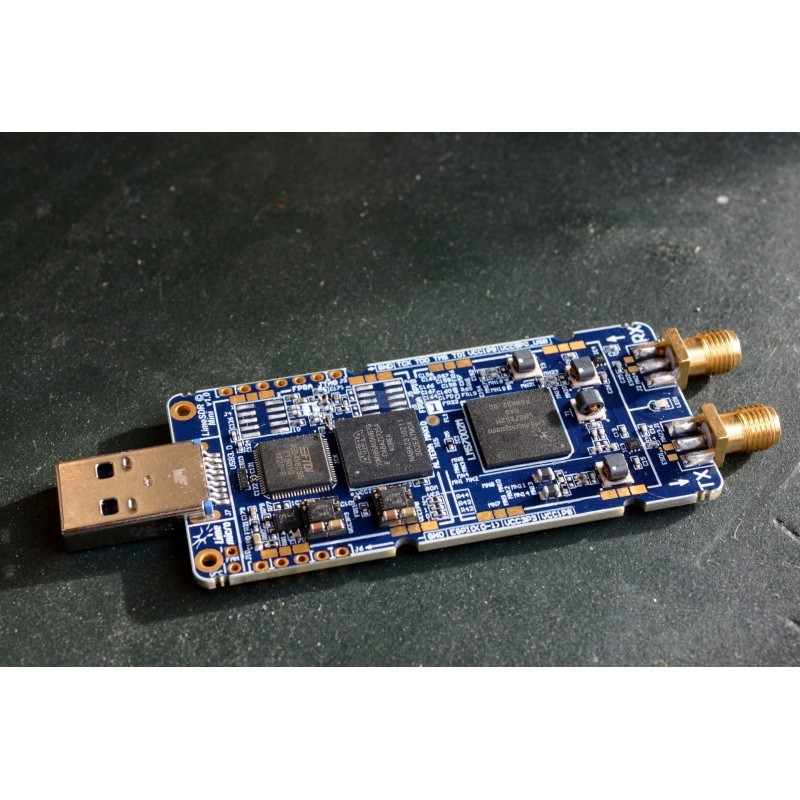

LimeSDR mini RX & TX 10MHz - 3.5GHz Full-Duplex Lime Microsystems SDR transceivers CROWD-LIME-MINI-667 View larger

Lime Microsystems

CROWD-LIME-MINI-667

New product

United Kingdom

LimeSDR mini RX & TX 10MHz - 3.5GHz Full-Duplex

rating No review at the moment

The LimeSDR is an open source SDR transceiver covering RF frequencies from 10 MHz to 3.5 GHz in full duplex , 1x1 mimo and 30.72 MHz bandwidth.

RF Transmitter: Lime Microsystems LMS7002M
FPGA: Altera MAX 10
USB 3.0
12 bit

Works with Windows GNU Radio, LimeSuite and HDSDR. On Linux with GNU radio.

This material is intended for use in the laboratory or R&D.

The LimeSDR is available without accessories, case, antenna (optional) or pack.

Converter to the HF card Ham it Up is compatible in reception and transmission with the LimeSDR mini and for an input power of 5mW max.

Available in 2 versions: Single card or pack ready to use.

Delivered with: 1 LimeSDR mini, barebone or full pack.

Antennas compatible in SMA male: Diamond SRH-789, ANT500 or ANT700.

More details

This material is no longer available

Download

Win Drivers LimeSDR Mini

USB Drivers LimeSDR Mini for Windows 9.88M

LimeSuiteGUI

Software for Windows LimeSuiteGUI 3.42M

Data sheet

Features LimeSDR Mini

RF Transceiver: Lime Microsystems LMS7002M
FPGA: Altera MAX 10 (10M16SAU169C8G)
169 pins
16 K The
549 KB of M9K memory
2,368 KB of user flash memory
4 split phase loops (PLL)
GPIO
FPGA via JTAG
EEPROM memory: 2 x 128 KB for RF Transcontroller firmware and data
Flash memory: 1 x 4 MB of flash memory for data
8 pins FPGA GPIO (3.3 V)
USB 3.0 Type-A (FTDI FT601 controller)
2 RF coaxial connectors: female SMA (each can be switched between high and low bands)
U.FL connector for external clock
VCTCXO on board at 30.72 MHz

Dimensions: 69 mm x 31.4 mm
Weight: 20 grams
CE Standards
