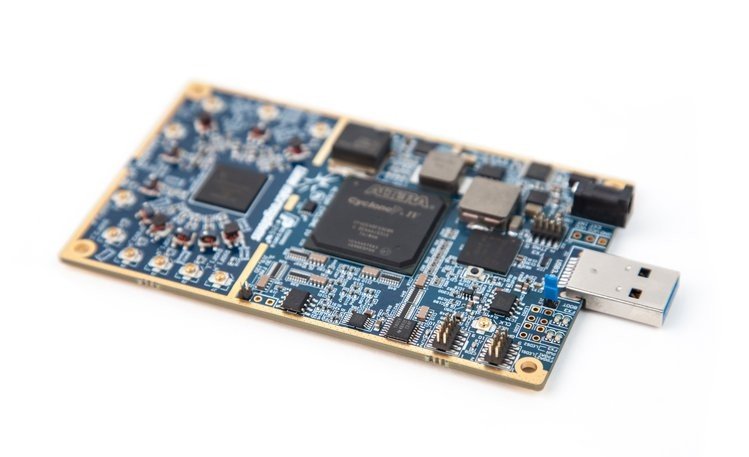

LimeSDR RX & TX 0.1MHz - 3.8GHz Full-Duplex 2x2 MIMO

The LimeSDR is an open-source SDR receiver and transmitter covering frequencies from 0.1MHz to 3.8GHz full-duplex with a bandwidth of 64Mhz, 2x2 Mimo. It can transmit and receive UMTS, LTE, GSM, LoRa, Bluetooth, Zigbee or RFID, to name but a few.

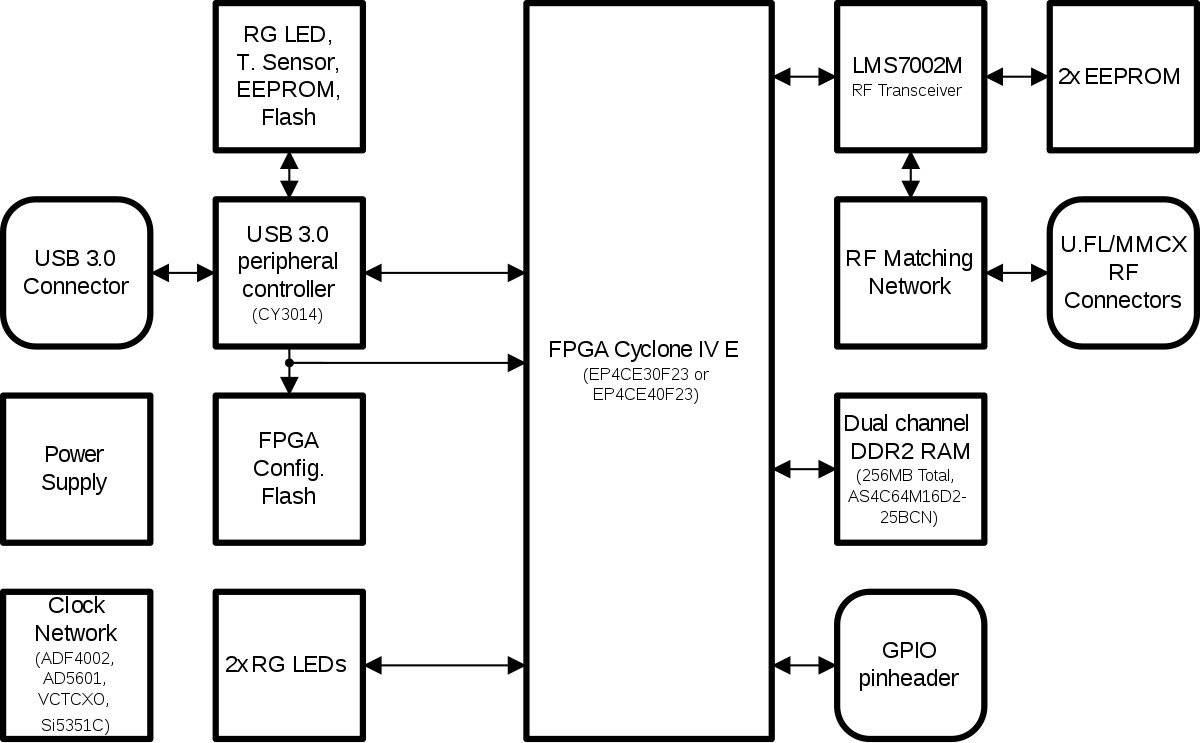

RF Transceiver: Lime Microsystems LMS7002M MIMO FPRF
FPGA: Altera Cyclone IV
Memory: 256 MB DDR2 SDRAM
USB 3.0 controller (Type A)
Continuous frequency range: 100 kHz - 3.8 GHz
Bandwidth: 61.44 MHz
RF connection: 10 U.FL connectors (6 RX, 4 TX)
Output power: Up to 10 dBm
Multiplexing: 2x2 MIMO
Status Indicators: Programmable LEDs
Dimensions: 100 mm x 60 mm

This material is intended for use in the laboratory or R&D.

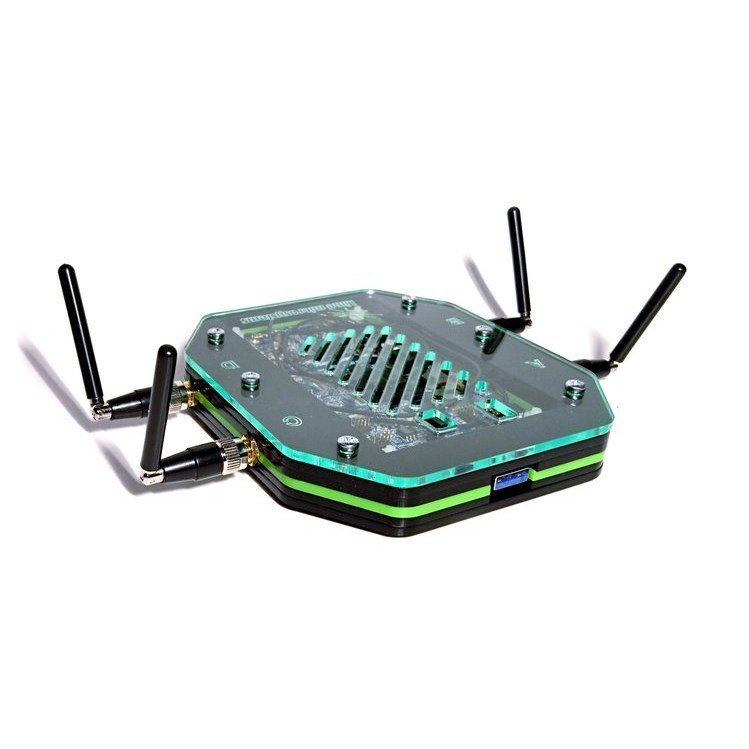

Delivered with: 1 genuine LimeSDR, without case nor antenna (in option).

Download

LimeSuiteGUI

Software for Windows LimeSuiteGUI 3.42M
