Wire free electronic printed circuit prototyping board PERF2+

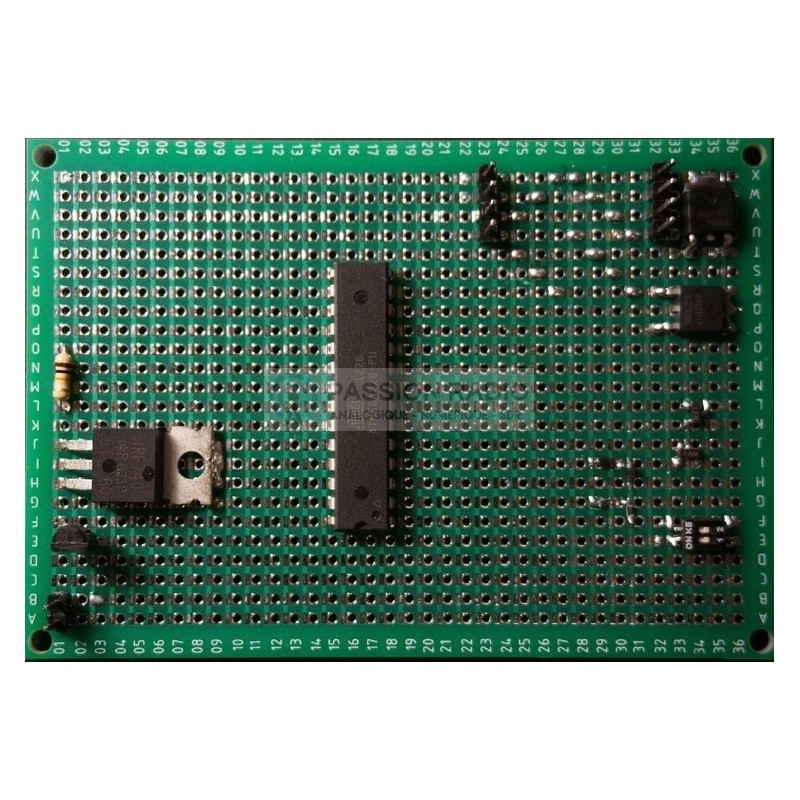

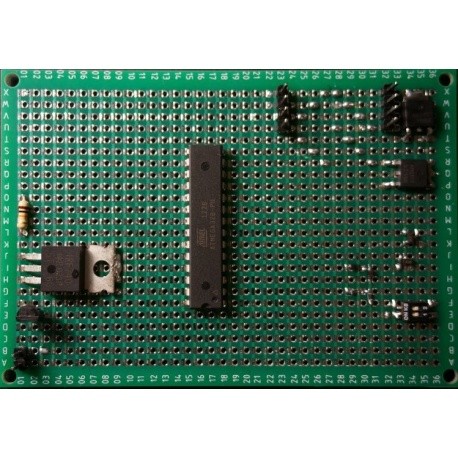

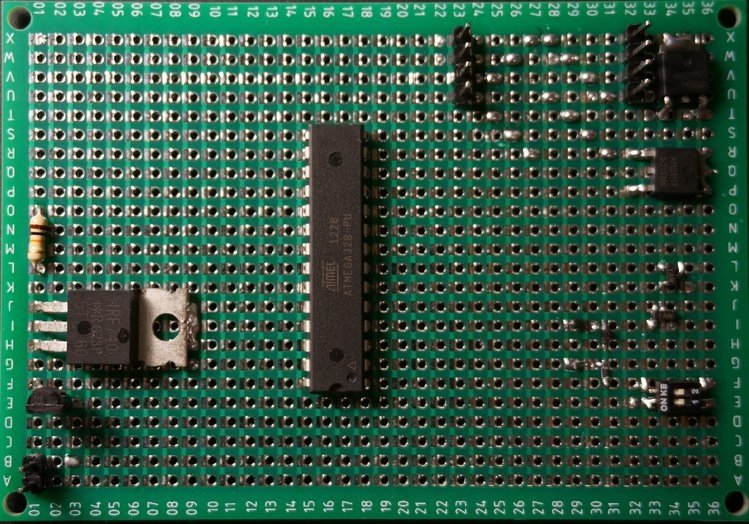

PERF2+ is an electronic prototyping board designed for electronics enthusiasts and to make prototyping easier and faster.

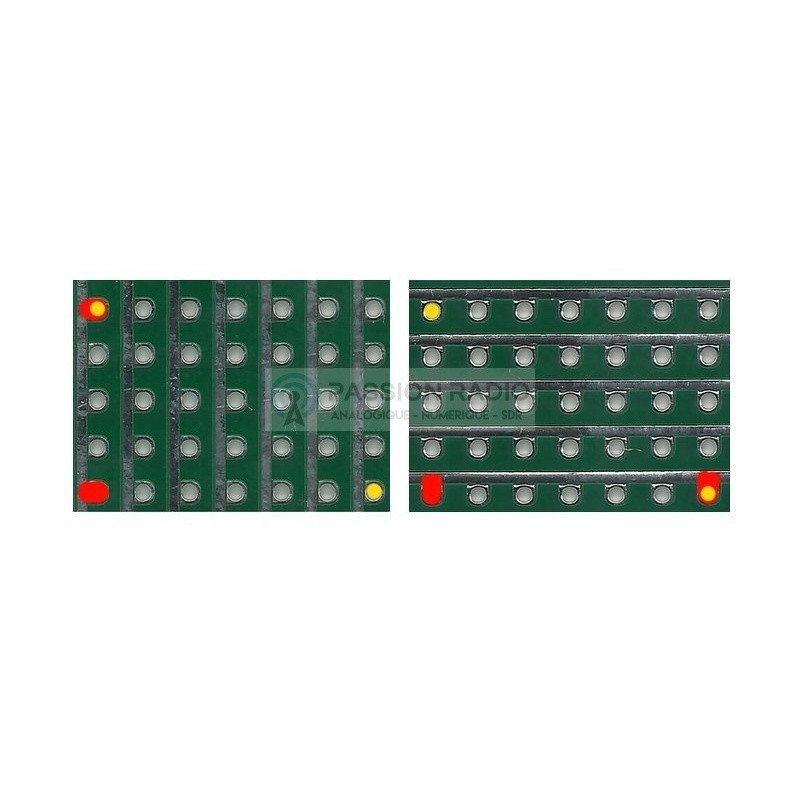

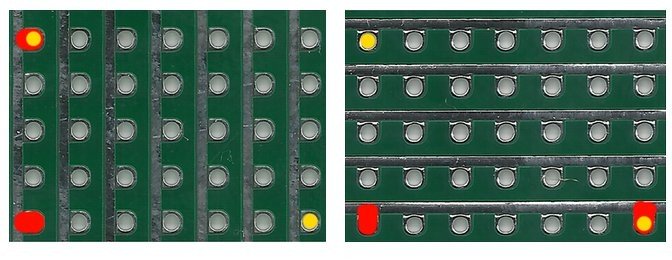

Perf2+ is a double-sided circuit board with perpendicular marks on each side. This unique design allows two hole/pad to easily relate to a welding bridge.

36 x 24 hole grid
Drill Size 1.016mm / 0.04"
Anti-oxidation coating
Dimensions: 68mm x 100mm x 1.6mm
3mm mounting holes

Delivered with: 1 card PERF2 + of 6,8cm x 10cm x 0,16cm
