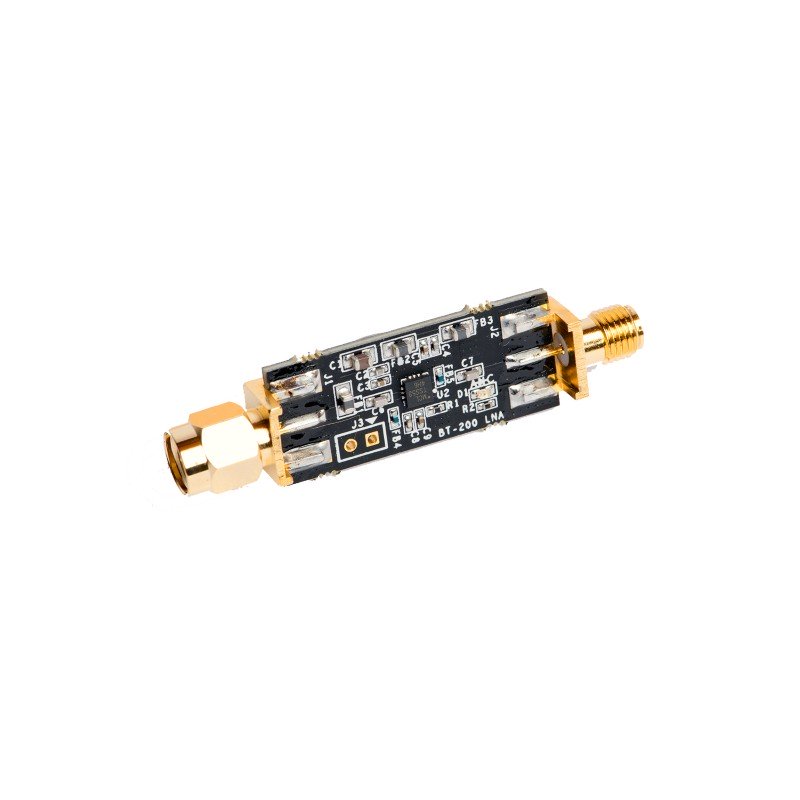

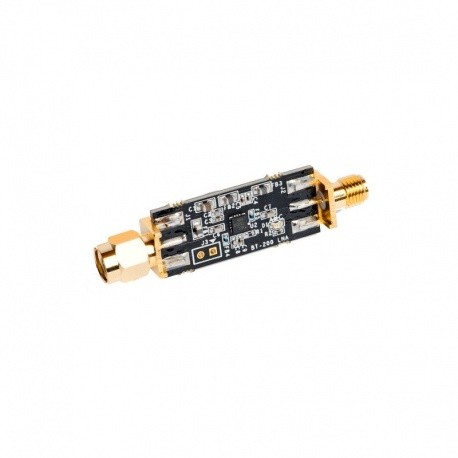

BT-200 Nuand RX LNA for BladeRF 2.0 micro

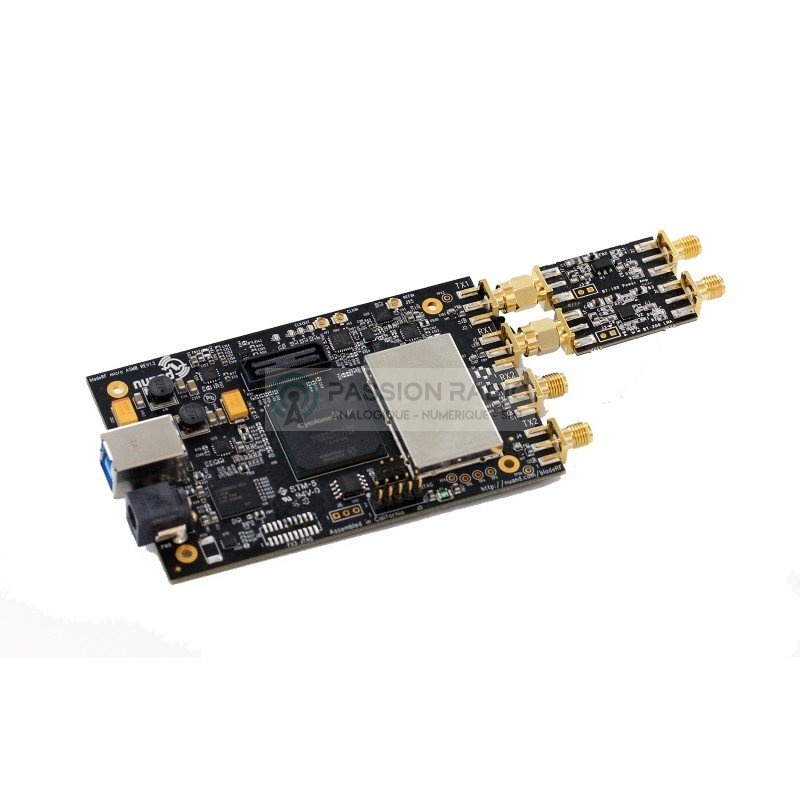

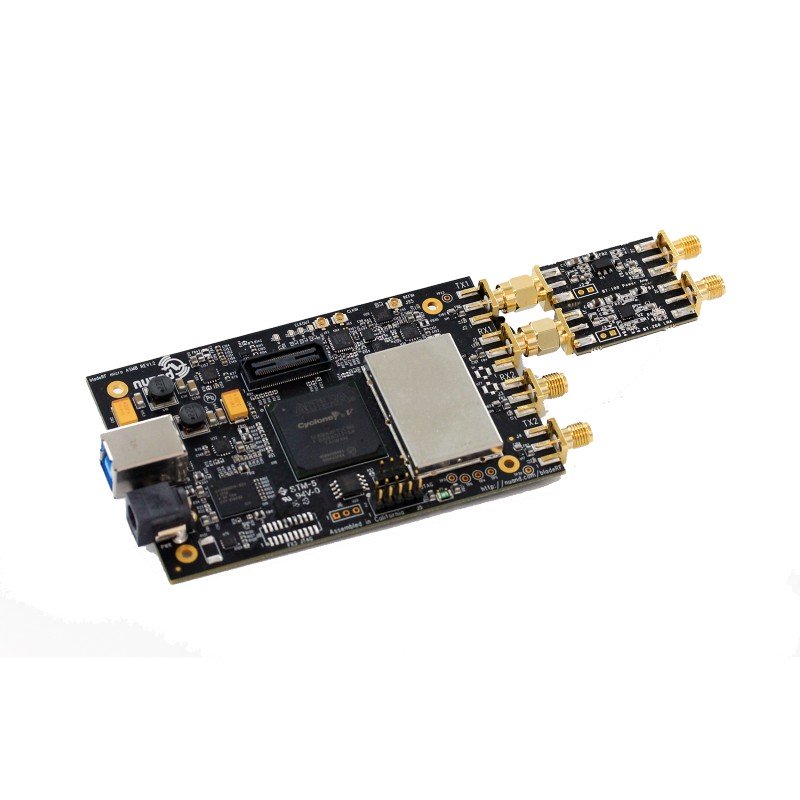

The BT-200 is a RX LNA, powered by Bias-T, to connect to the SMA RX socket of the bladeRF 2.0 micro xA4 and xA9.

MMIC: TSS-53LNB+
TX frequency: 500 MHz to 5 GHz
Consumption: 300mW
Green LED power indicator
Gain: +20.2dB @ 200MHz, +16dB @ 2.4GHz
Ultra low noise figure

Comes with: 1 Nuand BT-200

Accessories

Pigtail SMA Male - SMA Male 15/30/50/100cm
Pigtail RF adapter SMA Male to SMA Male to connect for example a converter Ham it up to a HackRF One, or SDRPlay, and any device with a SMA female connector. Coaxial cable RG 316 50 ohms. Available in
5,00 €
Out of stock, available 7-10 days
