BT-100 Nuand TX Power Amplifier for BladeRF 2.0 micro Nuand SDR accessory NUAND-TX-BT100-928 View larger

Nuand

NUAND-TX-BT100-928

New product

USA

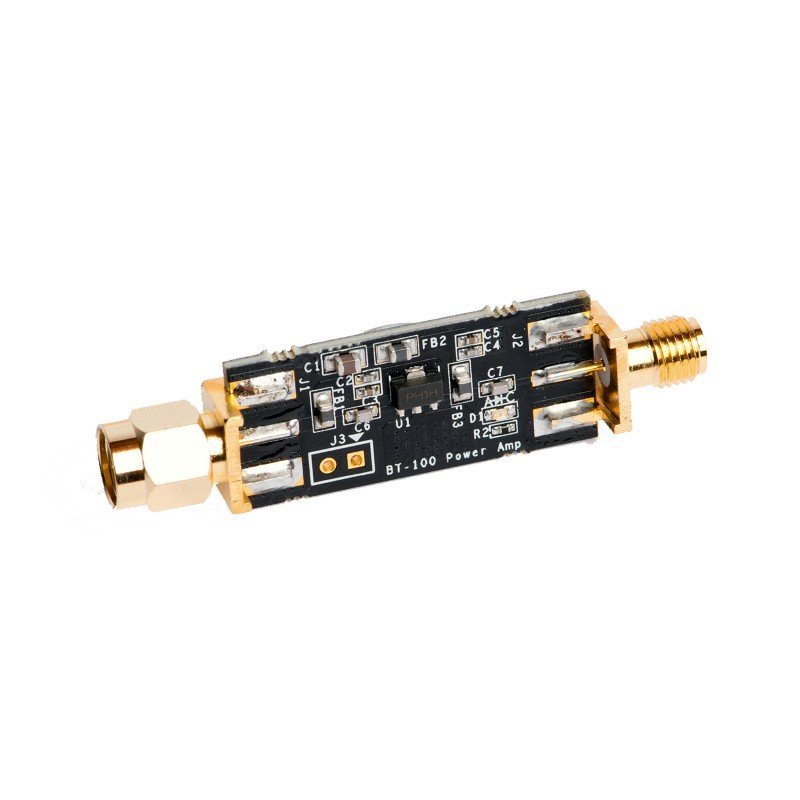

BT-100 Nuand TX Power Amplifier for BladeRF 2.0 micro

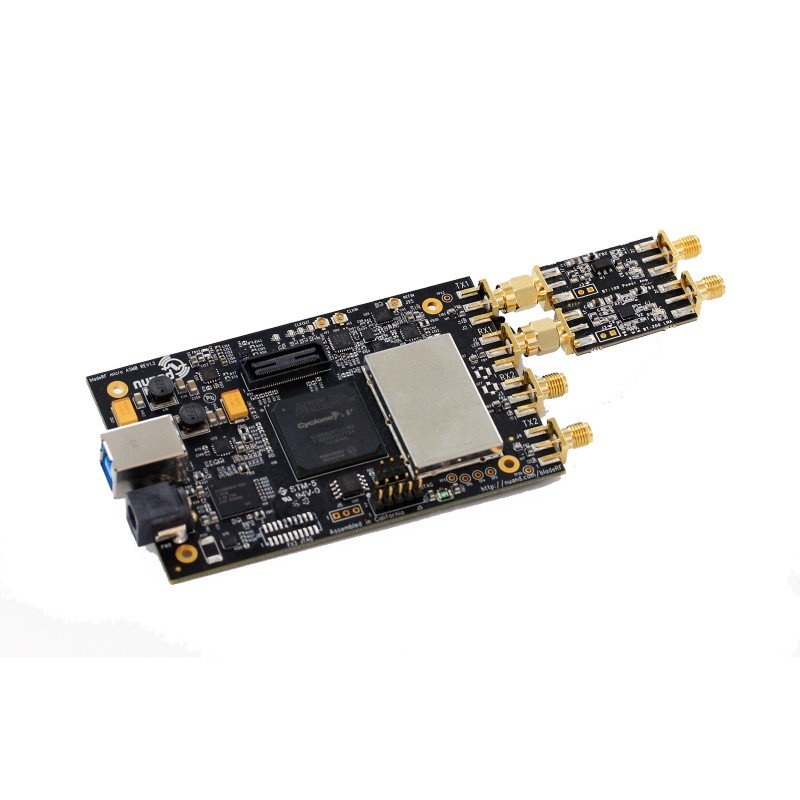

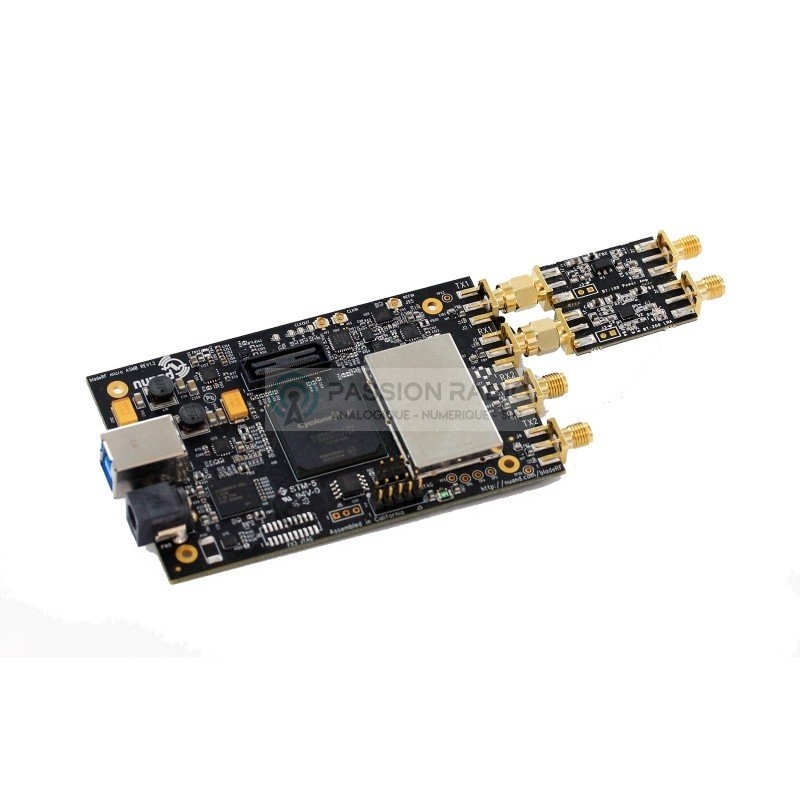

The BT-100 is a TX power amplifier, powered by Bias-T, to connect to the SMA TX socket of the bladeRF 2.0 micro xA4 and xA9.

MMIC: PHA-1H +
TX frequency: 50 MHz to 6 GHz
Consumption: 200mW
Blue LED power indicator
Gain: +15.6 dB at 200 MHz, +10.7 dB at 2.4 GHz
Low noise figure

45,00 € tax incl.

In stock
