Xiegu G90 TRX SDR 0-30Mhz 20W SSB/CW/AM + Tuner

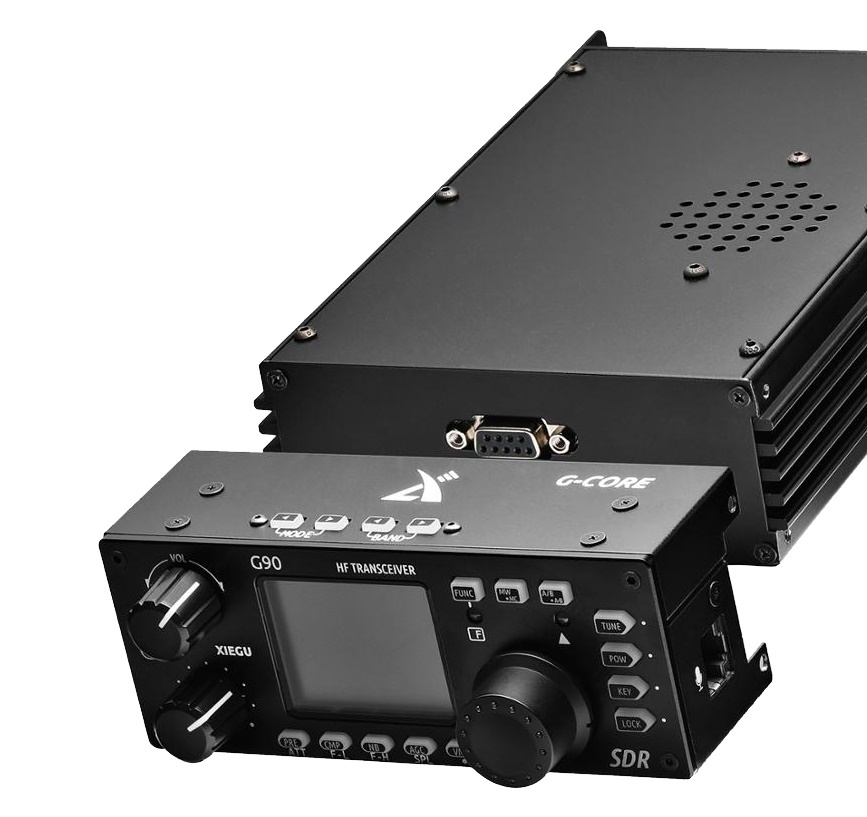

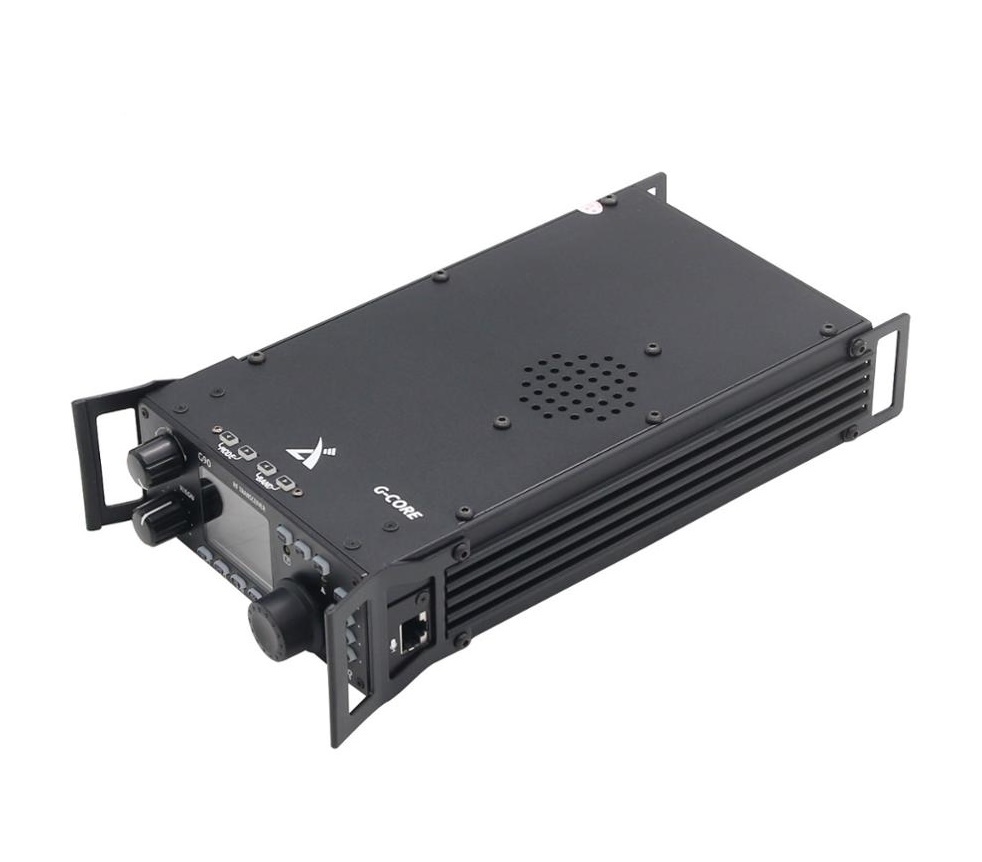

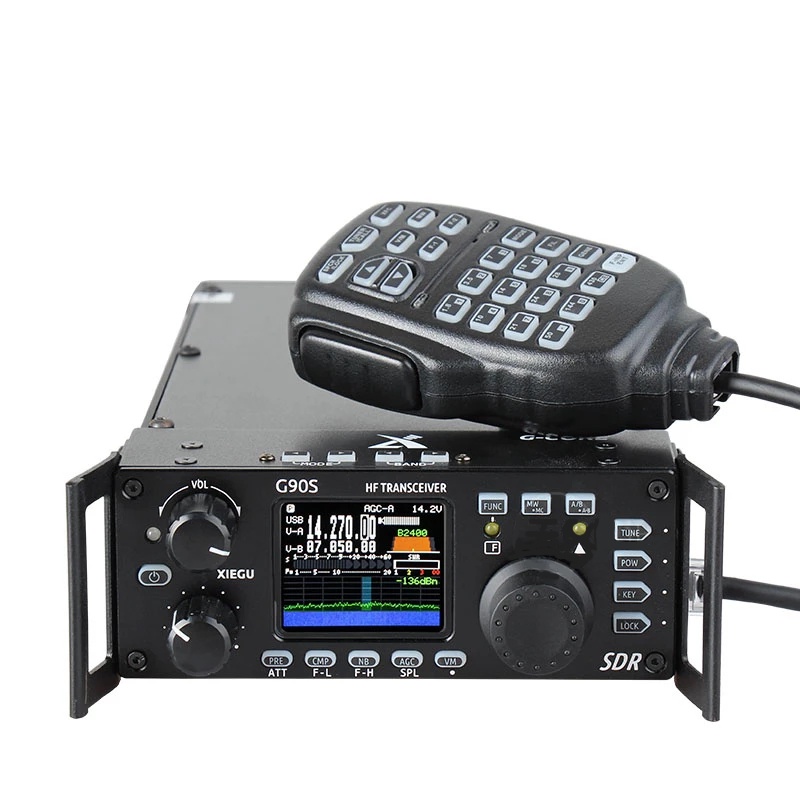

The Xiegu G90 is a 20W portable HF amateur radio transceiver with a 24-bit SDR architecture, a built-in automatic antenna tuner, detachable display, 3cm (1.8 inch) high-brightness color TFT LCD screen.

The G90 covers reception without holes from 0.5 to 30Mhz and transmission on amateur radio bands from 160m to 10m.

It offers excellent transmit-receive performance and is configurable to have all the necessary functions from the station without having to enter menus.

The on-screen display is rich in information and with the spectrum display in real time. Firmware update functionality.

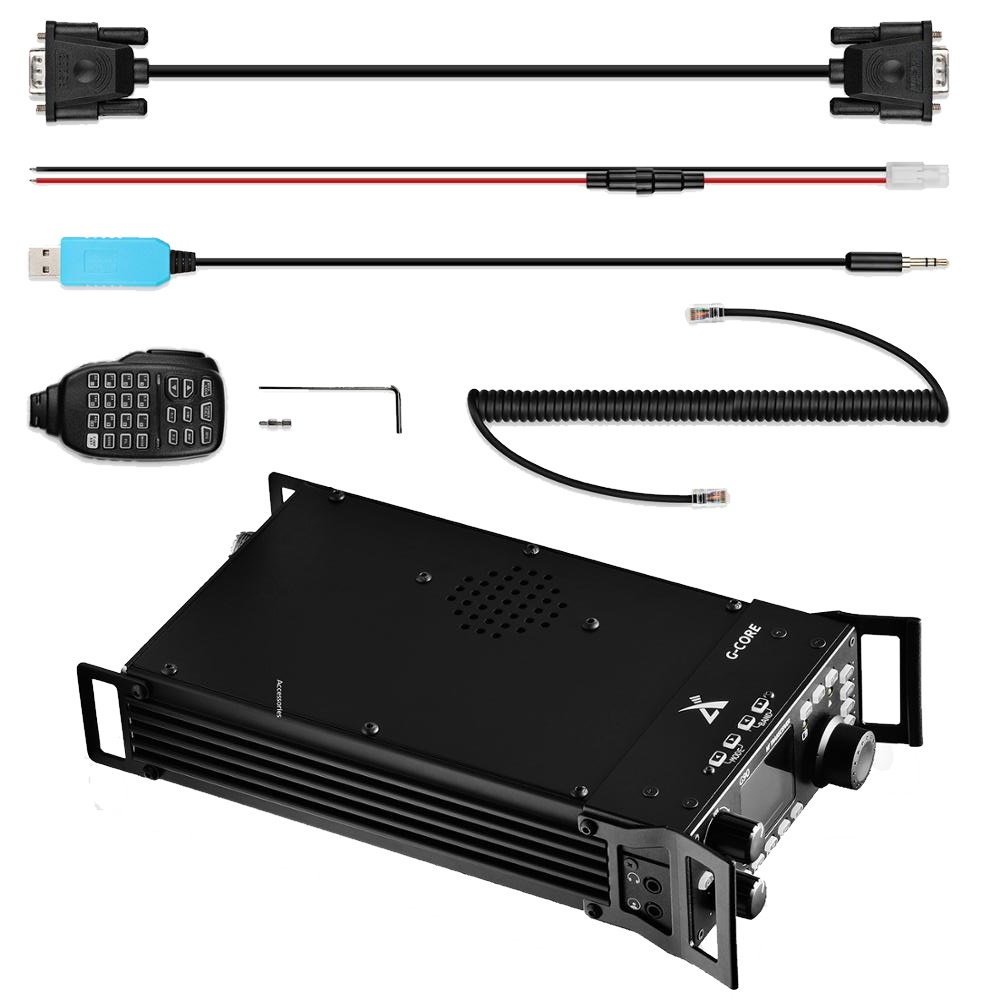

Delivered with: 1 G90 original manufacturer Xiegu, 1 multifunction microphone, 1 DATA cable, I power cable, manual in English.

More details

Download

Manual Xiegu G90 (EN)

Xiegu G90 documentation and user manual in English 11.59M

Firmware G90_FW_V1.74

Version 1.74 for Xiegu G90, May 2020. 8.15M

Manual Xiegu G90 (FR)

Xiegu G90 manual in French, translated by Thierry de ON2CQ 1.33M

Firmware G90_FW_V1.75

Version firmware 1.75 for Xiegu G90, september 2020. 8.08M

Connection diagram CE-19

2.17M

Tutorial CE-19 for G90 & X5105

Configuration tutorial for connecting the CE-19 expansion port for Xiegu G90 and X5105. 211.93k

Windows drivers PL2303

Windows drivers Prolific PL2303, for XP, WIN7, WIN8 and PL-2303 check chip version tool. 4.97M

Data sheet

Reception: 500 kHz to 30 MHz
Transmission hamradio version: 160m, 80m, 60m, 40m, 20m, 17m, 15m, 12m and 10 meters
Transmission export version: from 0.5 to 30Mhz (without gap)
Power: 20W (SSB / CW / FM) and 5W in AM at 13.8VDC
Modulation mode: A1A (CW), A3E (AM), J3E (USB / LSB)
With built-in automatic antenna tuner
Antenna impedance: 50Ω
Spectrum bandwidth (waterfall): ± 24khz
SDR narrow band filter, CW mode 50 Hz
I/Q output
24-bit SDR, 48 kHz sampling rate
Preamp, compression, AGC control, memory
Split function with 2 independent VFOs
Minimum frequency step: 10Hz

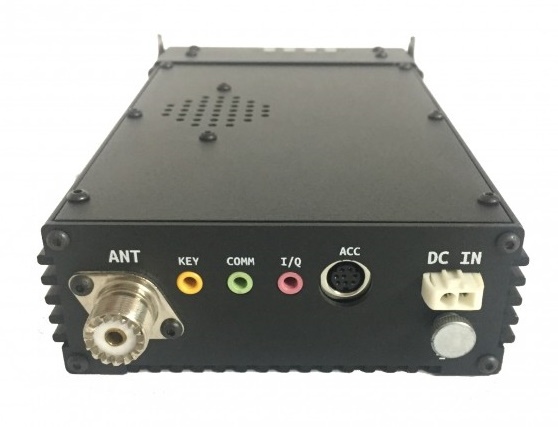

Antenna connector: UHF Female (SO-239)
Temperature range: 0 ° C to + 55 ° C
Frequency stability: ± 10ppm (after 30mn) 1ppm after 1h
Supply voltage: 13.8VDC + 15%
Consumption: 750mA in standby, 8A in emission max.
Operating voltage: 10-15V DC

The Xiegu G90 is rated 4.7 on the review website eHam.net.

Receiver settings

Reception sensitivity: Better than 0.25 uV at 12 dB Sinad (PRE: ON)
Dynamic range: 90 dB
Elimination of the adjacent channel: 60 dB
Audio output power: 0.5 W to 4 Ω

Transmitter settings

RF output power: 20W max.
Parasitic suppression: ≥50 dB
Carrier suppression: ≥40 dB
Sideband removal: ≥50 dB

Dimensions: 120 * 210 * 45mm
Weight: 1.6Kg
CE RED standards, 2 year warranty (excluding PA)
