Yaesu FT-818 ND QRP mobile HF VHF UHF TCXO YAESU HF / 50Mhz Transceiver YAESU-FT-818ND-584 View larger

YAESU

YAESU-FT-818-HAM-584

New product

Japan

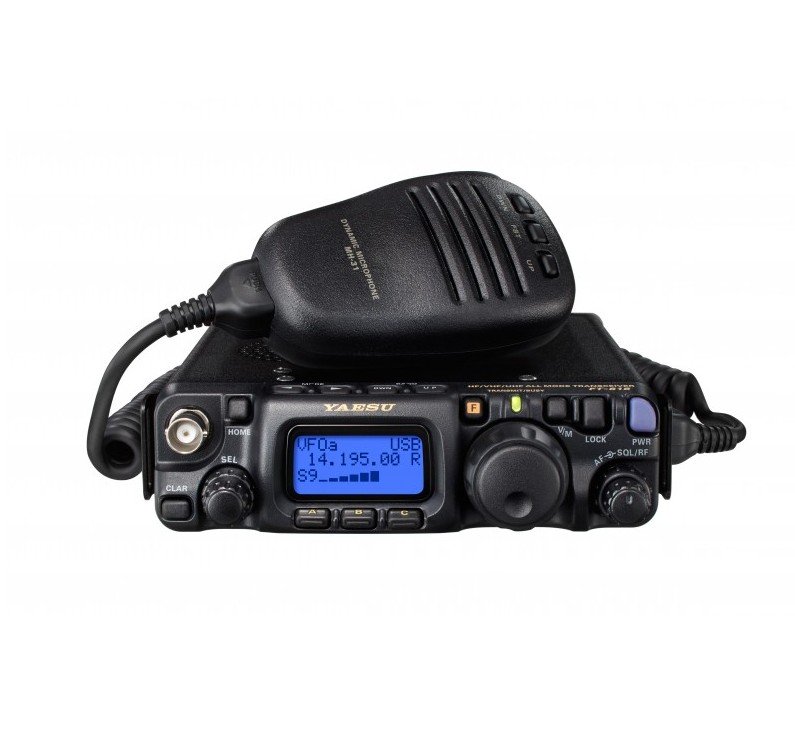

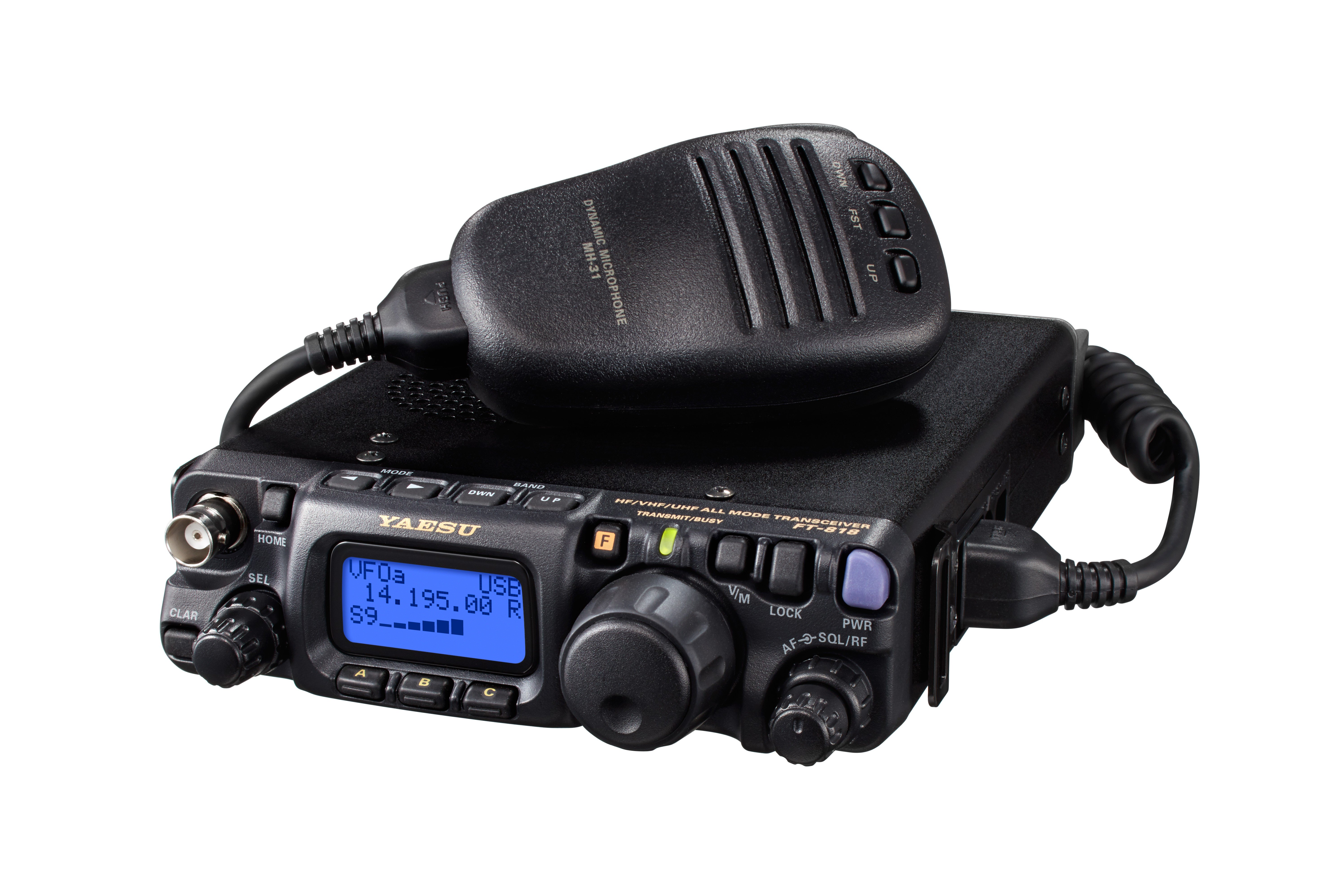

Yaesu FT-818 ND QRP mobile HF VHF UHF TCXO

The new Yaesu FT-818 ND is the replacement of the famous QRP FT-817 ND from Yaesu.

Compared to the FT-817, the FT-818 is equipped with a TCXO-9 and offers 6W on 13.8V and 2.5W power supply on built-in 1900mAh battery.

The Yaesu FT-818 ND covers in reception the bands of 0.1 to 56 MHz, 76-108, 118-164 and 420-470 MHz and all amateur radio bands in emission from 160m to 70cm and in modes USB, LSB, CW , AM, FM, W-FM, AFSK (RTTY, PSK31) and Packet 1200/9600 bauds.

2 antenna connectors: a female BNC in front and a SO-239 (UHF female) to the back.

Available in commercial version (open TX all bands).

Comes complete with: 1 FT-818ND, 1 MH-31A8J microphone, 1 9.6V 1900mAh Ni-MH battery (SBR-32MH), 100-240V EU plug (PA-48) battery charger, 50/144/430 MHz antenna ( YHA-63), power cable (E-DC-6), shoulder strap, ferrite, rubber foot, user manual.

More details

699,00 € tax incl.

Out of stock, available in 3-4 weeks

Download

Manual Yaesu FT-818

Manual Yaesu FT-818 in english 22.67M

Data sheet

Technical specifications Yaesu FT-818 ND

Frequency ranges:

RX 100 kHz - 33 MHz
RX 33 MHz - 56 MHz
RX 76 MHz - 108 MHz
RX 108 MHz - 154 MHz
RX 420 MHz - 470 MHz

TX 1.8 MHz - 29.7 MHz
TX (5.3320 MHz / 5.3480 MHz / 5.3585 MHz / 5.3730 MHz / 5.4050 MHz)
TX 50 MHz - 54 MHz
TX 144 MHz - 146 MHz
TX 430 MHz - 440 MHz

Type of circuit:

Superheterodyne double conversion (SSB / CW / AM / FM)
Superheterodyne Single Conversion (WFM)

Modulation Type: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM), F1D (PACKET), F2D (PACKET)
RF output power: 6W (SSB / CW / FM), 2W (AM carrier) at 13.8V
Channels of memories: 208
Case size (W x H x D): 135 x 38 x 165 mm without antenna
Weight: 900 g (without battery, antenna and microphone)
