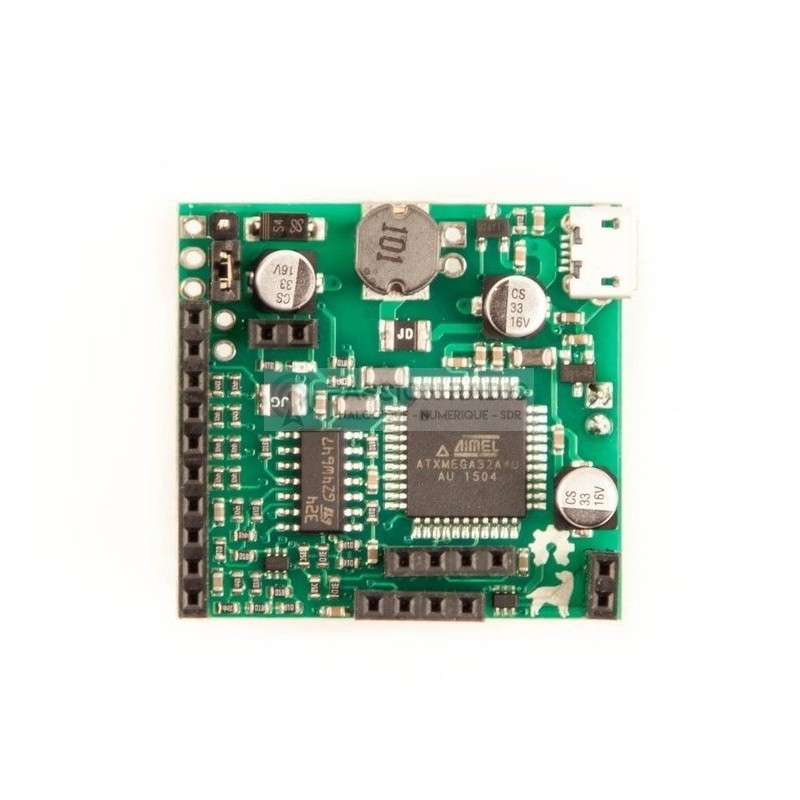

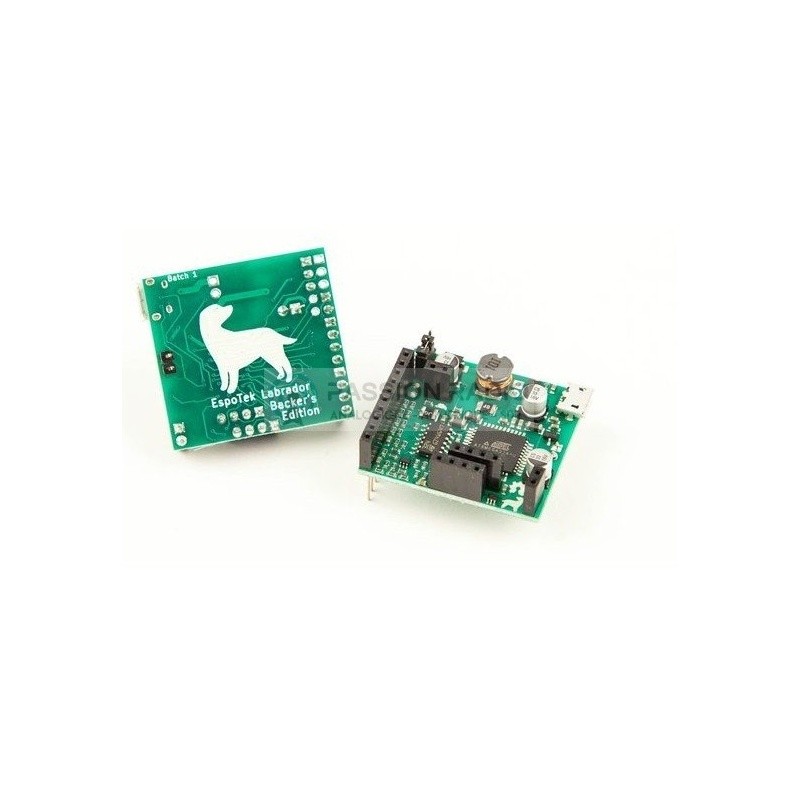

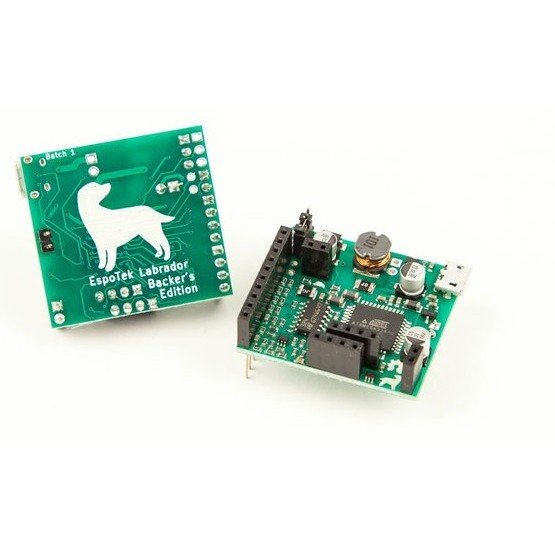

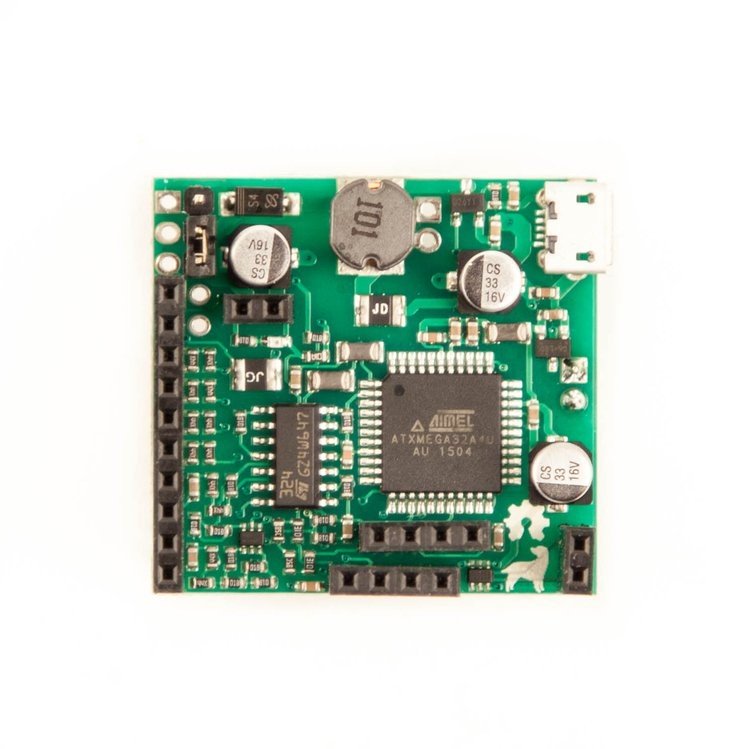

EspoTek Labrador

The EspoTek Labrador is a USB-connected mini electronic lab portable that includes an oscilloscope, signal generator, power supply, logic analyzer and multimeter.

Oscilloscope (2 channels, 750ksps)
Signal Generator (2 channels, 1 MSPS per channel)
Power supply (4.5 to 15 V, output 0.75 W max.)
Logic analyzer (2 channels, 3 MSPS per channel)
Multimeter (V / I / R / C)

EspoTek Labrador connects to any PC (Windows, Mac or Linux), Raspberry Pi or Android smartphone / tablet via USB OTG cable (not included).

Delivered with: 1 EspoTek Labrador card, without case, or USB cable (optional).

More details

Data sheet

Specifications EspoTek Labrador


Oscilloscope	Sample Rate	750ksps (shared)
	Bits per Sample	8, 12¹
	Bandwidth	~100kHz²
	Input Voltage Range	-20V to +20V
	Input Impedance	1 MΩ
	No. of Channels	2
	Coupling	AC/DC
Arbitrary Waveform Generator	Waveform types	Sin, Square, Triangle, Sawtooth, Arbitrary
	Sample Rate	1Msps
	Sample Depth	512 samples per channel
	Output voltage range	0.15V to 9.5V
	Bits per Sample	8
	Max. Current	10mA³
	Output Resistance	50Ω
	No. of Channels	2
Variable Power Supply	Voltage Range	4.5V to 12V
	Max. Power	0.75W
	No. of Outputs	1
	Source Impedance	Negligible⁴
	Ripple Voltage	+-300mV%@10V 10mA, +-700mV%@10V 100mA
Logic Analyzer	Sample Rate	3Msps per channel
	Supported voltage	3.3V, 5V, 12V
	No. of Channels	2
Digital Output	Voltage	3.3V
	Source Impedance	50Ω
Multimeter⁵	Input Impedance	1MΩ
	Measured Parameters	V, I, R, C
	Voltage Range	-20V to +20V
	Current Range	100uA to 10A
	Resistance Range	1 ohm to 100k
	Capacitance Range	10pf to 1mf
Supported Platforms	Windows	Windows 7, 8, 8.1 or 10. 32 and 64-bit supported.
	MacOS	10.10 (Yosemite) or later
	Linux	Ubuntu 14.04 or later (or similar). 32 and 64-bit supported.
	Android	Version 4.1 or later

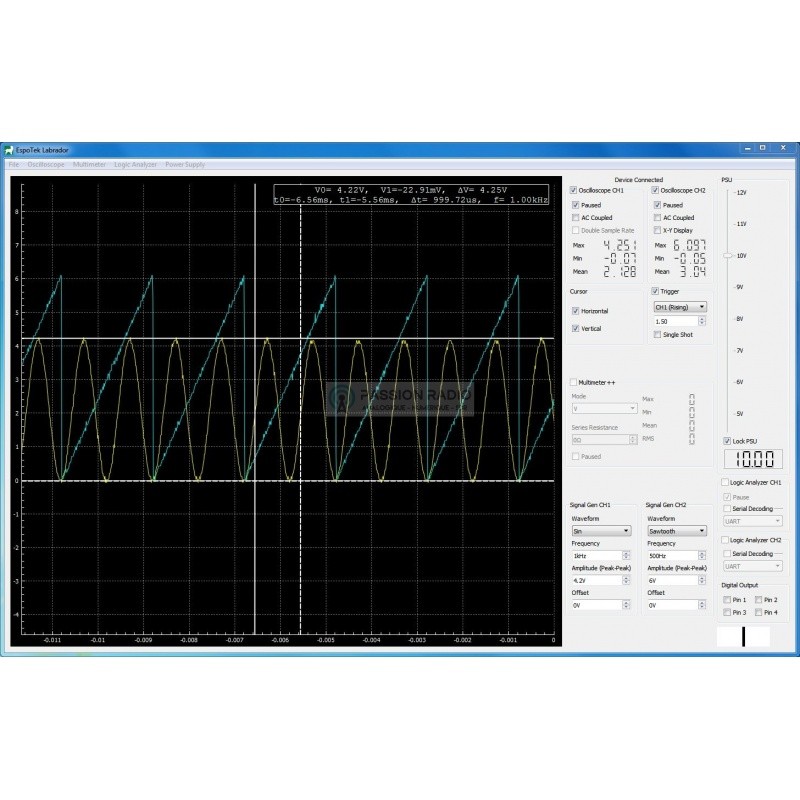

Documentation, WIKI and Windows software, MacOS, Linux at: https://github.com/EspoTek/Labrador/wiki

Android app on Google Play: https://play.google.com/store/apps/details?id=org.qtproject.example.Labrador&hl=en

All software is licensed under the GPL and the Creative Commons license.
