MoRFeus Signal Generator + RF Converter from 30Mhz to 6Ghz Crowd Supply RF measuring devices CROWD-MORFEUS-679

View larger

Manufacturer: Crowd Supply

Reference: CROWD-MORFEUS-679

Condition: New product

Country of origin:

USA

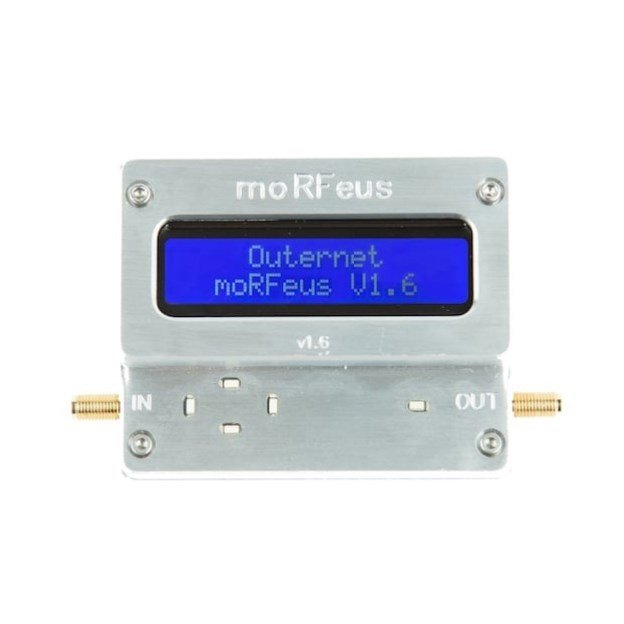

MoRFeus Signal Generator + RF Converter from 30Mhz to 6Ghz

No review at the moment

MoRFeus is a broadband frequency generator and upconverter & downconverter from 30 MHz to 6 GHz. With LCD screen and front adjustment knob.

MoRFeus is specifically designed to operate in 85 MHz to 5.4 GHz transmissions using these low-pass and high-pass filters.

Delivered with: 1 MoRFeus with aluminum case and mounted LCD screen.

More details

Data sheet

General Specifications MoRFeus

Input voltage: 5 V
ESD protection (RF IN and OUT ports): IEC 61000-4-2 contact discharge, 8 KV
Bias voltage: 5 V
Active bias current protection: 425 mA
Mixer input/output isolation: see mixer performance
Input IP3: +23 dBm
RF/IF input absolute maximum power: +15 dBm
Operating temperature -40 to +85
Storage temperature range -65 to +150
Dimensions: 88 mm x 38 mm x 68 mm
Weight: 7.4 oz
