Kit Passion SDR : Receiver & scanner HF, VHF &t UHF

Deluxe SDR Passion Pack V2

Deluxe SDR Passion Pack V2

Deluxe SDR Passion Pack V2

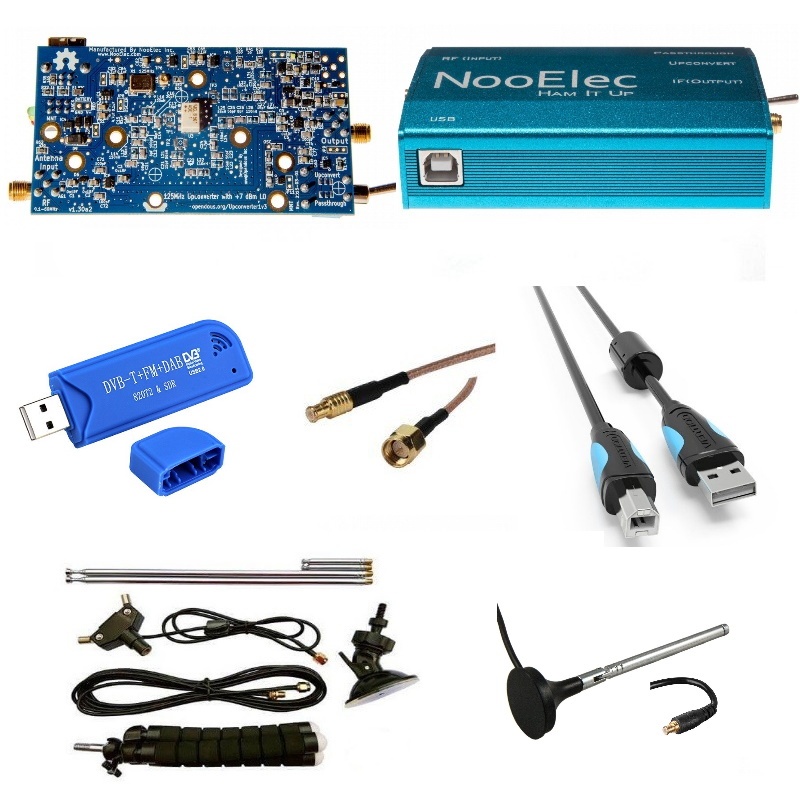

The new Deluxe Passion Radio SDR pack version include:

- 1 USB TNT SDR stick new release (RTL2832U + tuner R820T2)
- 1 converter HF SDR Ham it Up 1.3 (new release)
- 1 USB cable male A-B 2.0 of 1.4 meters
- 1 pigtail MCX male SMA male to connect the USB stick to the converter
- 1 protective case specially adapted to the converter Ham it Up 1.3 (blue)
- 1 adapter SMA Male <> Female UHF (SO239) to connect an external antenna to the converter
- 1 wide band telescopic and orientable antenna Diamond SRH789 or ANT500 (subject to availability), with SMA connector

The pack Passion Radio SDR Deluxe allows you to receive on your computer, all radio frequencies from 0.5 to 1766 MHz (without gap) and in all modes: AM, FM, SSB, CW and digital, through the use of a SDR software for Windows, Mac or Linux.

Availability: In stock, shipped from Europe

4 Items in stock

PACK-SDR-DELUXE-81

Online only

129,00 €

Add to cart

Instead of 141,85 €

Customers who bought this product also bought:

More info

Tuto configuration converter Ham it up & RTL-SDR

Pack content

  • Ham it Up 1.3 Converter HF
    Available Online only
    1 x Ham it Up 1.3 & 1.3+ Converter HF 0.5-50Mhz...

    Nooelec's Ham It Up v1.3 is an up-converter HF, equipped with the 125Mhz filter soldered on the PCB and allows to listen to all MF / HF bands from 0.5 to 50 Mhz, in all modes of modulation, from a RTL-SDR RTL2832U usb stick with R820T / R820T2 or E4000 tuner, or any VHF or SDR receiver covering 125Mhz-175Mhz. The Ham it up card is compatible with the HackRF One and can be used in transmission with an input power of up to 5mW. Optional: New...

    Nooelec's Ham It Up v1.3 is an up-converter HF, equipped with the 125Mhz filter...

    Nooelec's Ham It Up v1.3 is an up-converter HF, equipped with the 125Mhz filter soldered on the PCB and allows to listen to all MF / HF bands from 0.5 to 50 Mhz, in all modes of...

    49,90 €
  • Pigtail MCX Male to SMA Male
    Available
    1 x Pigtail MCX Male to SMA Male

    MCX Male to SMA Male RF Adapter. The MCX connector is compatible with the USB Dongle DVB-T RTL2832 +R820T & R820T2.RG 316 coaxial cable 50 ohms, about 15cm long.

    MCX Male to SMA Male RF Adapter. The MCX connector is compatible with the USB Dongle...

    MCX Male to SMA Male RF Adapter. The MCX connector is compatible with the USB Dongle DVB-T RTL2832 +R820T & R820T2.RG 316 coaxial cable 50 ohms, about 15cm long.

    5,90 €
  • Câble USB Male A Male B
    Available
    1 x USB 2.0 Male A-B power cable for Ham It Up

    This is USB 2.0 A Male to 4 Pin B Male is for use with the SDR converter Ham It Up, stand-alone or with Passion SDR V2 and Deluxe kits. Also available in 5 meters lenght. No suitable with SDRPlay nor printer, it's a power cable only, not a data transfert cable.

    This is USB 2.0 A Male to 4 Pin B Male is for use with the SDR converter Ham It Up,...

    This is USB 2.0 A Male to 4 Pin B Male is for use with the SDR converter Ham It Up, stand-alone or with Passion SDR V2 and Deluxe kits. Also available in 5 meters lenght. No...

    2,95 €
  • Adaptateur UHF Femelle SMA Male
    Available
    1 x Adaptateur UHF Femelle SMA Male

    Adaptateur SMA Male vers UHF Femele. Compatible avec la carte converter HF Ham It Up et le récepteur SDR FUNcube Dongle Pro+.

    Adaptateur SMA Male vers UHF Femele. Compatible avec la carte converter HF Ham It Up...

    Adaptateur SMA Male vers UHF Femele. Compatible avec la carte converter HF Ham It Up et le récepteur SDR FUNcube Dongle Pro+.

    5,50 €
  • USB DVB-T stick with RTL2832 for SDR
    Available Online only
    1 x RTL-SDR USB stick with R820T2

    This RTL-SDR USB stick features the Realtek RTL2832U chipset and the new R820T2 tuner specifically designed for use in SDR mode.The new R820T2 tuner offers better sensitivity (+ 2dB to 5dB) and a low noise compared to the previous R820T version.Used with a SDR software, this becomes a scanner, broadband receiver from 24 MHz to 1766 MHz (without gap) and all modes (AM, FM, SSB, CW, DATA, ADSB, DMR)!Package include : 1 Dongle TNT/SDR with 1...

    This RTL-SDR USB stick features the Realtek RTL2832U chipset and the new R820T2 tuner...

    This RTL-SDR USB stick features the Realtek RTL2832U chipset and the new R820T2 tuner specifically designed for use in SDR mode.The new R820T2 tuner offers better sensitivity (+...

    19,90 €
  • SMA-P VHF-UHF + RX SDR 100-900Mz
    Available
    1 x Diamond antenna SRH-789 SMA-M 95-1100Mz + TX...

    Dual band directional antenna Original Diamond SRH-789 with SMA Male connector, for receiving and transmitting on VHF-UHF bands (144/430 MHz) and reception on aviation bands 120/150/300/450/800 MHz (RX reception only). This antenna is particularly suitable for reception from 95Mhz to approximatly 1100Mhz and can be used with our Pack Radio SDR and the HackRF One. Convenient to use with its swiveling axis and telescopic antenna. Diamond...

    Dual band directional antenna Original Diamond SRH-789 with SMA Male connector, for...

    Dual band directional antenna Original Diamond SRH-789 with SMA Male connector, for receiving and transmitting on VHF-UHF bands (144/430 MHz) and reception on aviation bands...

    29,90 €
  • Case for Ham It Up 1.3
    Available Online only
    1 x Case for Nooelec Ham It Up 1.3 HF converter

    Provides an effective protection against impact and parasites for your converter HF SDR Ham It Up v1.3 only and also gives it a nice look. The enclosure is made of aluminum and laser engraved, with 2 cutouts for the SMA Female RF sockets, 1 cut-out for the USB connector and one for the switch of the converter SDR HF Ham It Up. Comes with: Aluminum case with two aluminum panels, assembly instructions. (Ham it up board is not included).

    Provides an effective protection against impact and parasites for your converter HF SDR...

    Provides an effective protection against impact and parasites for your converter HF SDR Ham It Up v1.3 only and also gives it a nice look. The enclosure is made of aluminum and...

    25,90 €
  • Mini magnetic antenna MCX
    Available
    1 x Mini magnetic SDR antenna MCX

    Mini magnetic antenna with MCX male connector for USB stick RTL-SDR, operating in reception only from 100MHz to 500Mhz or so. Frequency (reception only): 100-500Mhz (VHF-UHF) Connector: MCX male Antenna Length: 11.5 centimeters Cable length: 1 meter Gain: 0dBi Impedance: 50 Ohms Type Polarization: Vertical Cable: RG 174 2.6mm Support: Magnetic base Package includes: 1 VHF/UHF mini-antenna, magnetic base and cable with MCX male connector.

    Mini magnetic antenna with MCX male connector for USB stick RTL-SDR, operating in...

    Mini magnetic antenna with MCX male connector for USB stick RTL-SDR, operating in reception only from 100MHz to 500Mhz or so. Frequency (reception only): 100-500Mhz (VHF-UHF)...

    1,90 €

Download

Accessories

Comments

  • Summary
  • Write your review

    Deluxe SDR Passion Pack V2

    Deluxe SDR Passion Pack V2

    The new Deluxe Passion Radio SDR pack version include:

    - 1 USB TNT SDR stick new release (RTL2832U + tuner R820T2)
    - 1 converter HF SDR Ham it Up 1.3 (new release)
    - 1 USB cable male A-B 2.0 of 1.4 meters
    - 1 pigtail MCX male SMA male to connect the USB stick to the converter
    - 1 protective case specially adapted to the converter Ham it Up 1.3 (blue)
    - 1 adapter SMA Male <> Female UHF (SO239) to connect an external antenna to the converter
    - 1 wide band telescopic and orientable antenna Diamond SRH789 or ANT500 (subject to availability), with SMA connector

    The pack Passion Radio SDR Deluxe allows you to receive on your computer, all radio frequencies from 0.5 to 1766 MHz (without gap) and in all modes: AM, FM, SSB, CW and digital, through the use of a SDR software for Windows, Mac or Linux.

    Write your review

    • Product Name:Deluxe SDR Passion Pack V2
    • Product Reference: PACK-SDR-DELUXE-81
    • By Passion Radio
    • Price: 129,00
    • Product Width: 20.00 cm
    • Product Height: 10.00 cm
    • Product Depth: 20.00 cm
    • Product Weight: 0.30 kg
    • Description: The new Deluxe Passion Radio SDR pack version include: - 1 USB TNT SDR stick new release (RTL2832U + tuner R820T 2 ) - 1 converter HF SDR Ham it Up 1.3 ( new release ) - 1 USB cable male A-B 2.0 of 1.4 meters - 1 pigtail MCX male SMA male to connect the USB stick to the converter - 1 protective case specially adapted to the converter Ham it Up 1.3 (blue) - 1 adapter SMA Male <> Female UHF (SO239) to connect an external antenna to the converter - 1 wide band telescopic and orientable antenna Diamond SRH789 or ANT500 (subject to availability), with SMA connector The pack Passion Radio SDR Deluxe allows you to receive on your computer, all radio frequencies from 0.5 to 1766 MHz (without gap) and in all modes: AM, FM, SSB, CW and digital, through the use of a SDR software for Windows, Mac or Linux .
