2.4 Ghz 30W amplifier for QO-100 PowerBlast 30 E-REON

PowerBlast 30 2.4 Ghz 30W amplifier, LDMOS semiconductor, compatible for amateur radio activities on the QO-100 satellite.

Operates with a 32V power supply and an input power of 400 mW (26 dBm) for a gain of +18dB.

Supplied with: 2.4Ghz 30W PowerBlast30 E-REON amplifier.

This material is intended only for amateur radio or laboratory use on the 2.4 to 2.45 Ghz band.

More details

Download

Doc ampli 2.4 Ghz 30W

332.66k

Data sheet

Frequency range: 2400 - 2500 MHz
Rated input power: 400mW (26 dBm)
Maximum input power: 30 dBm (1W)
Max RF output power : 30 watts @ 32V
Impedance: 50 Ohms
Connector: SMA Female

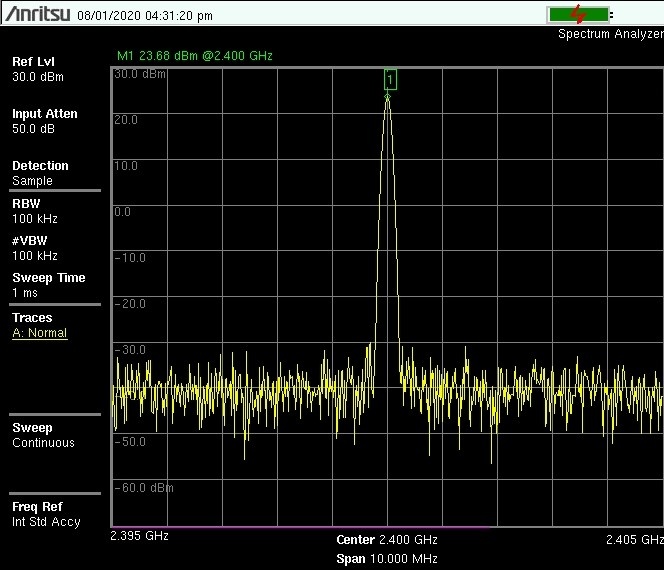

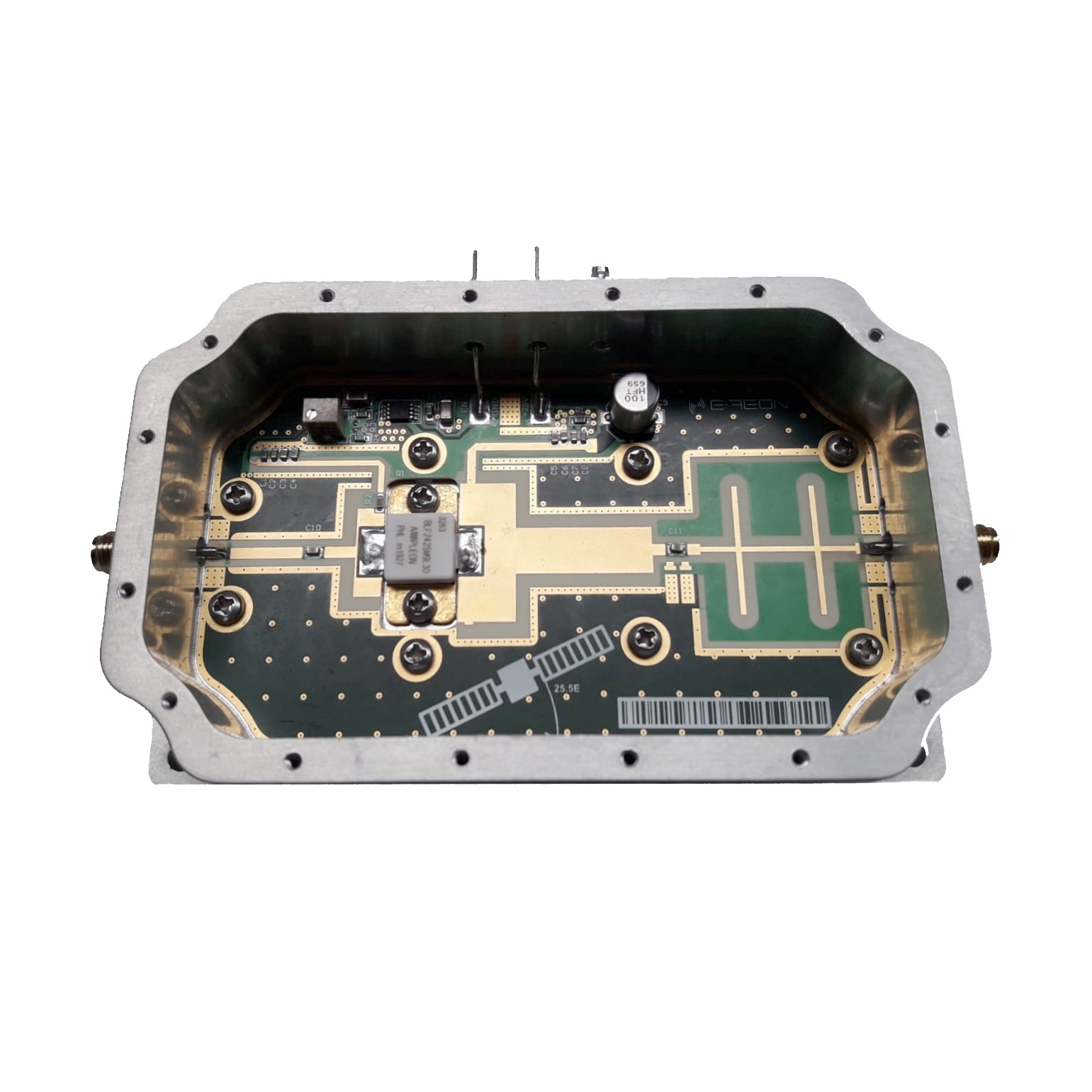

Integrated bandpass filter
Emission gain: +18dB
Power supply: 28V to 32V max.
Consumption: 1.5A @ 30W

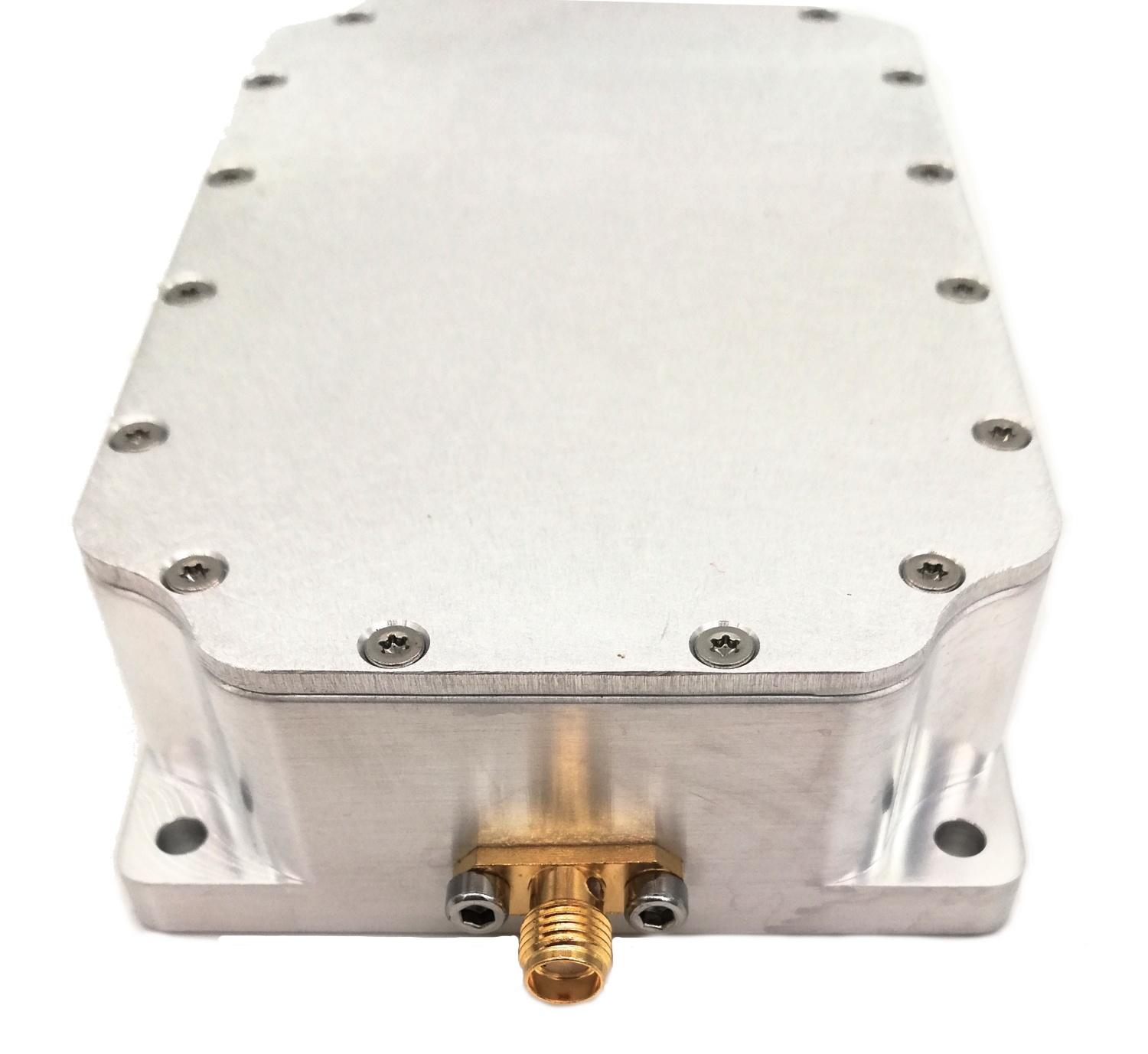

Aluminum housing
Weight: 224g
Dimensions: 105x65x25mm
2 years warranty*

* The warranty does not cover the PA and damage that may result from an assembly error, an incorrect adjustment of the antenna (ROS), a maximum input power not respected, a short circuit power supply or coaxial line and damage from electrostatic discharge.

The amplifier offers two pin terminals (for supply and control voltages) and a ground terminal.

Never exceed 32.5V or permanent damage may occur!

The control pin (EN) works like this:
- 0 to 1V "OFF state"
- 1V to Vdc "state ON"

This amplifier provides built-in over temperature protection.

It can be used without a heat sink, however we recommend adding a heat sink in the event that the operating temperature of the lower case exceeds 50°C.

This amplifier is intended for amateur radio or laboratory use only on the frequency band 2.4 to 2.45 Ghz (13cm).
